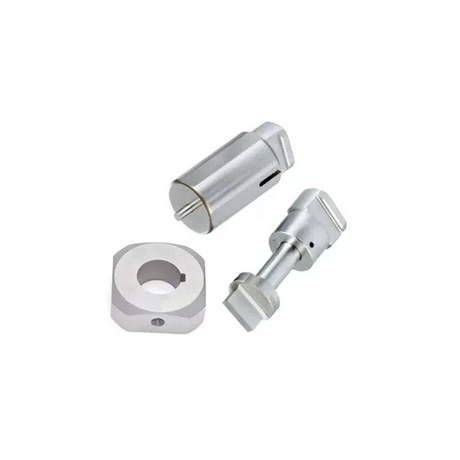

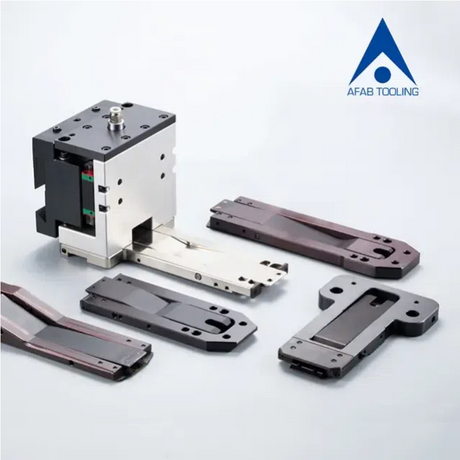

Sheet metal fabrication is an essential process in countless industries, from automotive to aerospace.1 At its core, this process involves shaping metal sheets into desired forms, and one of the most critical methods for this is punching.2 The punch and die are the primary tools used to create holes or cut shapes in sheet metal.3 However, to ensure quality, efficiency, and safety, it's absolutely essential to keep these tools sharp.
Why Sharpening is Crucial
Regularly sharpening the punch and die isn't just a suggestion—it's a critical maintenance task that directly impacts the quality of the final product and the efficiency of the entire operation.6
1. Improved Product Quality
A sharp punch and die create a clean, precise cut. Dull tools, on the other hand, tear and deform the metal rather than shearing it cleanly. This can lead to several quality issues:
· Burrs: A burr is a raised, rough edge left on the punched metal.7 These burrs can be sharp and dangerous, requiring extra time and effort for secondary deburring operations.8
· Dimensional Inaccuracy: Dull tools can cause the metal to distort, leading to holes or shapes that are not the correct size or are out of tolerance.9
· Cracking and Warping: The excessive force required by dull tools can cause stress on the sheet metal, leading to cracking or warping of the workpiece.
2. Extended Tool Life
Dull tools require more force to cut through the material, which puts greater stress on the punch and die themselves. This increased stress causes accelerated wear, chipping, and cracking of the tool's cutting edges.10 By sharpening the tools regularly, you remove a small amount of material to restore the sharp edge, which significantly extends their overall lifespan.11 This saves money on replacement costs and reduces machine downtime.12
3. Increased Efficiency and Reduced Energy Consumption
When tools are sharp, they operate more efficiently. The press requires less force to make a clean cut, which means the punching process is faster and smoother. This not only increases production speed but also reduces the amount of energy consumed by the press.13 The lower force also translates to less vibration and noise, creating a better working environment.
4. Enhanced Safety
As mentioned, dull tools produce burrs and sharp edges that can be a safety hazard to workers handling the parts. Furthermore, the excessive force required by dull tools can lead to unforeseen tool failure, which could potentially cause injury to the operator. A sharp and well-maintained punch and die set is a safer set.
The Sharpening Process

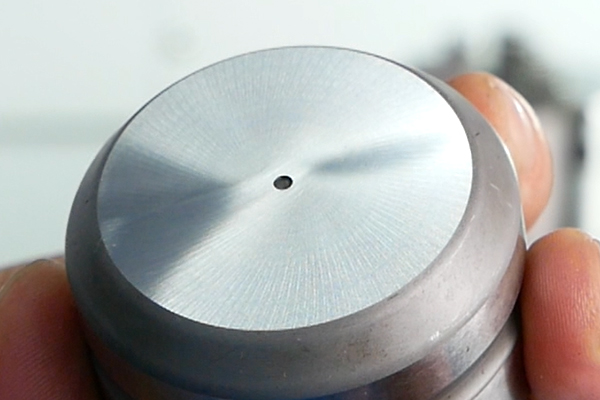

The process of sharpening a punch and die involves grinding a very small amount of material from the cutting surfaces.14 This is typically done with a surface grinder. The goal is to restore the original angle and sharpness of the cutting edge without altering the overall geometry of the tool.
Best Practices:
· Regular Inspections: Tools should be inspected regularly for signs of wear, such as a rounded cutting edge or burrs on the workpiece.15
· Correct Grinding: The sharpening must be done by a skilled technician using the correct grinding wheel and coolant to prevent overheating, which can compromise the hardness of the tool steel.
· Proper Clearance: After sharpening, it's crucial to ensure the correct clearance—the small gap between the punch and the die—is maintained.16 The right clearance is vital for a clean cut and is dependent on the type and thickness of the material being punched.17
In conclusion, neglecting the sharpening of a punch and die in sheet fabrication is a costly mistake. It leads to poor product quality, higher production costs, and potential safety risks. Investing in a regular sharpening and maintenance program is an investment in the quality, efficiency, and longevity of the entire fabrication process.
