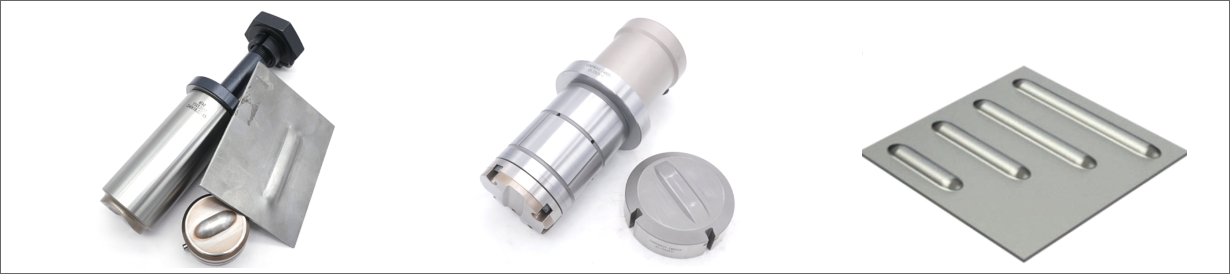

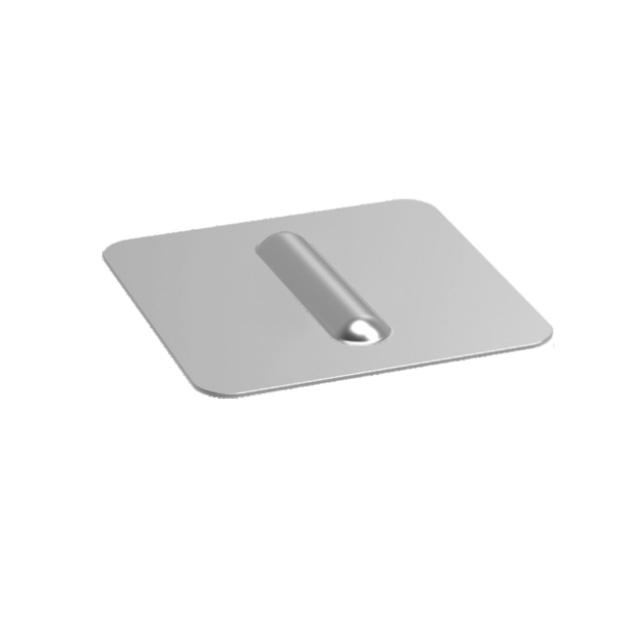

The continous emboss also calls continous bead/rib or nibbling/progressive emboss/bead.
designed to create stiffening ribs and decorative beads in sheet metal parts without requiring secondary operations. This tooling is particularly useful for applications where increased rigidity and strength are needed, such as in large unsupported panels. Continuous rib tooling can also be used to create decorative elements, reducing the need for additional processes like welding or forming on a brake press
Formdown not recommaned.

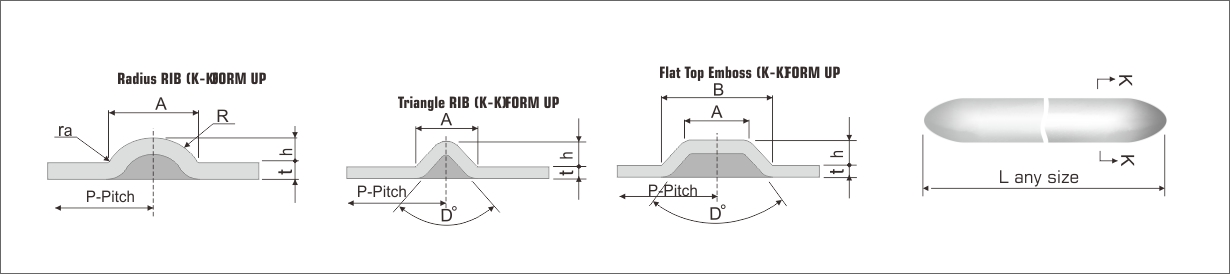

Radius top,Triangle Rib,Flat top optional.
Machine programme control the length by nibbling punch
Longer,more wide emboss cause sheet metal more distortion
A.B.C.D.E station emboss is supplied as customer request.
Application Details
1.Stiffening Rib Mode:
Forms sheet metal to create ribs that stiffen the material, reducing flex and allowing for thinner sheet metal usage without compromising strength.
Eliminates the need for secondary operations like brake pressing or welding, saving time and reducing costs.
2.Offset Mode:
Forms sheet metal to create offset forms anywhere on the sheet, useful for creating flush panel joints.
Can be used to create embosses that exceed the normal forming capacity of the punch press, further expanding design possibilities
