Tooling carbinet-storage made by sheet metal.
An ideal for use in manufacturing environments where tooling needs to be stored safely and accessed quickly. They are particularly useful for operations involving turret punch presses and press brakes, where a variety of tools are frequently used

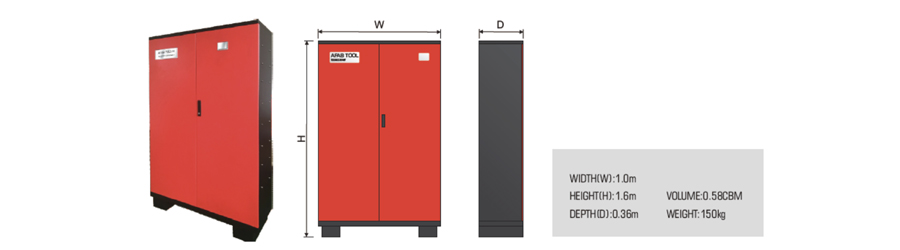

Storage dimenstion: Width 1m,Height 1.6m,Depth 0.36m

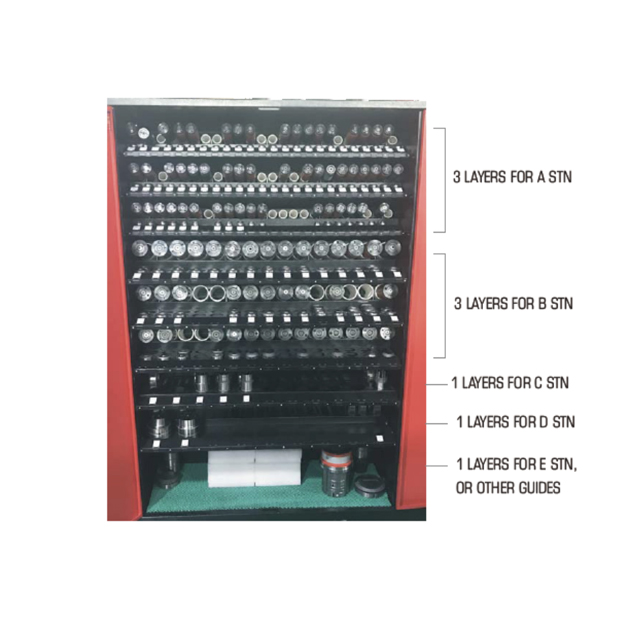

Big capacity for punch tooling.

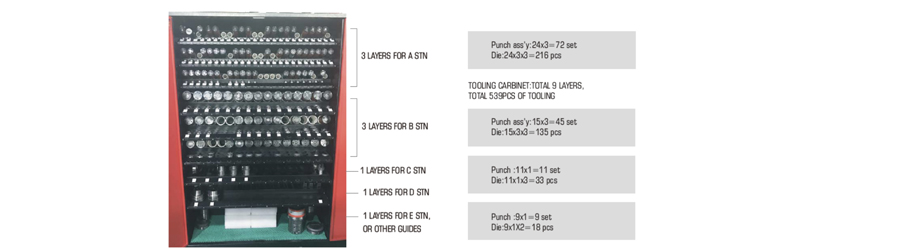

A STN Punch assembly 72 Sets, die 216 pcs
B STN Punch assembly 45 Sets, die 135 pcs
C STN 11 Set,Die 33pcs
A tooling cabinet is a specialized, heavy-duty storage system designed to organize, protect, and provide ergonomic access to the expensive and precision-ground tooling used in CNC turret punch presses (like Thick Turret, Amada, or TRUMPF styles).
This type of cabinet is essential for maintaining tool accuracy and maximizing machine uptime (green light time) by minimizing search and changeover time.
Application and Shop Floor Best Practices
A well-utilized tooling cabinet is central to Lean Manufacturing (5S) principles in a sheet metal shop:
Organization (Seiri, Seiton): Tools are sorted, identified, and kept in a standardized location. Many shops use color-coding or clear labels on the drawers and inserts to link tools directly to setup sheets and NC programs.
Protection: Tooling is the largest recurring cost in a punch press operation. Storing them in a dedicated, enclosed cabinet protects the investment and preserves the tool's original accuracy and grind life.
Efficiency: By having pre-kitted tools organized by job or by station size right next to the machine (when using mobile carts), machine setup time is drastically reduced. Time spent searching for tools is eliminated, maximizing the machine's "green light" production time.
Grind Life Management: Organized storage makes it easier to track when a tool needs sharpening and to manage the inventory of tools that have been sharpened versus those that are new.
