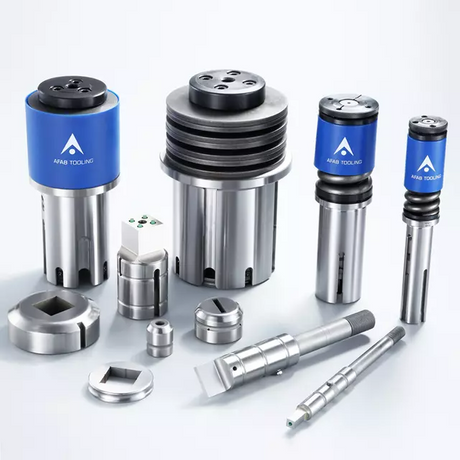

In the competitive landscape of sheet metal fabrication, the demands for precision stamping, part quality consistency, and maximized tool longevity are more critical than ever. Fabricators are constantly seeking technological advantages to reduce downtime, minimize scrap, and drive down per-part costs. For users of thick turret punch presses, the tooling selection is the single most important factor influencing these metrics. This is where Thick Turret Fully Guided Tooling emerges as the definitive solution, representing a significant evolution over standard, partially-guided systems.
Our fully guided tooling system is engineered from the ground up to address the fundamental challenges of high-speed, high-force punching operations, specifically the critical issue of maintaining impeccable punch-die alignment throughout the entire stroke. By enveloping the punch in a comprehensive guiding structure, we effectively eliminate the lateral deflection and tipping that lead to premature wear and inconsistent hole quality.
The core innovation of Fully Guided Tooling lies in its commitment to securing the punch's alignment with the die before, during, and after the cutting action. Unlike conventional tooling that relies on clearances within the stripper and the punch holder to guide the punch—which often allows for slight but damaging lateral movement—our system incorporates a precision-machined guide component that maintains near-zero clearance with the punch body.
The fully guided design translates directly into superior punch stability under extreme load. When a punch penetrates the sheet metal, the unbalanced radial forces are immense. In a standard setup, these forces can cause the punch tip to shift, resulting in:
Non-uniform shear: Leading to burrs, slugs that stick in the die, and inconsistent hole diameter.
Lateral rubbing: Causing excessive and asymmetrical tool wear on the punch flanks and the die walls.
Our fully guided solution counteracts these forces by providing robust, full-length lateral support. This maximum guidance for thick turret operation ensures that the punch descends perfectly perpendicular to the die surface, drastically reducing frictional wear. This critical feature is the bedrock for achieving extended tooling life and maximizing the intervals between costly regrinds.
The most profound impact of fully guided punch and die systems is the resultant stamping accuracy. Precision is a non-negotiable requirement for industries ranging from aerospace and medical devices to automotive manufacturing. The ability to hold tight tolerances, especially on materials like stainless steel or high-strength low-alloy (HSLA) steels, directly depends on the consistency of the tool gap.
By ensuring the punch and die are perfectly concentric and parallel, the system eliminates the "slop" or misalignment that causes oversized or tapered holes. This meticulous control over the cutting forces allows the fabricator to consistently produce parts with a clean shear fracture, minimal deformation, and exceptionally smooth slug ejection. This level of quality is vital for processes requiring subsequent assembly, such as fastening or welding, where even minor variations in hole location or size can compromise the final product integrity.
Our precision fully guided tooling is not just a replacement; it is an upgrade to your entire punching operation. Every component is manufactured using premium, high-speed tool steels and proprietary heat treatment processes to ensure peak performance and resilience.
Integrated Guide Bushing Technology: The heart of the system is the precision-ground guide bushing, which maintains extremely tight tolerance with the punch holder. This component ensures the punch only moves axially, eliminating radial play.
Segmented and Optimized Strippers: Our stripper plates are designed to engage the sheet metal immediately after the punch tip, providing superior material holding force. This prevents sheet lift and fluttering, which is crucial for achieving consistent stamping precision with thick turret tools, particularly with thinner gauge materials.
Micro-Lubrication Channels: Select tooling features internal pathways designed to distribute specialized lubricants, which further minimizes friction and heat buildup during continuous, high-volume production runs. This is a subtle yet significant factor in achieving punch longevity in demanding applications.
Quick-Change Functionality: While offering maximum guidance, the system retains the quick tool change capability expected in modern fabrication shops. Reduced setup time is critical for maximizing machine up-time and operational efficiency.
Investing in high-performance fully guided tooling is a strategic decision that offers a compelling return on investment (ROI) through multiple avenues:
Because the severe rubbing and asymmetrical wear characteristic of standard tooling is mitigated, our fully guided tools require regrinding less often. This drastically reduces the consumption rate of costly tools and the associated labor for grinding and adjustment. The extended service life of thick turret tools translates directly into thousands of dollars in savings annually.
The enhanced accuracy and stability virtually eliminate tooling-related defects, such as burrs, off-center holes, or torn edges. A lower scrap rate means less wasted material and fewer parts that require manual rework or disposal, bolstering the profitability of high-volume jobs.
With fewer tool changes, less frequent machine adjustments due to tool wear, and a reduction in unscheduled maintenance caused by premature tool failure, the overall machine utilization rate improves dramatically. Maximized uptime is the ultimate driver of throughput and manufacturing competitiveness.
As modern manufacturing incorporates more complex and demanding materials—including highly abrasive galvanized sheets, specialty stainless alloys, and difficult-to-shear thick aluminum plates—the need for reliable thick turret punch press tooling with superior guidance becomes indispensable. Our fully guided system is designed to handle these challenges, delivering consistent results where traditional tooling often fails prematurely. This capability is key for fabricators seeking to expand their material handling capacity and take on more lucrative, specialized contracts.
Whether your primary goal is to achieve the highest level of sheet metal hole precision or to dramatically extend the life of your expensive cutting tools, our Fully Guided Tooling for Thick Turret Presses provides the robust, reliable foundation you need to secure a competitive edge in modern fabrication.
Stop compromising on quality and enduring preventable downtime. Upgrading to our Thick Turret Fully Guided Tooling is the most direct path to improving your part quality, extending your maintenance intervals, and significantly boosting your bottom line. We provide specialized tooling solutions tailored to the rigorous demands of high-production environments.
