The story of the CNC Punching Machine is one of steady innovation, reshaping how sheet metal is fabricated and pushing the boundaries of precision, speed, and flexibility. What began as mechanical presses decades ago has evolved into automated, software-driven systems capable of integrating punching with laser cutting. For manufacturers and engineers, these developments matter because they directly influence throughput, part complexity, and tooling design. AFAB, as a trusted provider of punching and bending tools, has grown alongside this technological evolution, offering solutions that help customers fully utilize modern machine capabilities.
The earliest machines used for punching were purely mechanical. Heavy frames and cams generated the force required to pierce sheet metal, but accuracy was limited, and tool changes were slow. By the 1960s, basic numerical control (NC) ideas began to appear. Early NC systems introduced programmed movements, giving engineers their first taste of automation. Although crude, these innovations laid the foundation for today’s CNC Punching Machines.
The next major leap arrived in the 1970s when commercial CNC punch presses became available. Early versions relied on stepper motors and improved servo drives, enabling tighter control of ram motion and sheet positioning. Fabricators gained the ability to produce repeatable parts at scale, while software-controlled patterns reduced the need for manual setups. By the 1990s, CNC systems had become standard across much of the industry, and machine reliability improved dramatically.
From the early 2000s onward, punching machines entered a new era. Automation features such as automatic tool changers and sheet handling systems reduced downtime and labor requirements. The introduction of punch-laser hybrid machines allowed fabricators to combine the efficiency of punching with the flexibility of laser cutting. This combination gave manufacturers new options for complex geometries, reduced secondary operations, and opened the door to smarter, integrated production cells.
One of the most significant advances in CNC Punching Machine design was the adoption of servo-driven rams. Traditional hydraulic systems provided power but were less precise and required more maintenance. Servo technology offered higher accuracy, faster cycle times, and better energy efficiency. With precise control over ram speed and force, manufacturers could achieve cleaner holes, reduced burrs, and consistent quality across high-volume runs.
Downtime during tool changes has long been a bottleneck in punching operations. Automatic tool changers solved this by enabling machines to switch tools quickly without operator intervention. Alongside this, multitools and cartridge systems allowed multiple punch shapes to be housed within a single station. These advancements boosted machine productivity and gave fabricators greater flexibility to handle jobs with varying part designs.
Hardware alone could not deliver the gains customers demanded. Modern computer-aided manufacturing (CAM) software transformed how punching strategies were planned and executed. Advanced nesting algorithms reduced material waste, while optimized punching sequences shortened cycle times. Integration with enterprise resource planning (ERP) systems and digital workflows further enhanced efficiency, giving managers better control over scheduling and machine utilization.

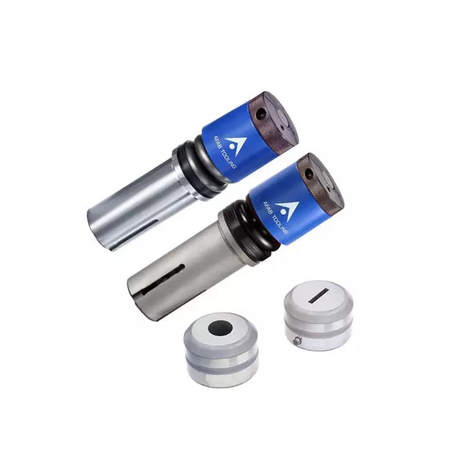

Tooling design plays a central role in CNC Punching Machine performance. Thin turret systems, popular in Europe and Asia, allow for higher tooling density and compact machine layouts. Thick turret systems, common in North America, provide durability and longer tool life. Each has advantages depending on production priorities. AFAB provides solutions for both, ensuring customers can match tooling systems to their machine platforms and applications.
MultiTool concepts have dramatically expanded the capabilities of a single turret station. By fitting several punch shapes into one holder, MultiTools reduce the number of stations required and increase design flexibility. Two-for-one systems and other productivity-focused innovations let engineers add complexity to part designs without slowing down throughput. This aligns perfectly with the needs of modern fabrication shops producing diverse product lines.

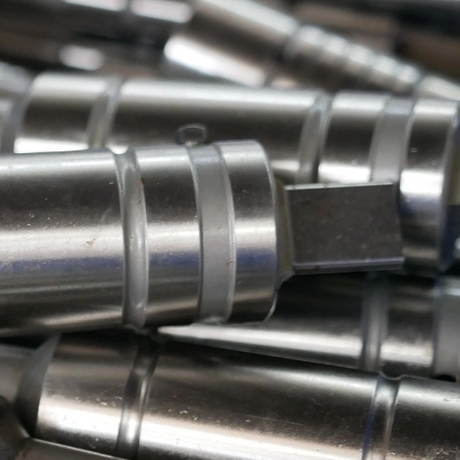

Another key driver of efficiency has been the development of advanced tool steels and coatings. Harder materials and wear-resistant coatings extend grind life, reduce downtime for sharpening, and deliver consistent punching quality. AFAB’s product line includes tools engineered with these modern materials, helping manufacturers maximize uptime and minimize replacement costs over the long term.
Punch-laser hybrid machines represent one of the most exciting developments in sheet metal fabrication. These systems combine the speed and efficiency of punching for holes and standard features with the flexibility of laser cutting for intricate geometries. This dual capability allows manufacturers to process a wider range of part designs in a single setup.
For hybrids to work seamlessly, advanced software and sensors are essential. Registration systems ensure that punched and laser-cut features align perfectly. Nesting programs balance the two processes, while machine sensors monitor material thickness, tool wear, and cutting accuracy. Together, these technologies provide fabricators with confidence that hybrid systems can deliver both speed and precision.
Punch-laser hybrids are particularly valuable in industries that require small- to medium-batch production with frequent design changes. They reduce the need for secondary operations such as deburring or additional machining, saving both time and cost. Applications range from custom enclosures in the electronics industry to complex panels used in transportation and medical equipment.
One of the most important outcomes of these technological advances is faster changeovers. Automated tooling, servo drives, and smarter software all reduce the time needed to switch from one job to another. At the same time, engineers have greater freedom to design parts with complex features that would have been impractical or costly with earlier technologies.

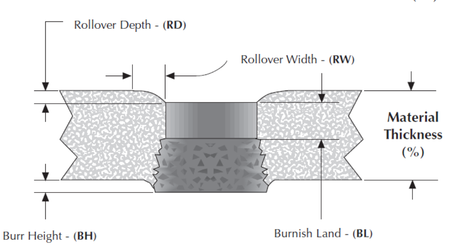

Tooling has a direct impact on scrap rates, burr formation, and surface finish. High-quality tools with advanced coatings produce cleaner cuts and minimize rework. By choosing the right tooling system for a CNC Punching Machine, fabricators can reduce waste and improve overall part quality, reinforcing the value of precision tooling as a cornerstone of efficient production.
The evolution of the CNC Punching Machine reflects the manufacturing industry’s ongoing pursuit of speed, accuracy, and flexibility. From mechanical presses to today’s hybrid punch-laser systems, every advancement has shaped how fabricators approach production challenges. For buyers and engineers, the practical takeaway is clear: evaluate trade-offs between throughput and flexibility, and prioritize modern tooling and software that align with your production volume and part complexity. AFAB stands ready to support these decisions with advanced punching tools, turret systems, and solutions that help your sheet metal work better. To explore how our products can enhance your production, contact us today.
