Product Advantage
Compatible with CNC Punch Press Machines: The Basic Style Thick Turret Tooling is designed for use with CNC punch press machines, particularly for thick turret punch machines, delivering precise and efficient punching operations.
Multi-Station Compatibility: The tooling is compatible with all stations (A, B, C, D, E) on thick turret punch machines, providing versatility across various production needs.
Punch Assembly for Upper Turret, Die for Lower Turret: The punch assembly is installed on the upper turret, while the die is placed on the lower turret, ensuring precise alignment and efficient punching.
Sheet Metal Movement in the Center of the Turret: Sheet metal moves through the center of the turret, allowing for accurate and consistent punching throughout the process.
CNC Control for Punching Speed and Sheet Metal Positioning: The CNC control system manages the punching speed and sheet metal positioning, ensuring precision and flexibility during production.
Technical Parameters
| Length for punch assembly | 209.5mm | Guide material | 40Cr |
| Punch body length | 207.5mm | Guide HRC | 46 DEG |
| Punch body material | high speed steel/M2 | Die height | 30mm |
| Punch body HRC | 60-64 DEG | Die material | D2 |
| Punch surface finish | 0.8μm Ra | Die HRC | 58-60 DEG |
| Punch Guide concentricity | +-0.015mm | Punch grinding life | 2mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.5mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN-optional |
Product Uses

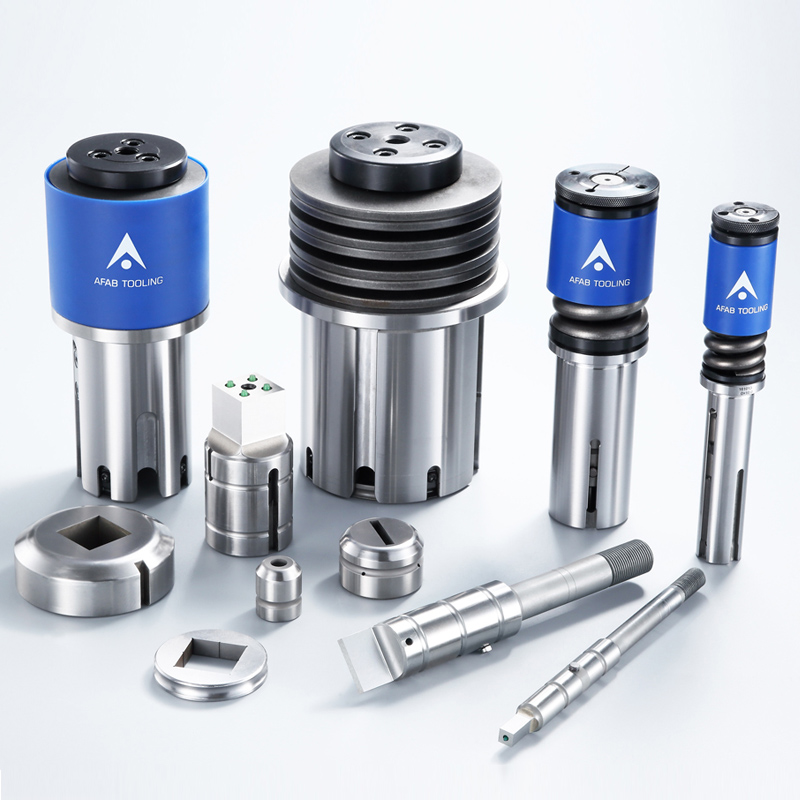

OEM Compatible Design: The Basic Style Thick Turret Tooling for AMADA 85 from AFAB is fully compatible with OEM systems, ensuring seamless integration with leading CNC turret punch presses such as AMADA, Primapower, and LVD. This compatibility guarantees a hassle-free upgrade or replacement for your existing tooling, saving time and cost.
Cost-Effective Tooling Solution: Designed as an economic tooling option, this punch tool offers significant cost savings without compromising on performance. It is ideal for businesses looking to minimize investment while maximizing efficiency in high-volume production environments.
Premium Punch Precision: Features long punches with high precision, achieving an impressive hardness range of HRC 60-64. The 207.5mm punch length ensures optimal cutting performance, delivering high accuracy with every operation, reducing the need for rework and improving production consistency.
Flexible Punch Head Design: Equipped with round punch heads that include two thread holes for easy rotation in both 1/2" A and 1-1/4" B stations. This flexible design allows users to efficiently manage tool wear and extend the lifespan of the tooling, minimizing downtime during setup changes.
Durable Hardened Guides for Extended Service Life: The tooling is equipped with hardened guides that reduce friction, enhancing tool longevity and ensuring smoother operation. Available in round guides with a single slot and shape guides with 0-90 degree slots, these guides provide exceptional durability and superior precision, minimizing the risk of tool wear and breakdowns.
Regrindable Punch and Die: The punch body has a regrinding life of 2.0mm, and the die regrinds up to 2.5mm, ensuring long-term usability. This feature significantly extends the tool’s service life, providing a cost-effective and eco-friendly solution for businesses that require frequent tool maintenance and regrinding.
Product Operate Guide
1. Ensure the tool is properly mounted on the upper or lower seat of the punch press.
2. Adjust the punch press settings to suit the desired punching accuracy.
3. Start the machine and monitor the punching process to ensure that the tool is running smoothly.
4. After use, check the tool for wear and perform appropriate grinding if necessary.
