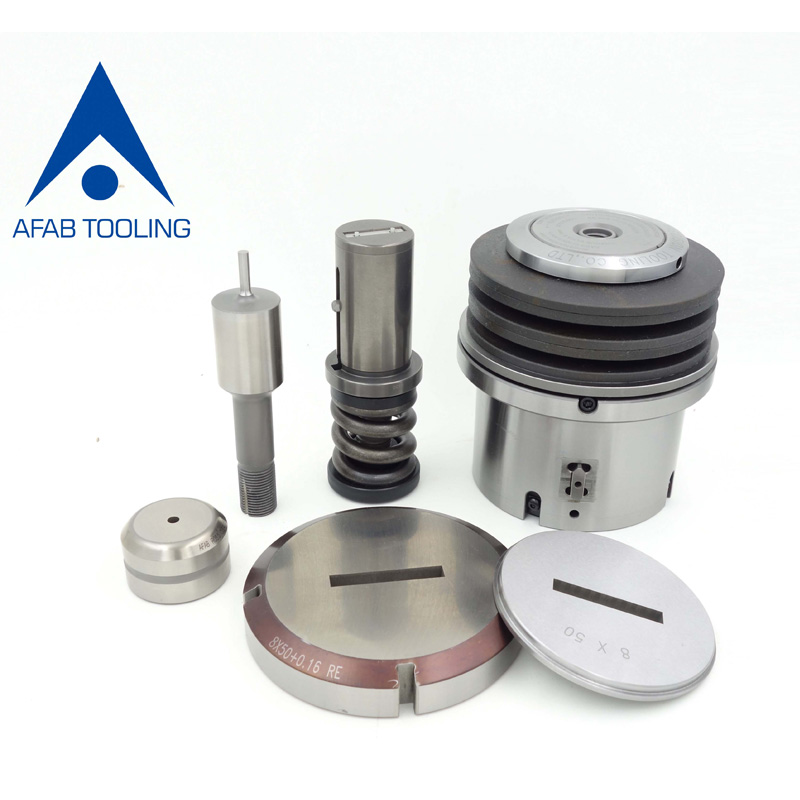

Strippit Thin Turret B Station

STRIPPIT THIN TURRET PUNCHING TOOL：

• Tooling station: 1/2" Dropin type max size 12.75mm,5/8" Dropin type max size 15.875mm,B 1-1/4" station

•                             max size 31.75mm. D station 3 1/2" 88.9mm max size.

• High Resistance Surface: Material has excellent hardness and toughness, extending punch intervals and tool life.


• Precise positioning: The punch is equipped with hardened keys to ensure precise positioning and improve part quality.


• Reduces friction and sticking: 1/4 degree rear taper and nearly polished punch side design reduces friction,

•                                                     eliminates sticking and maximizes punch life.


• Hardened guide: Each guide is equipped with a hardened steel punch guide to ensure tight punch alignment.


Strippit B station with S80 type and S90 type

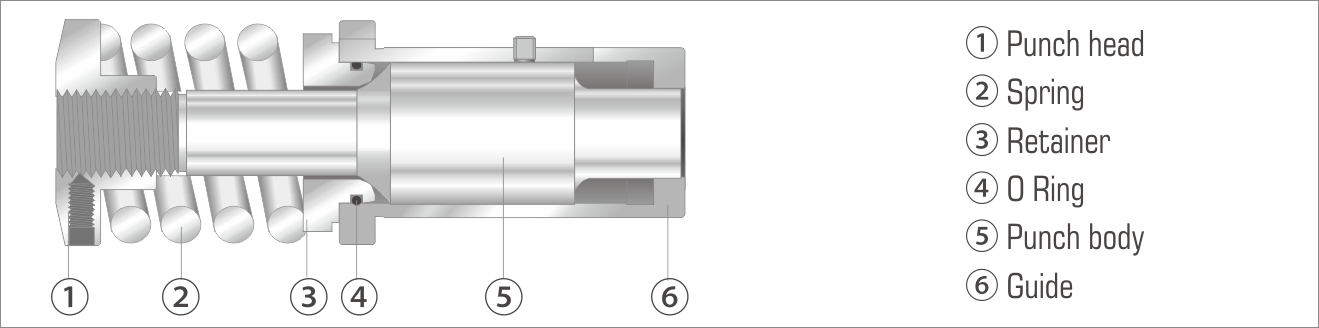

S80 type tooling is basic economic series tool which is more reliable,very simple.  Includes parts: punch head,Spring

Retainer,O ring,Punch body,Guide.  Shape and size on punch body and guide.

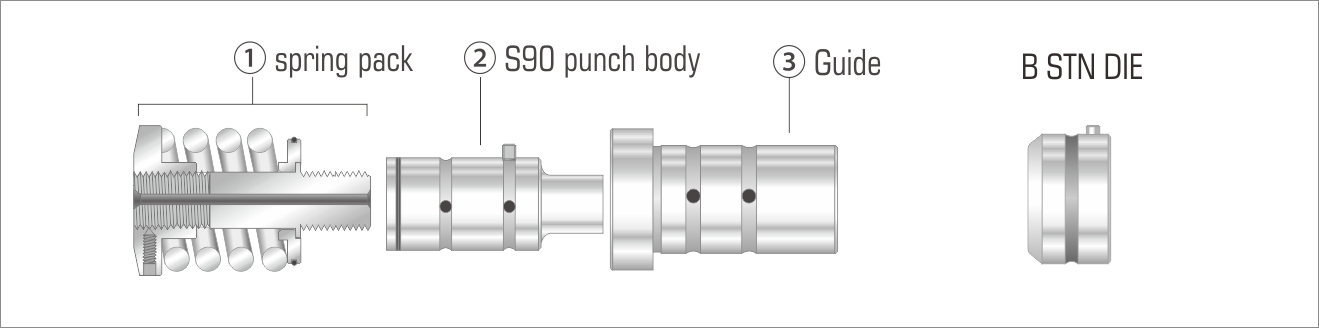

S90 type is high performance system

1. Punch body with longer sharpening life up to 6mm.

2. Quick length adjusting for punch body.

3. No need any tool to change punch length

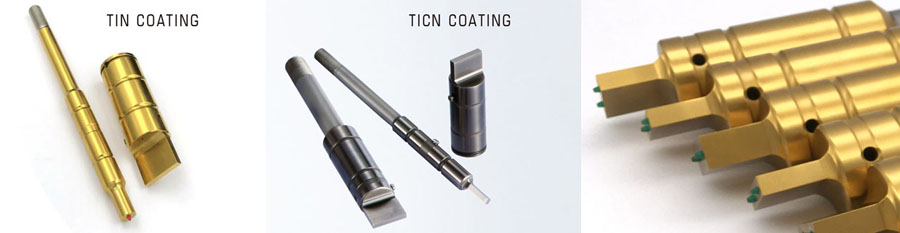

Punch hole with eight standard shapes.  TICN available.

Punch tip optional as single shear,rooftop...    Die type could be slugfree,slughugger
