Product Advantage

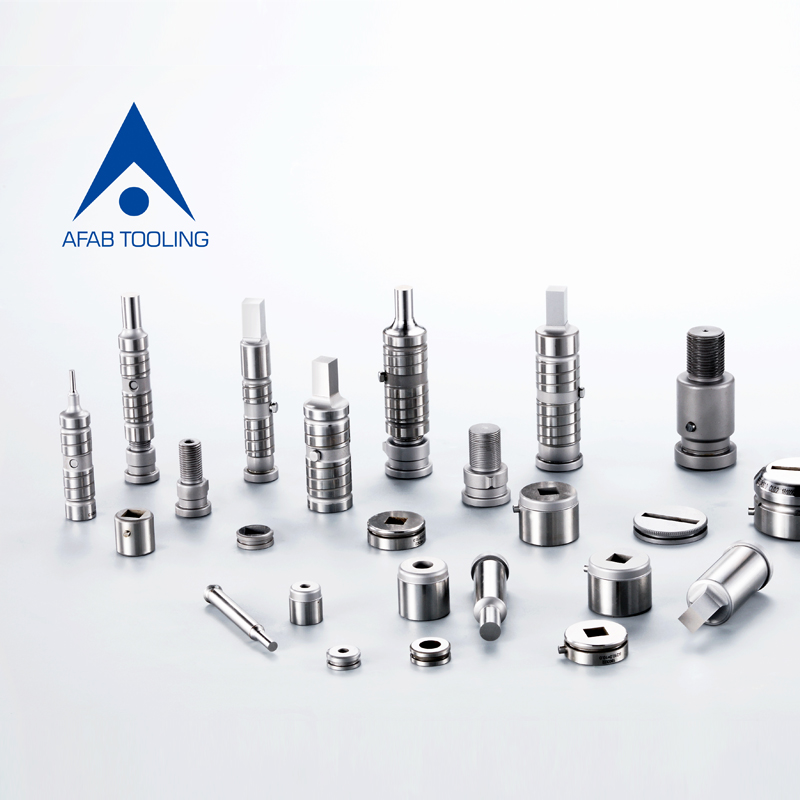

Compatibility: Multi-Tool system can be used for thick turret CNC punch presses and is fully compatible with the existing stock of tooling spare parts from manufacturers such as WILSON, MATE, EUROMAC, AFAB etc., which makes it more convenient to use.
Improve thick turret utilization: The application of multi-tooling increases the number of tooling that can be called up, effectively improving turret utilization.
Reduce the time to change the mold: The use of multi-Tool can be a one-time will need a variety of specifications of the tooling is equipped with a complete set, reducing the trouble of frequent tooling changes, saving the processing process of the stop time.
Expanding the scope of processing technology: Multi-tool has the advantages of expanding the scope of machine tool processing technology and increasing the number of tooling that can be loaded on the machine tool.
Compact structure: Multi-tool structure is compact, the upper and lower holder need to be processed synchronously, and its processing precision and clearance requirements are very high.

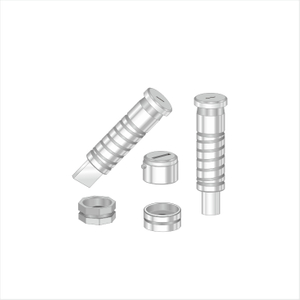

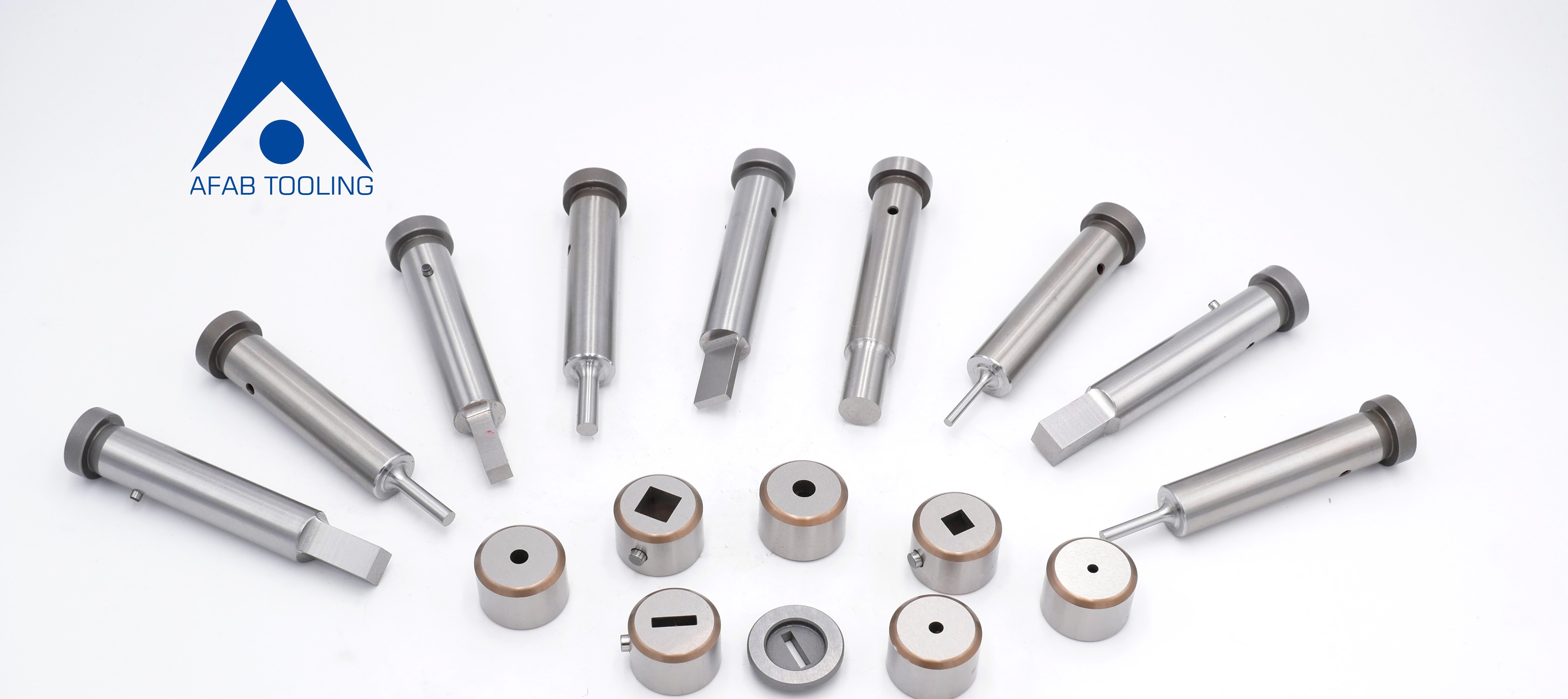

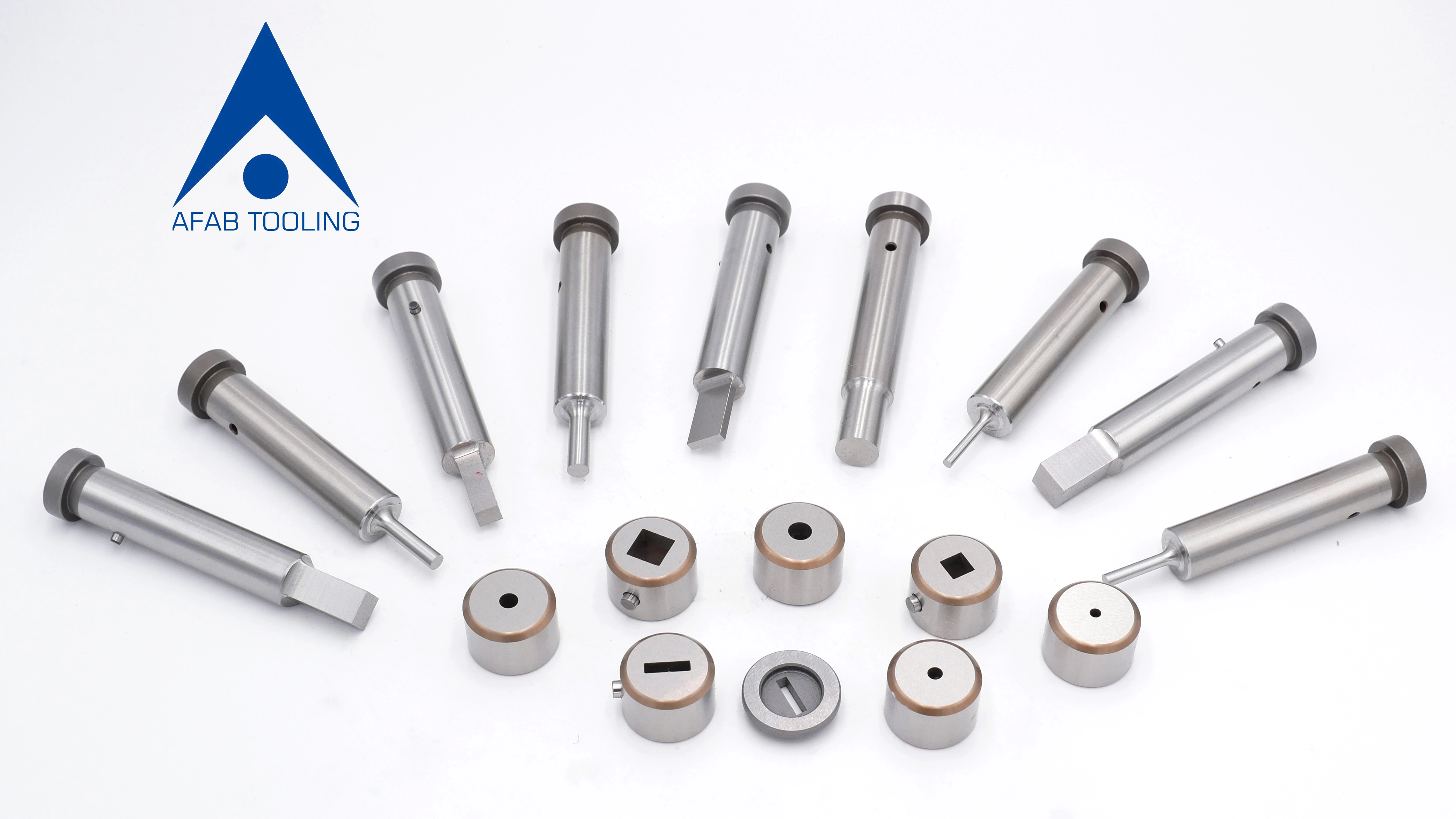

Integration of multiple cores: Integrating up to ten different insert and die in a single holder shortens the equipping time and mold change time, and improves the productivity.
Reduce the waste of machine tool space: The traditional CNC turret punch press has a single stamping die structure that takes up a lot of space, while the multi-tool inserts can reduce the waste of machine tool space.
Improve mold guidance: The rejection plate of multi-tool is hardened to improve wear resistance, and the gap between the punch core and the rejection plate is designed to be a small gap, which improves the guidance of the die core.
Product Uses
Increase the production capacity of thick turret CNC punch presses: A Multi-Tool system allows sheet metal manufacturers to significantly increase the production capacity of their thick turret CNC punch presses.
Sheet metal processing industry: The application of multi-tool increases the number of callable molds, effectively reducing worker labor intensity and improving productivity.The use of multi-tool can fully equip the required tooling of various specifications at one time, saving pause time during the processing process.Utilize multi-tool to realize the application of special forming to punching shutters, knock-out holes, card guides, Emboss and other special functions on the turret punch machine,Euromac Press OEM Multi-Tools take Advantage of XMTE4, XMTE6 and XMTE10 Multi-Mold Punch Holder Tooling Systems
Product Operate Guide
1. Ensure the tool is properly mounted on the upper or lower seat of the punch press.
2. Adjust the punch press settings to suit the desired punching accuracy.
3. Start the machine and monitor the punching process to ensure that the tool is running smoothly.
4. After use, check the tool for wear and perform appropriate grinding if necessary.
