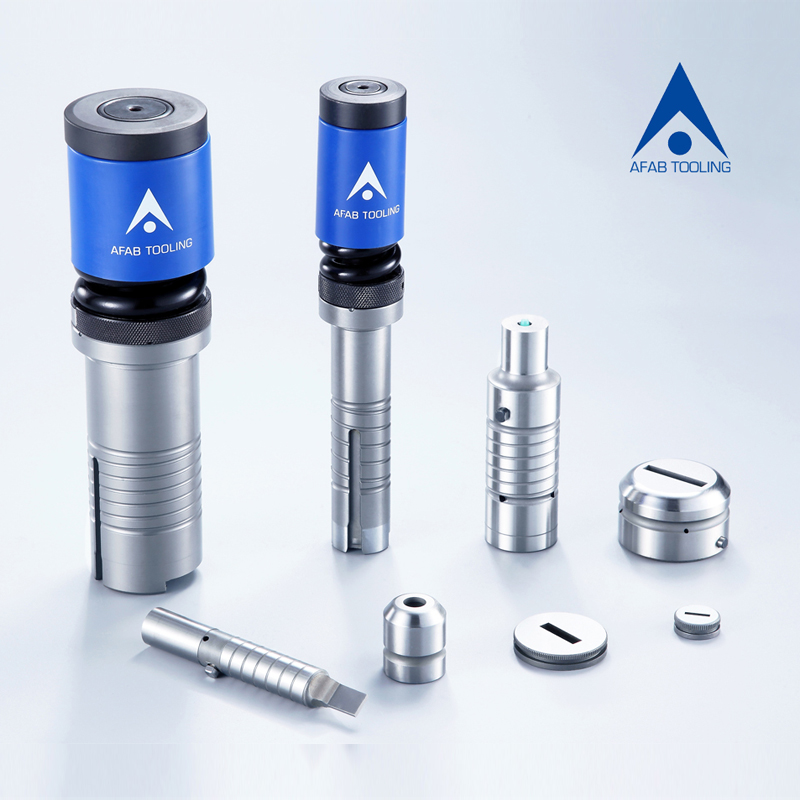

Our FAB Ultra Type Thick Turret Tooling stands out as a top-of-the-line option in the market for metalworking professionals. It has been developed with a deep understanding of the challenges faced in processing thick metal sheets. The tooling features a unique design that combines strength and flexibility. The hardened tool steel used in its construction provides excellent cutting performance, while the precision-ground surfaces ensure smooth operation. The FAB Ultra Type Thick Turret Tooling is designed to work in harmony with modern turret punch press systems, offering enhanced productivity and reduced setup times.
1. Advanced Material Technology: Incorporating the latest advancements in material science, this tooling offers improved performance compared to traditional options. The materials used have enhanced hardness and toughness, allowing for longer tool life and better resistance to cracking.
2. Optimized Geometry: The carefully engineered geometry of the tooling ensures optimal force distribution during the punching process. This results in reduced stress on the tool and the material being processed, leading to higher quality outcomes.
3. Quick Change System: The FAB Ultra Type Thick Turret Tooling is equipped with a quick change system that enables rapid tool replacement. This feature significantly improves production efficiency, as it minimizes the time spent on tool setup and changeovers.
4. Customization Options: We offer a range of customization options to meet the specific needs of our customers. Whether it's a special size, shape, or coating, we can tailor the tooling to suit your unique requirements.
1. Construction Industry: In construction, this tooling is used for fabricating metal components for buildings, bridges, and infrastructure projects. Its ability to handle thick structural steel plates is invaluable in ensuring the strength and stability of these structures.
2. Heavy Equipment Manufacturing: For the production of heavy machinery such as cranes, bulldozers, and excavators, the FAB Ultra Type Thick Turret Tooling is essential. It can create the precise holes and shapes required for the assembly of these complex machines.
3. Sheet Metal Fabrication Shops: Small to large sheet metal fabrication shops benefit from the versatility and performance of this tooling. It allows them to take on a wide variety of projects, from simple metal enclosures to intricate custom designs.
1. Press button on guide
2. Rotate punch head to reach correct length
3. Install guide
4. Push stripper into guide
| Length for punch assembly | 209.5mm | Guide material | 40Cr |
| Punch body length | 207.5mm | Guide HRC | 46 DEG |
| Punch body material | high speed steel/M2 | Die height | 30mm |
| Punch body HRC | 60-64 DEG | Die material | D2 |
| Punch surface finish | 0.8μm Ra | Die HRC | 58-60 DEG |
| Punch Guide concentricity | +-0.015mm | Punch grinding life | 2mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.5mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN-optional |
