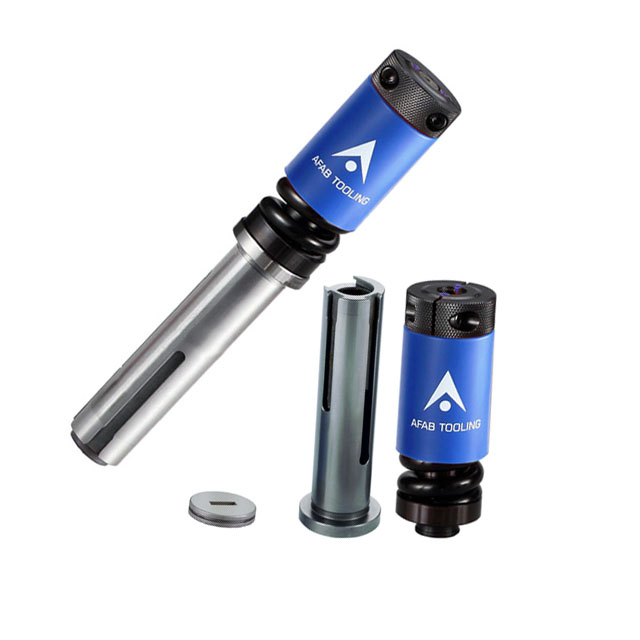

The FAB Type Thick Turret Tooling is a state-of-the-art solution designed to meet the evolving needs of the metalworking industry. With its cutting-edge design and advanced manufacturing techniques, this tooling offers unparalleled performance in handling thick metal sheets. The tooling is built to withstand the high forces and stresses associated with heavy-duty metalworking operations, ensuring long-term reliability and consistent performance. The components of the FAB Type Thick Turret Tooling are carefully inspected and tested to meet the highest quality standards, guaranteeing its performance and durability in the most challenging working environments.
1. High Precision Machining: Each component of the FAB Type Thick Turret Tooling undergoes high precision machining, resulting in tight tolerances and accurate dimensions. This ensures precise punching and shaping of metal sheets, leading to superior product quality.
2. Enhanced Wear Resistance: The tooling is treated with advanced surface coatings to enhance its wear resistance. This extends the tool life and reduces the need for frequent replacements, saving costs and increasing productivity.
3. Ergonomic Design: The FAB Type Thick Turret Tooling is designed with user comfort and safety in mind. Its ergonomic features make it easy to handle and operate, reducing operator fatigue and improving overall efficiency.
4. Compatibility: It is compatible with a wide range of turret punch press models, making it a versatile choice for metalworking businesses. Whether you have an older or newer machine, the FAB Type Thick Turret Tooling can be easily integrated into your production setup.
1. Medical Device Manufacturing: In the production of medical devices, where precision and hygiene are critical, the FAB Type Thick Turret Tooling is used to fabricate parts for surgical instruments, diagnostic equipment, and implantable devices. Its ability to provide accurate and clean cuts is essential for meeting the strict requirements of the medical industry.
2. Electronics Industry: For the electronics industry, which requires high precision and miniaturization, this tooling is used to create intricate metal components for electronic enclosures, circuit boards, and connectors. Its precision and reliability ensure the proper functioning of electronic devices.
3. Architectural Metalwork: In architectural applications, the FAB Type Thick Turret Tooling is used to create decorative metal elements and structural components for buildings. Its versatility allows for the production of unique and aesthetically pleasing designs while maintaining the required strength and durability.
4. Defense Industry: In the defense sector, where reliability and performance are of utmost importance, this tooling is used to fabricate components for military vehicles, weapons systems, and equipment. Its ability to handle thick and tough materials makes it a valuable asset in defense manufacturing.

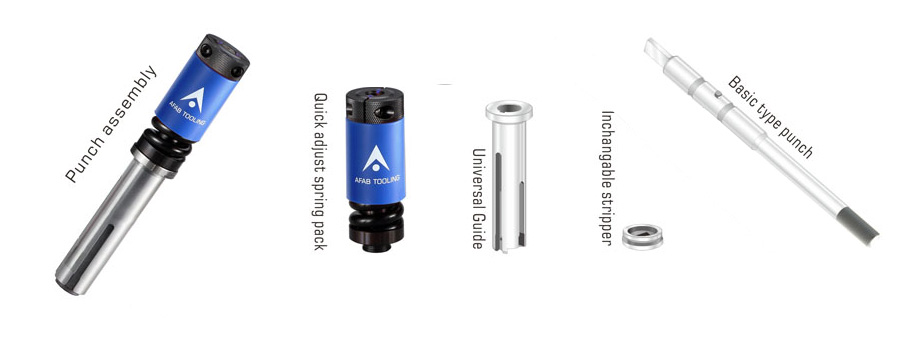

1.Quick adjust spring pack, punch head,spring,cover,retainer ring, O ring all in one design,extend to 5mm regrinding life.
2.Open guide,Universal components can be used unlimitedly, and have nothing to do with changes in size and shape, reducing purchase costs
3.Seperately stripper. lower cost to change size and shape.
4.FAB type use exisiting Basic-85 type punch. Best economic long punch body

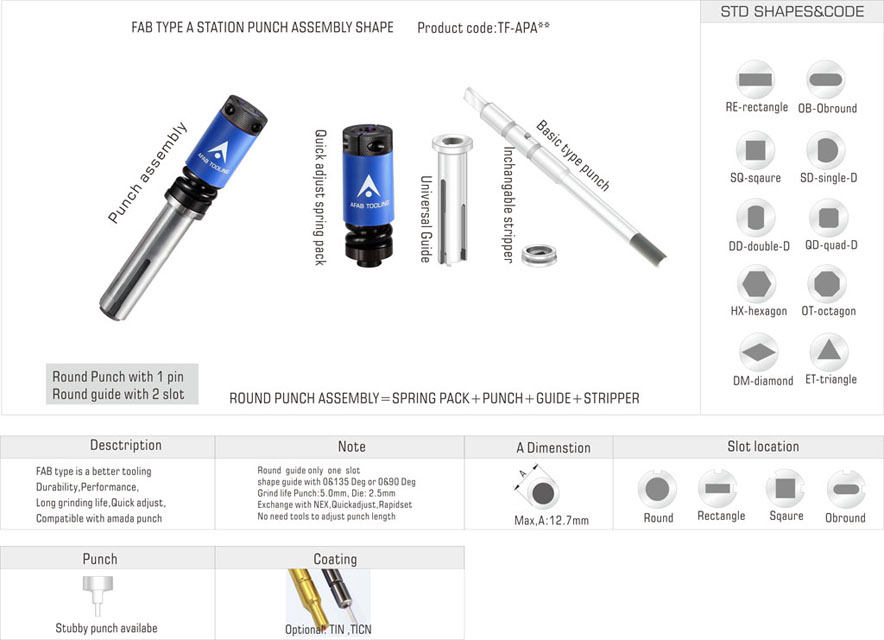

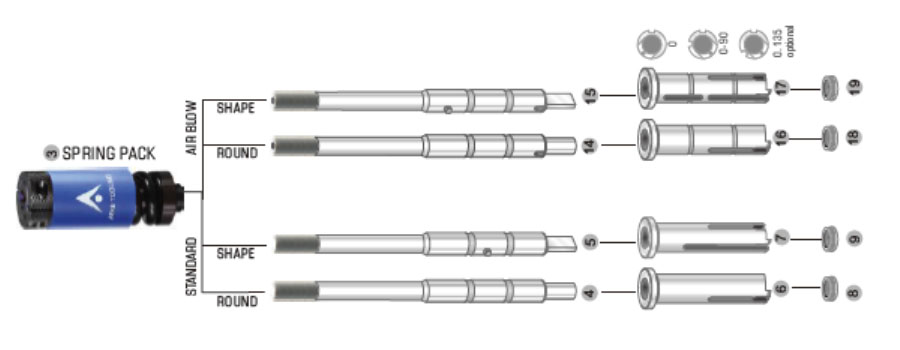

A station Product Structure Diagram
 | |
*Max.Allowable Tonnage:6 Tonne *Max.Thicknesss 4.0mmMS,3.0mm SS *Min. Dia/Width: AL 0.75xT,MS 1.0xT. SS 2.0xT *Ejector for size >6mm | Die pin location and shape code
|

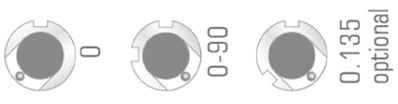

Std slot 0-90 deg on guide, optional 0-135 deg
Tooling parameter
| Length for punch assembly | 209.5mm | Punch surface finish | 0.8μm Ra |
| Punch body length | 207.5mm | Die height | 30mm |
| Punch body material | high speed steel/M2 | Die material | D2 |
| Punch body HRC | 60-64 DEG | Die HRC | 58-60 DEG |
| Punch Shank Size | 15.88mm | Die Outer Diameter | 25.4mm |
| Punch Guide Outer Dia. | 25.91mm | Punch grinding life | 2mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 5.0mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN-optional |
Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | Anti slug2 | |

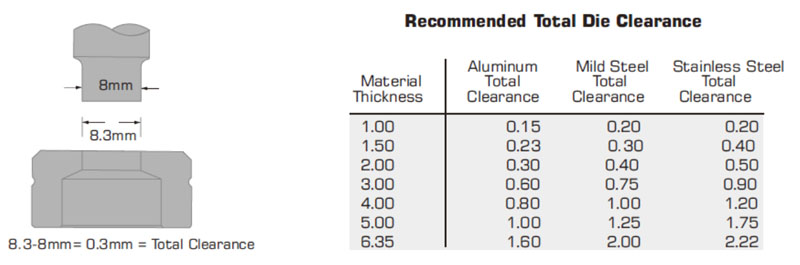

Die clearance

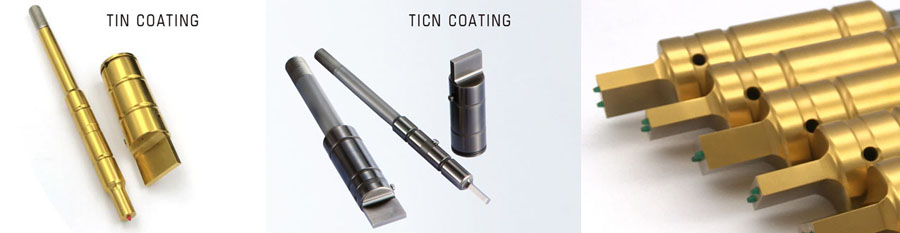

TIN,TICN,DLC coating available
The coating advised to punch more than 2.5mm thickness of mild steel. more 1.5mm thickness of stainless steel
Here are some key functions and benefits of coatings for punch tooling:
1. Improved Wear Resistance 2. Reduced Friction 3. Enhanced Lubricity 4. Corrosion Resistance
5. High-Temperature Stability 6. Increased Surface Hardness 7. Better Surface Finish 8. Cost-Effective

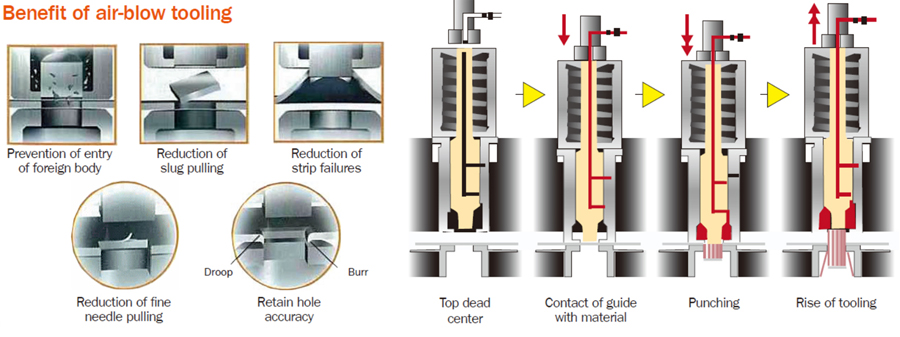

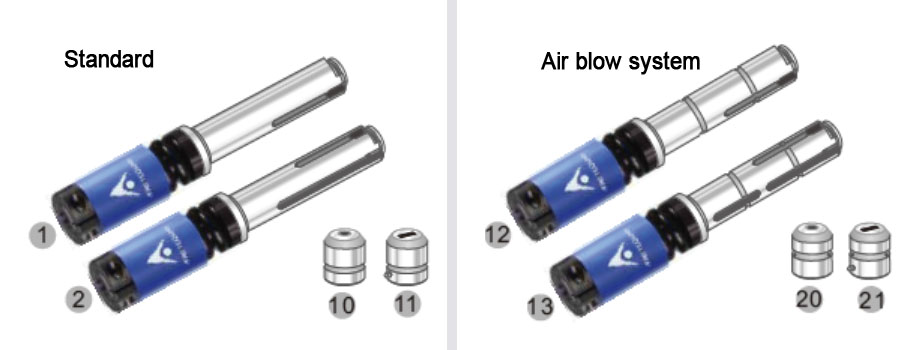

Air Blow system Tooling
The air blow system in thick turret tooling plays a crucial role in enhancing tool performance, extending tool life, improving part
quality, and reducing maintenance requirements. It is an integral part of modern turret punch press tooling systems
The system supplies an air/oil mixture to lubricate critical components of the tooling, including the punch body, guide channels,
and punch tip.This internal and external lubrication reduces friction, prevents galling, and extends the life of the punch and die
Product Operate Guide
Step 1: Prepare an Allen wrench
Step2:Use a wrench to alternately unscrew the screws on both sides of the punch head
Step3:Turn the spring head counterclockwise to separate the spring assembly from the punch. (The round punch must be pulled out from the guide sleeve first)
Step4:The punch, guide sleeve and spring are removed.
The distance from the end surface of the guide sleeve can be adjusted to about 0.5mm
