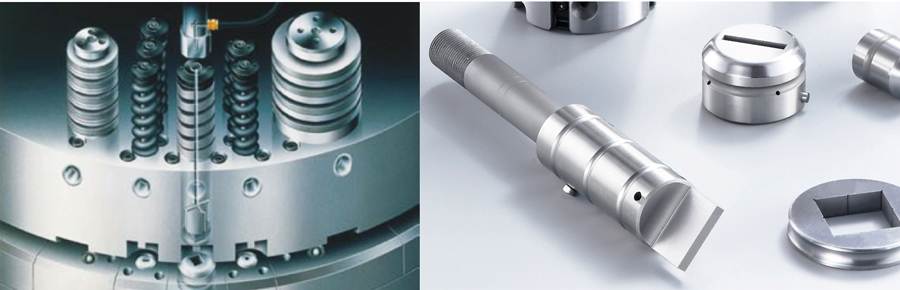

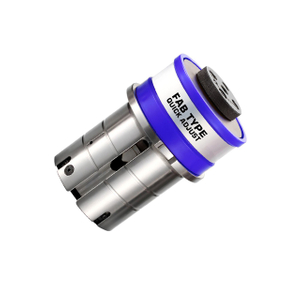

The FAB Type Thick Turret Tooling is a revolutionary product that combines innovation and functionality to provide an exceptional metalworking solution. It is designed to overcome the challenges associated with processing thick metal sheets, offering improved efficiency and productivity. The tooling features a modular design that allows for easy customization and adaptation to different production requirements. The high-quality materials and precision manufacturing techniques used in its construction ensure its long-term performance and reliability. The FAB Type Thick Turret Tooling is a testament to our commitment to providing the best-in-class products for the metalworking industry.
1. Modular Design: The modular design of the FAB Type Thick Turret Tooling allows for easy customization and flexibility. You can choose from a variety of components and configurations to suit your specific needs, making it a versatile choice for different metalworking applications.
2. High Performance Cutting: The tooling is equipped with advanced cutting edges that provide high performance cutting of thick metal sheets. The sharp and durable cutting edges ensure clean and accurate cuts, reducing the need for secondary operations.
3. Intelligent Tool Management System: It comes with an intelligent tool management system that helps optimize tool usage and reduce tool wear. The system provides real-time monitoring of tool performance and alerts operators when it's time to replace or maintain the tools.
4. Cost-Effective Solution: Despite its advanced features and high-quality construction, the FAB Type Thick Turret Tooling offers a cost-effective solution for metalworking businesses. Its long tool life, low maintenance requirements, and high productivity contribute to reducing overall production costs.
1. Marine Industry: In the marine industry, where corrosion resistance and durability are essential, the FAB Type Thick Turret Tooling is used to fabricate components for ships, boats, and offshore structures. Its ability to handle thick and corrosive-resistant materials makes it suitable for marine applications.
2. Food and Beverage Industry: For the food and beverage industry, which requires hygienic and corrosion-resistant materials, this tooling is used to create metal components for food processing equipment, storage tanks, and packaging machinery. Its precision and reliability ensure the quality and safety of food products.
3. Renewable Energy Industry: In the renewable energy sector, such as solar and wind power, the FAB Type Thick Turret Tooling is used to fabricate components for solar panels, wind turbine towers, and energy storage systems. Its ability to handle thick and strong materials is crucial for the construction of renewable energy infrastructure.
4. Automotive Aftermarket: In the automotive aftermarket, where customization and repair work are common, this tooling is used to fabricate replacement parts and custom components for vehicles. Its versatility and precision make it a valuable tool for automotive repair shops and customization businesses.

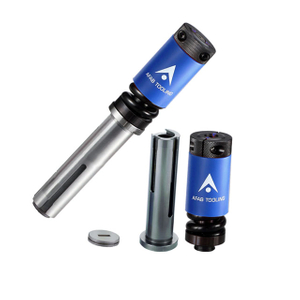

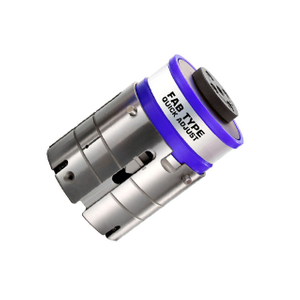

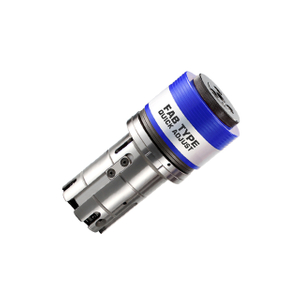

FAB style thick turret tooling from AFAB is High perfomance and low cost solution,with several design feature, including:

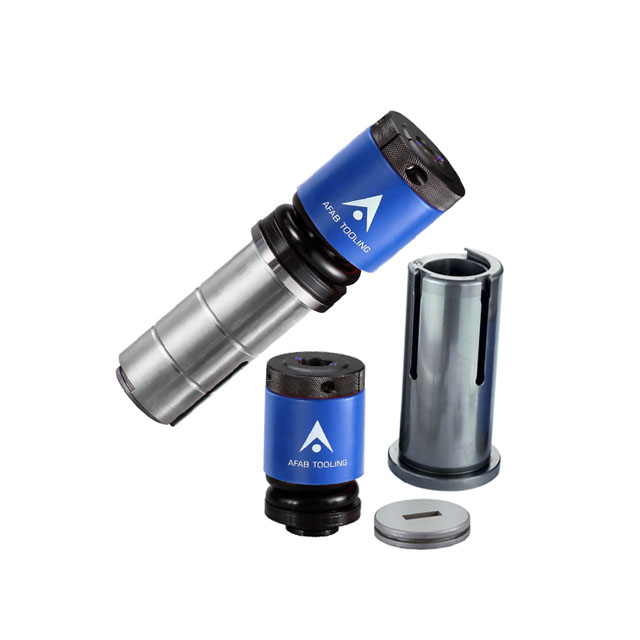

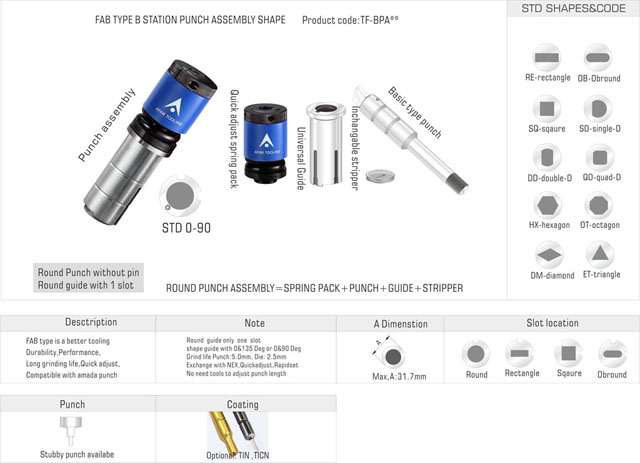

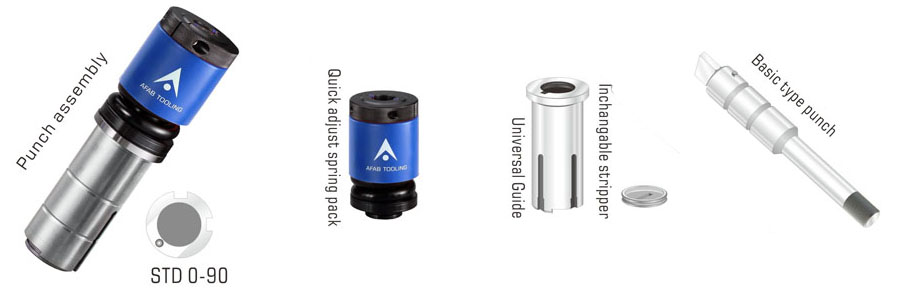

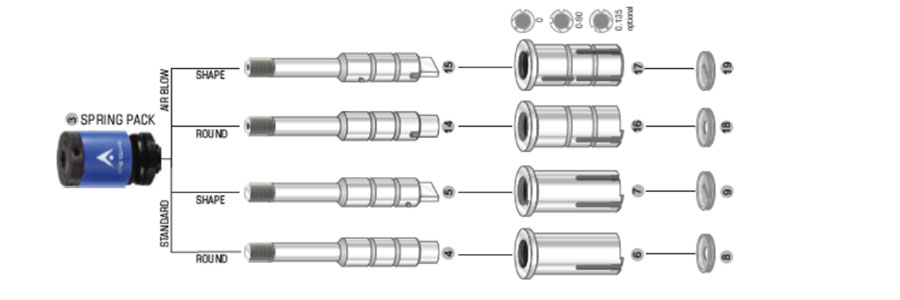

B station Product Structure Diagram
 | |
*Max.Allowable Tonnage:16 Tonne *Max.Thicknesss 6.35mmMS,3.0mm SS *Min. Dia/Width: AL 0.75xT,MS 1.0xT. SS 2.0xT *Ejector for size >6mm | Die pin location and shape code
|
Std slot 0-90 deg on guide, optional 0-135 deg
Tooling parameter
| Punch Shank Size | 31.8mm | Die Outer Diameter | 47.62mm |
| Punch Guide Outer Dia. | 47.8mm | Punch grinding life | 5.0mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.5mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN,TIN,DLC-optional |
Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | Anti slug2 | |
Die clearance
Die clearance of punch tools refers to the gap between the cutting edge of the punch and the corresponding edge of the die
in a press tool
TIN,TICN,DLC coating available
The coating advised to punch more than 2.5mm thickness of mild steel. more 1.5mm thickness of stainless steel
Here are some key functions and benefits of coatings for punch tooling:
1. Improved Wear Resistance 2. Reduced Friction 3. Enhanced Lubricity 4. Corrosion Resistance
5. High-Temperature Stability 6. Increased Surface Hardness 7. Better Surface Finish 8. Cost-Effective
Air Blow system Tooling
The air blow system in thick turret tooling plays a crucial role in enhancing tool performance, extending tool life, improving part
quality, and reducing maintenance requirements. It is an integral part of modern turret punch press tooling systems
The system supplies an air/oil mixture to lubricate critical components of the tooling, including the punch body, guide channels,
and punch tip.This internal and external lubrication reduces friction, prevents galling, and extends the life of the punch and die
Product Operate Guide
Step 1: Prepare an Allen wrench
Step2:Use a wrench to alternately unscrew the screws on both sides of the punch head
Step3:Turn the spring head counterclockwise to separate the spring assembly from the punch. (The round punch must be pulled out from the guide sleeve first)
Step4:The punch, guide sleeve and spring are removed.
The distance from the end surface of the guide sleeve can be adjusted to about 0.5mm
