Product Advantage

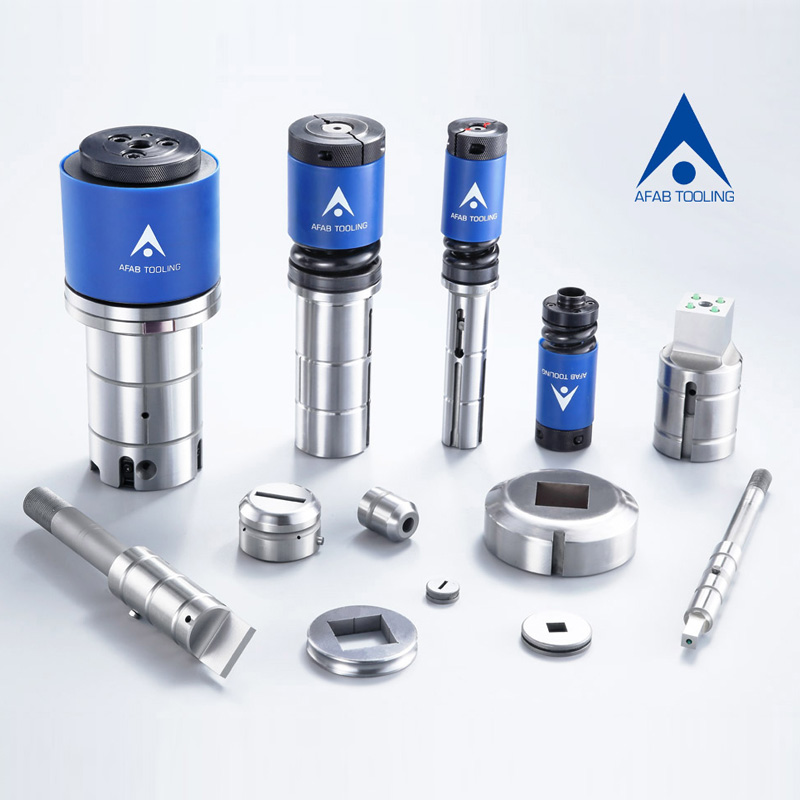

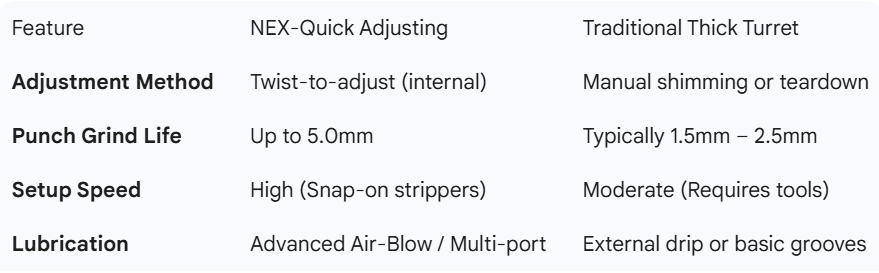

The FAB TYPE-QUICK ADJUSTING product for thick turret punch presses several standout technical features:
Quick-Change Mechanism: This system allows for FAB type-quick adjusting changes for punch and stripper, significantly enhancing productivity and reducing downtime in manufacturing processes.
Spring pack pre-loaded: this design supply enough stripping pressure and reliable operation
User-Friendly Design: The intuitive design simplifies the tool change process, No shims after adjusing,only wrentch to exchange tool.
Precision Punching: The FAB TYPE-QUICK ADJUSTING system maintains high precision and consistency in punching operations, accommodating a wide range of materials and thicknesses.
Enhanced Performance: Engineered to improve mold performance, flexibility, and extend the life of the mold, with features like tool-free length adjustment and hardened guides for extended turret hole life.
Compatibility: The FAB TYPE-QUICK ADJUSTING is designed to be interchangeable with existing systems, ensuring a wide range of applications and adaptability.Which use amada basick-85 punch body. Exchange with Mate Rapid set,Amada NEX,Wilson quick adjust.TOP85,M85 series tooling
Long punch life: FAB type achieve more than 5mm sharpening life.
Technical Parameters
| Length for punch assembly | 209.5mm | Guide material | 40Cr |
| Punch body length | 207.5mm | Guide HRC | 46 DEG |
| Punch body material | high speed steel/M2 | Die height | 30mm |
| Punch body HRC | 60-64 DEG | Die material | D2 |
| Punch surface finish | 0.8μm Ra | Die HRC | 58-60 DEG |
| Punch Guide concentricity | +-0.015mm | Punch grinding life | 2mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.5mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN-optional |
Product Uses
OEM Compatible Design: The Basic Style Thick Turret Tooling for AMADA 85 from AFAB is fully compatible with OEM systems, ensuring seamless integration with leading CNC turret punch presses such as AMADA, Primapower, and LVD. This compatibility guarantees a hassle-free upgrade or replacement for your existing tooling, saving time and cost.
Cost-Effective Tooling Solution: Designed as an economic tooling option, this punch tool offers significant cost savings without compromising on performance. It is ideal for businesses looking to minimize investment while maximizing efficiency in high-volume production environments.
Premium Punch Precision: Features long punches with high precision, achieving an impressive hardness range of HRC 60-64. The 207.5mm punch length ensures optimal cutting performance, delivering high accuracy with every operation, reducing the need for rework and improving production consistency.
Flexible Punch Head Design: Equipped with round punch heads that include two thread holes for easy rotation in both 1/2" A and 1-1/4" B stations. This flexible design allows users to efficiently manage tool wear and extend the lifespan of the tooling, minimizing downtime during setup changes.
Durable Hardened Guides for Extended Service Life: The tooling is equipped with hardened guides that reduce friction, enhancing tool longevity and ensuring smoother operation. Available in round guides with a single slot and shape guides with 0-90 degree slots, these guides provide exceptional durability and superior precision, minimizing the risk of tool wear and breakdowns.
Regrindable Punch and Die: The punch body has a regrinding life of 2.0mm, and the die regrinds up to 2.5mm, ensuring long-term usability. This feature significantly extends the tool’s service life, providing a cost-effective and eco-friendly solution for businesses that require frequent tool maintenance and regrinding.
Product Operate Guide
1. Remove stripper and guide
2. Loose besides bolts on punch head
3. Remove spring pack,separate with punch body
4. Exchange punch body and stripper with different shape and size
5. Install spring pack,guide. fit stripper into guide.
