FAB Ultra style designed for quick disassembly and assembly, requiring no tools for setup. This further reduces downtime and increases efficiency

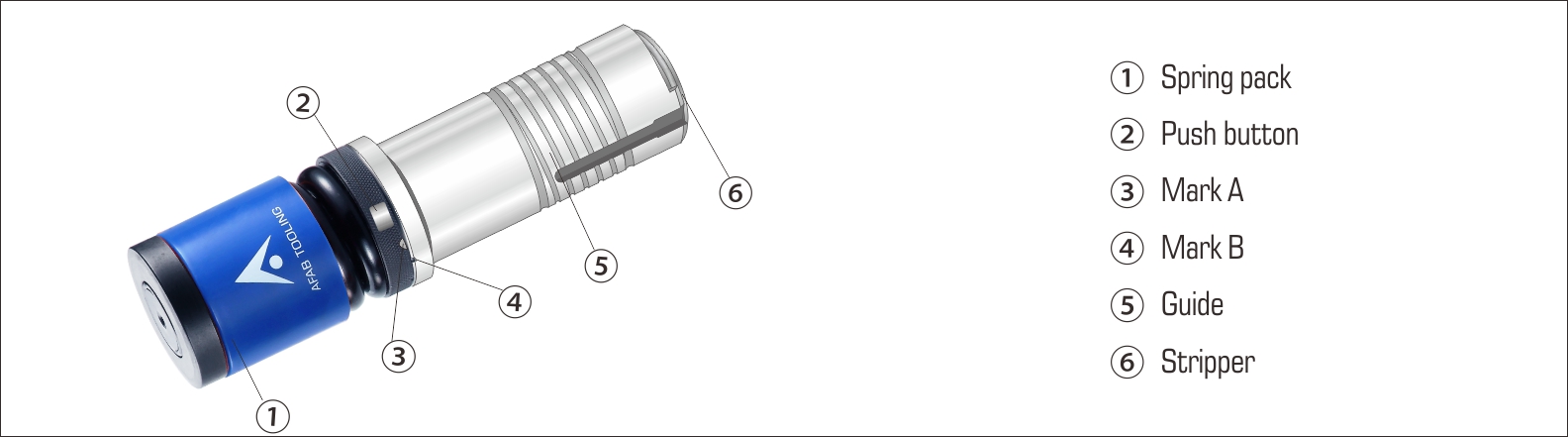

Quick adjusting punch length
As below chart,Push button 2,Rotate guide, Punch body get longer or shorter as required. No need to remove guide for adjusting.

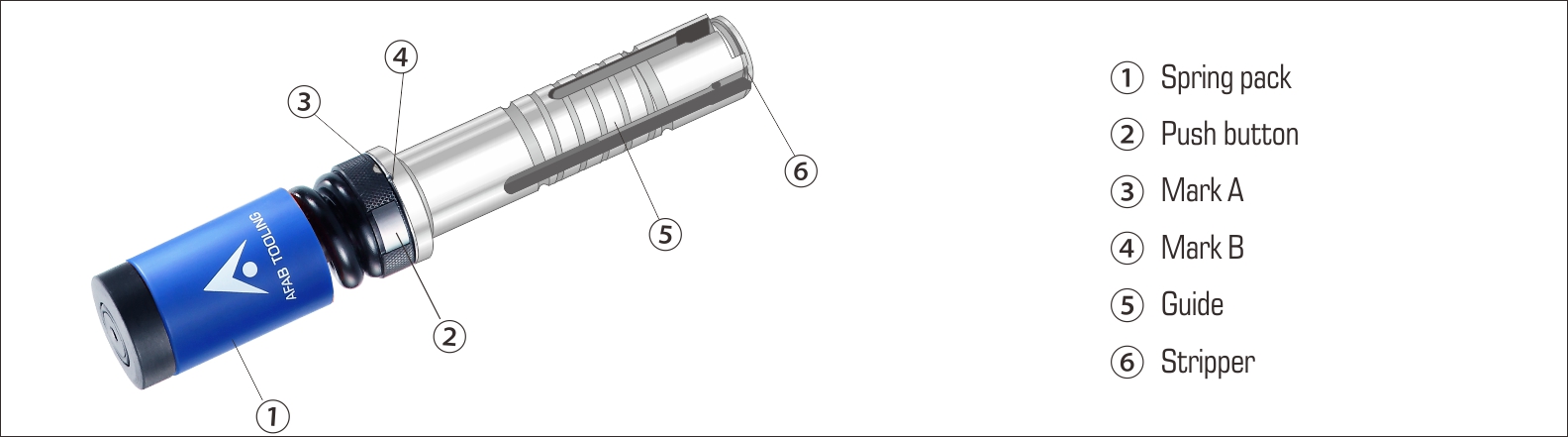

Remove guide
See below diagram, Mark A match Mark B, pull out guide.

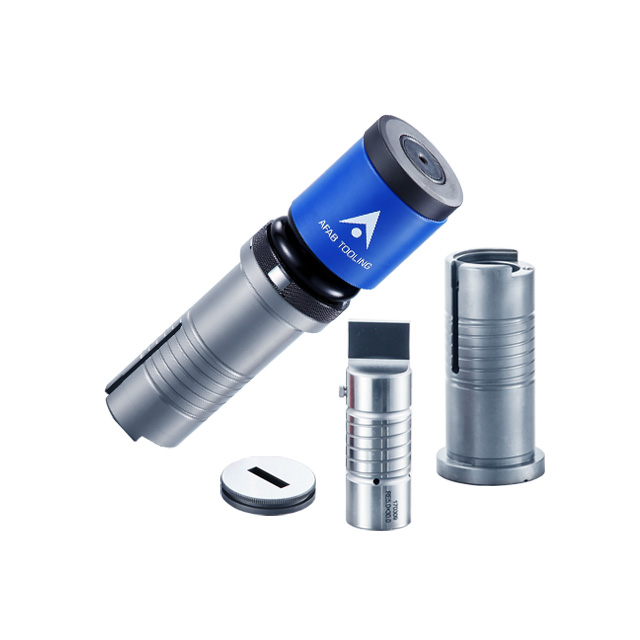

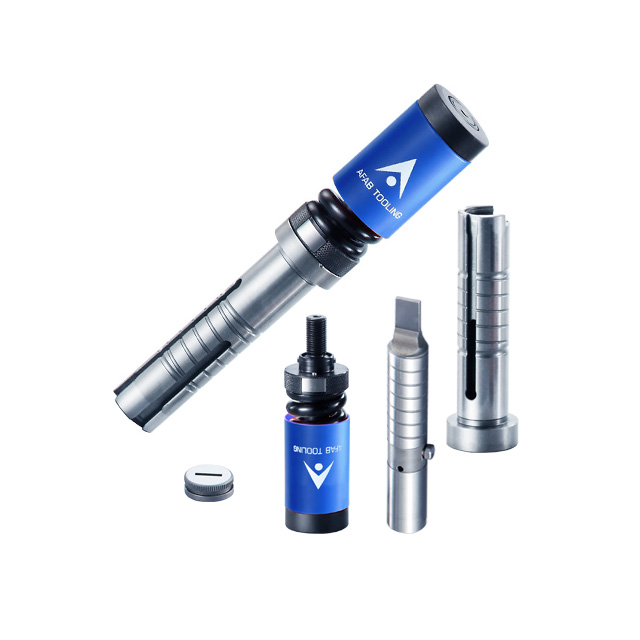

FAB Ultra AB station Feathures
*. A station Max diameter/diagnonal 12.7mm, B station Max 31.7mm
*. A station Max.Allowable Tonnage:6 Tons, A station Airblow Tonnage: 4.5 tons,
*. B station Max.Allowable Tonnage: 17 tons, B station airblow tonnage: 16 tons.
*. The punch assembly designed to improve punch life up to 6-8mm
*. A.B station round punch with pin which anti-rotate when punching sheet metal.
*. Quickly easily assemble or disassemble for punch assembly, This further reduces downtime and increases efficiency.
*. Hand adjust punch length,hand exchange stripper, No need any tools and fixture.
*. Compatibility:This series tooling suitable with mate ultra type,mate XT type fully.

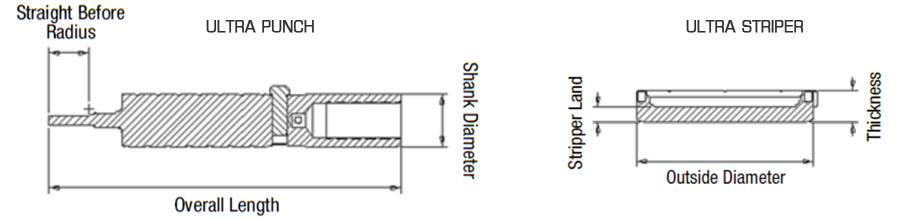

A.B station FAB ULTRA parameter
| Station | Max punch diagonal | Punch length | Punch shank Dia. | SBR | Stripper OD | Stripper Thickness |
| A | 12.7mm | 107.82mm | 15.99mm | 18.8 | 19.07mm | 6.91mm |
| B | 31.75 | 100.51mm | 31.75mm | 18.8 | 38.10mm | 6.91mm |
FAB ULTRA Guide slot 0-90 deg on guide, optional 0-135 deg Standard shape and code

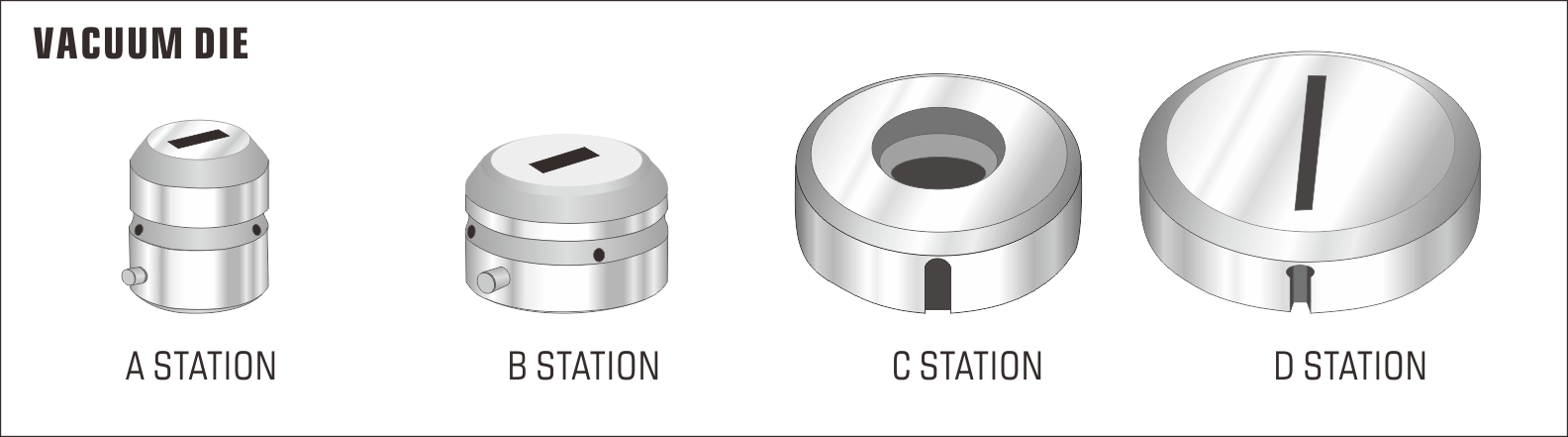

Vacuum die-KK die ,PV die avaible
CDE station slitting size such as 5X45,5x50,5x80,5x110 recommanded to use this style die, in order to get longer die life,prevent die damaging
Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | ti slug2 | |
