Thick Turret Fully Guided AB STN

Description:
Fully guided type for shape such as rectangle,obround. Long punch life,more punch hits
Availability:
Inquire Add to Basket

Fully guided
Product Description

Fully guided Shape

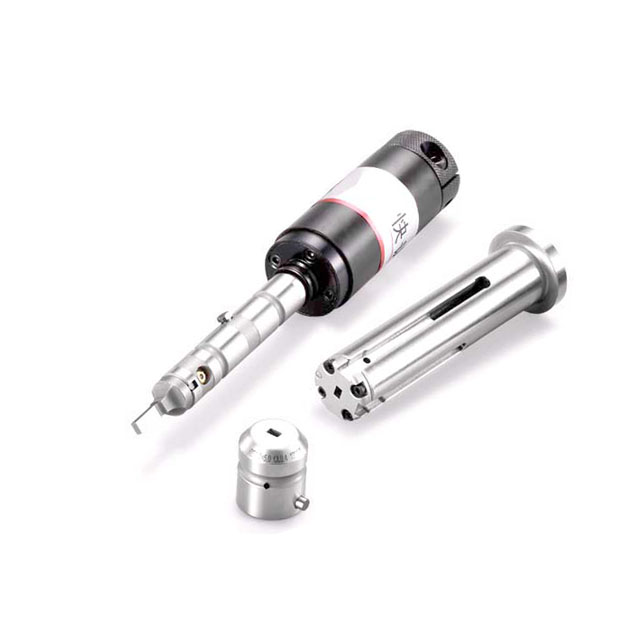

A station fully guided,Max size 3X12mm

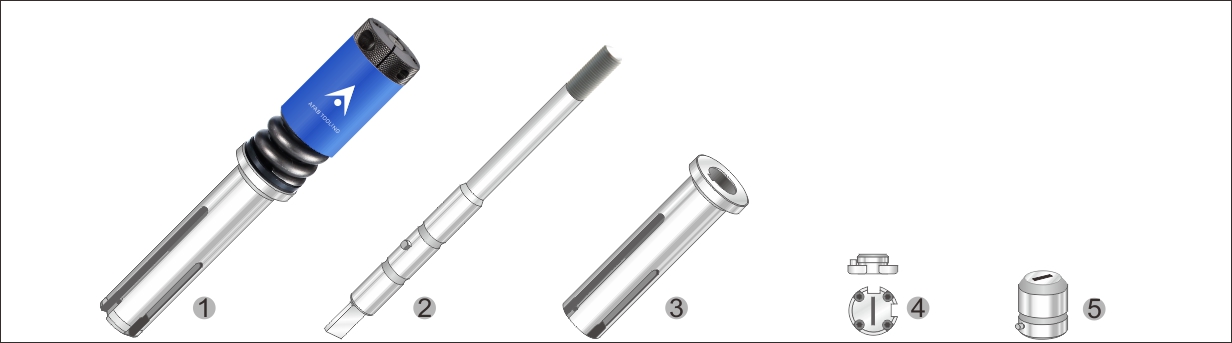

Fully guided a STN chart

① Punch assembly    ② Punch body     ③Guide      ④ Stripper        ⑤Step Die

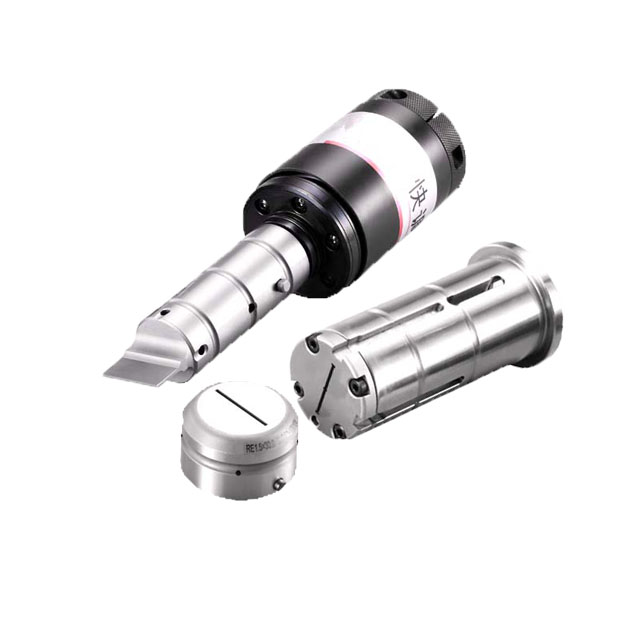

A station fully guided,Max size 3.2X30mm

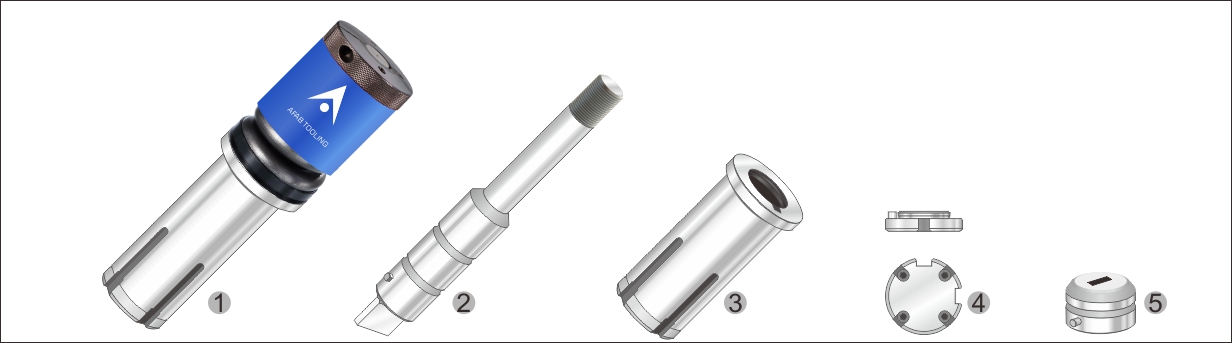

Fully guided B STN chart

① Punch assembly        ② Punch body          ③Guide            ④ Stripper       ⑤Step Die


Fully Guided Round Features:

A.Longer support for punch tip by stripper

B.Accurate close clearance between punch and stripper

C.More fixed stripper tightened by 4 screws

D.TICN punch available

E.Quick adjust spring pack Optional

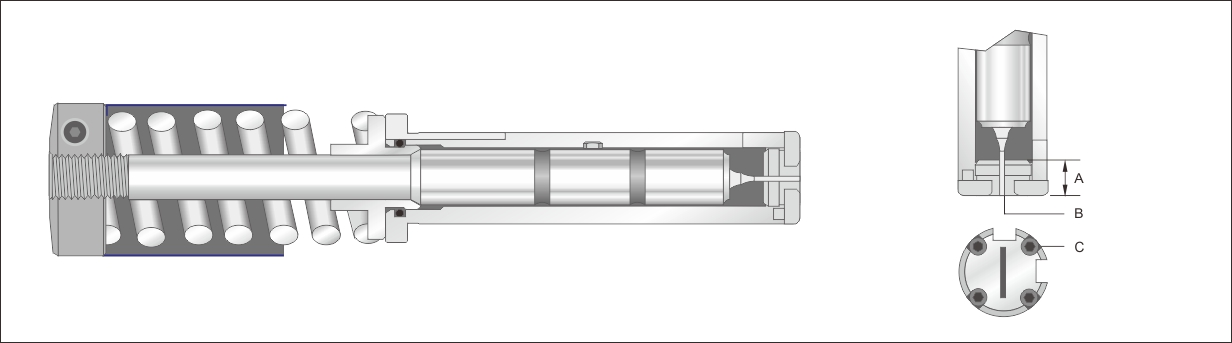

Fully guided B STN Features
