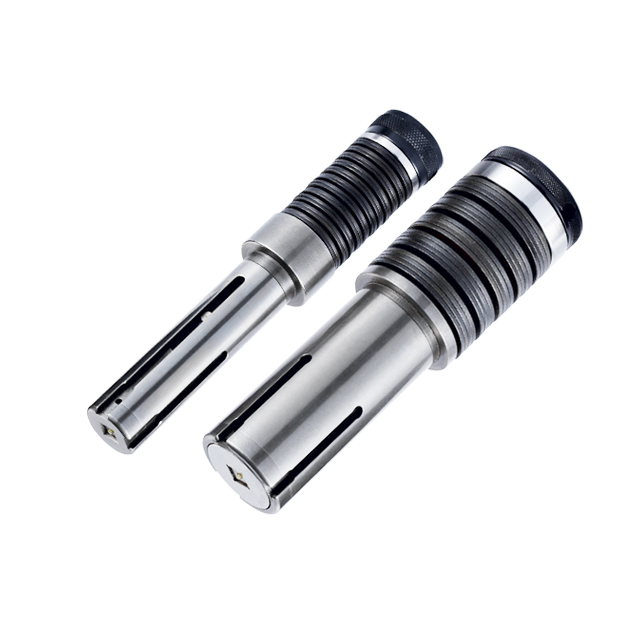

HEAVY DUTY TOOLING SERIES
Special designed to punch more thick sheet metal material to get reliable durable tooling life
A station Max. Diameter/Diagonal 12.7mm. B station Max. Diameter/Diagonal 31.7mm.
Max. punch force 17tons. Max punch thickness 6.35mm

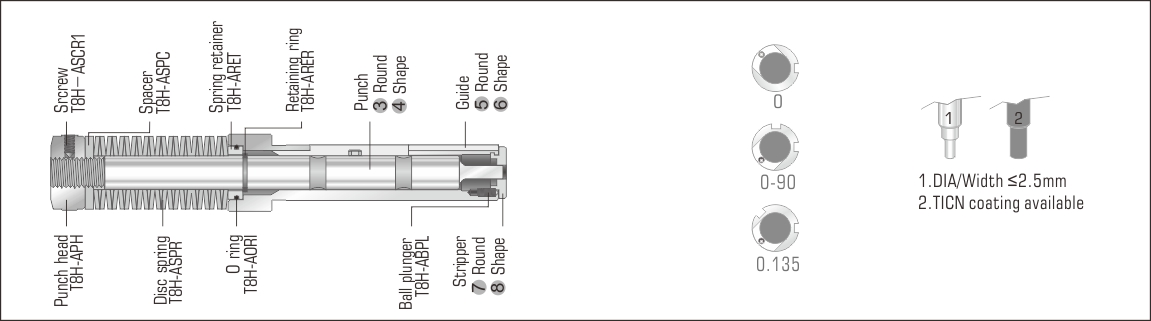

A Station Structure Chart

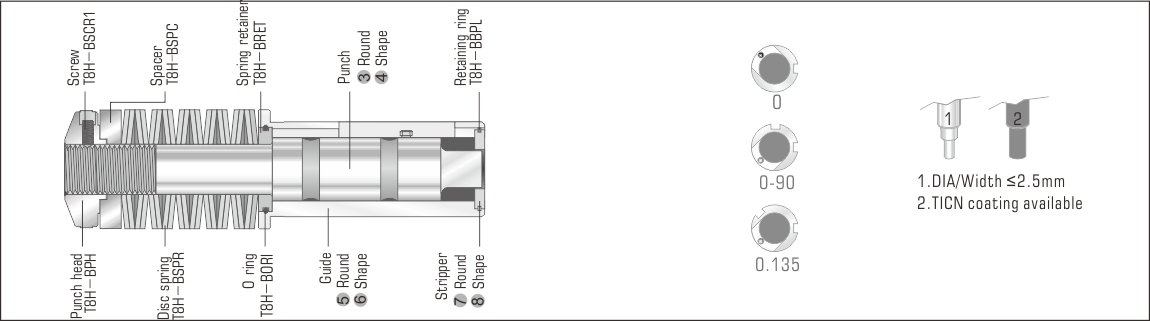

B station Structure Chart
Heavy Duty Tooling Features
1.Disc spring-not coil spring, supply more stripper force.
2.Bigger punch driver, Punch body stronger,avoid risk of damaging
3.Big back taper 1/16° on punch tip. Stripping sheet metal become easy and successful
4.Heavy duty die/enforced die optional. Die land of this style is more thick
