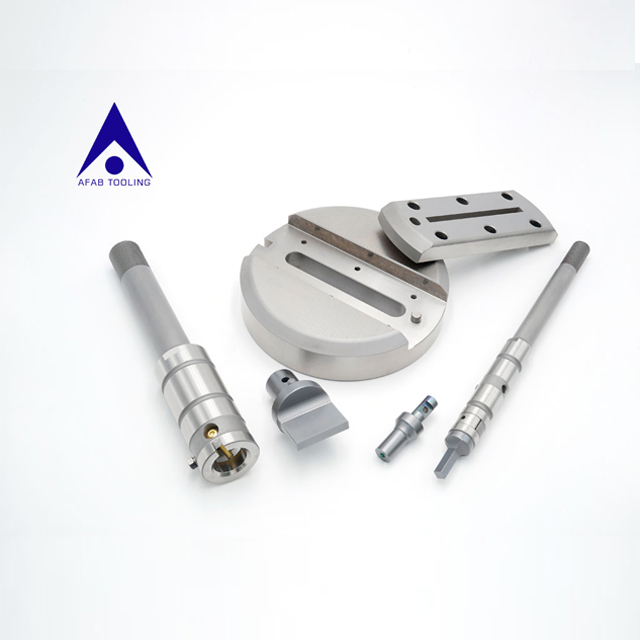

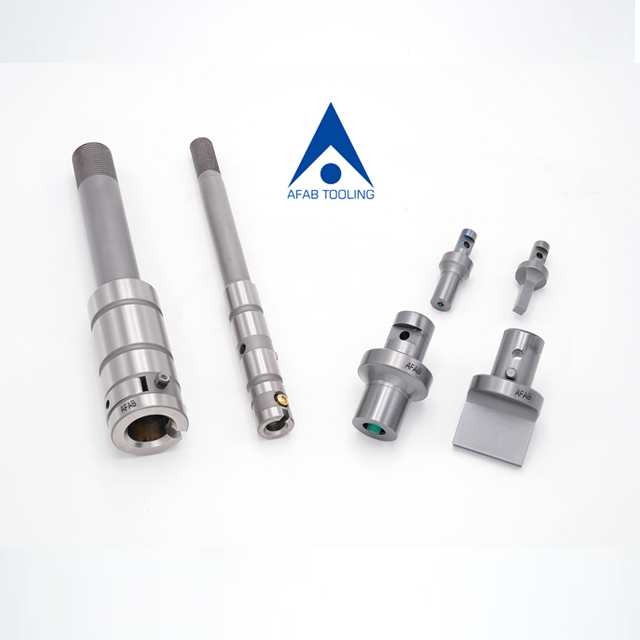

R.I.System,similar with wilson EXP,QCT tooling style
Key Features
Tool-less Punch Retention:
The system features a Non-tool punch retention mechanism, making it incredibly easy to adjust punch inserts. Simply flip the durable latch to remove and snap the new insert into place. it shorten effort and maximizes uptime.
Durable and Long life:
Punch inserts are made in MP4 steel, It extend tripple punch hits
Universal Compatibility:
The R.I system is fully exchangable with basic,FAB,FAB90,FAB UTRA series.
Enhanced Performance:
The punch is fixed by button based on holder
Cost-Effective:
R.I. system offers great value by reducing the need for multiple punch drivers. Only one punch driver is required for both rounds and shapes, Big saving for tooling invest
Increased Productivity: Quick and easy tool changes reduce downtime and increase overall productivity.
Improved Quality: Superior angularity control and precise punch guidance result in higher quality finished products.
Reduced Costs: Longer-lasting materials and simplified inventory management contribute to lower running costs.
Insert+holder=Basic/Original type punch. Air blow system available

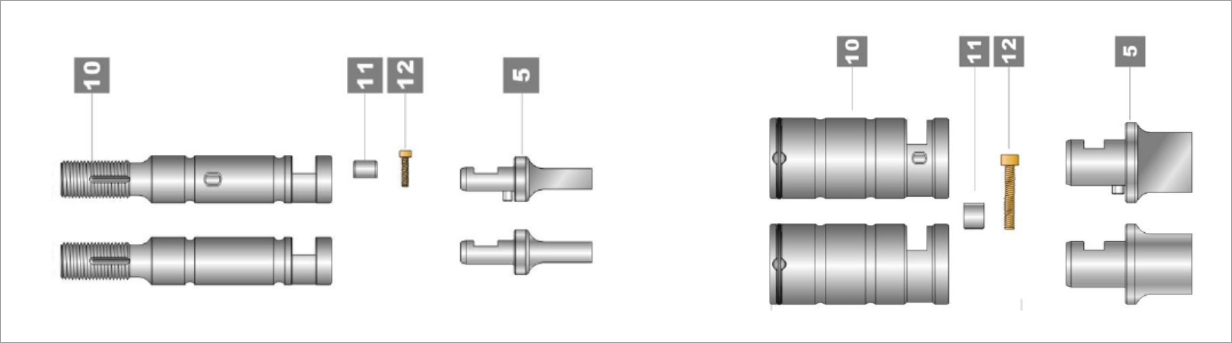

Insert+holder=FAB 90/Wilson Hp type punch. Air blow system available

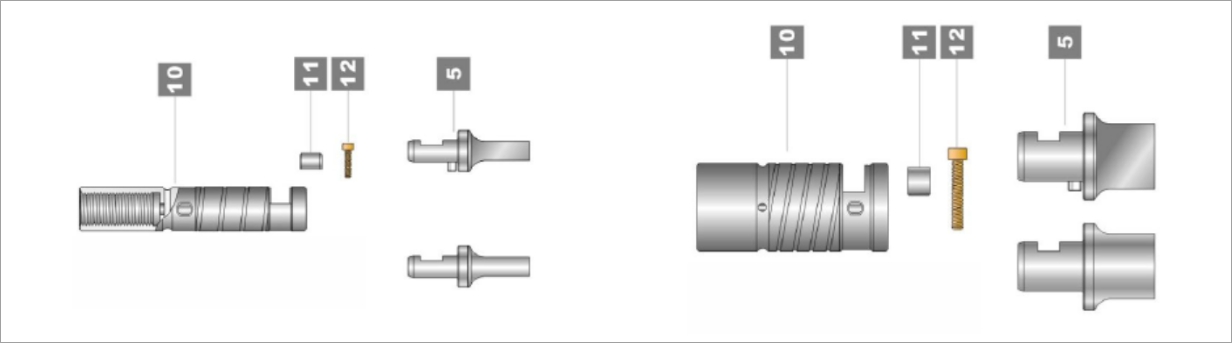

Insert+holder=FAB ultra type punch. Air blow system available

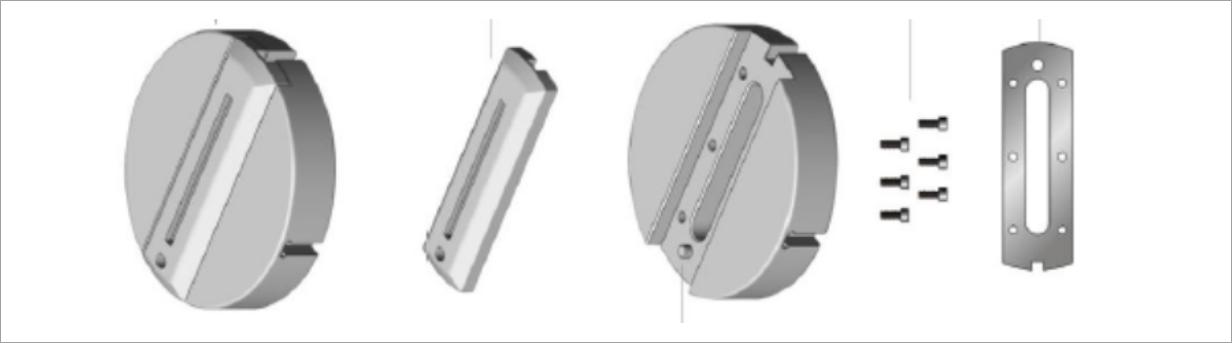

R.I System Die type, Could be double relief

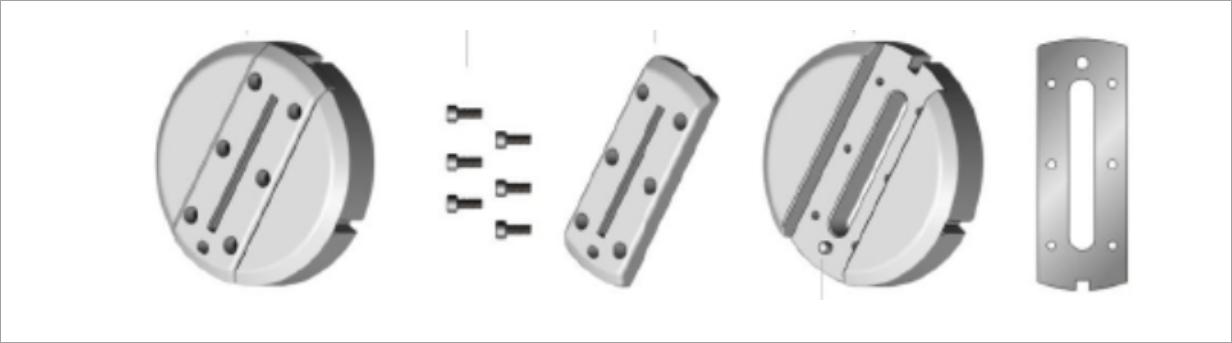

R.I System Die type, include die insert,bolts,die insert shims,die holder.
