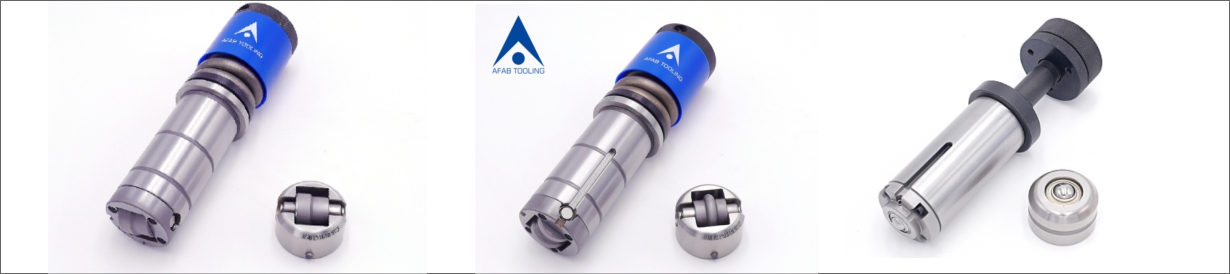

AFAB supplys wheel tool include wheel rib, wheel offset and wheel deburring.

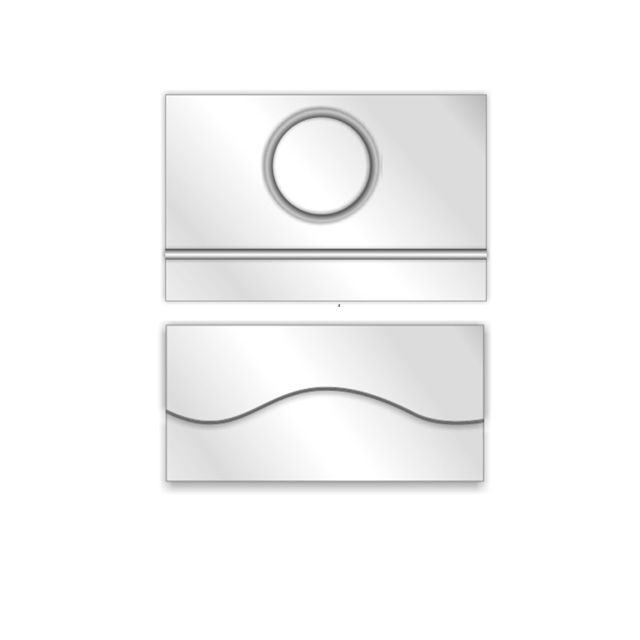

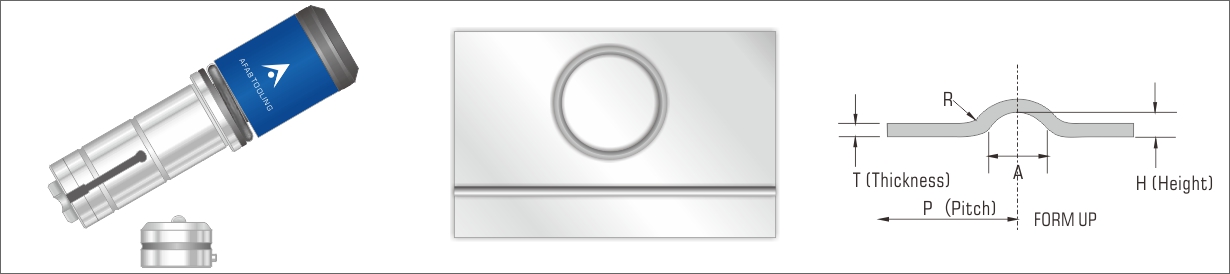

The Wheel Rib Tool Features
①.High speed forming,equal to table moving
②.Make any shape in auto index station
③.No any nibbling marks
⑤.Any location of sheet start or end
⑥.Make Mini Radius on sheet: 16mm
⑦.For thickness：Mini. thickness:0.8mm
Max:1.5mm SS,2.0mm MS,2.5mm AL

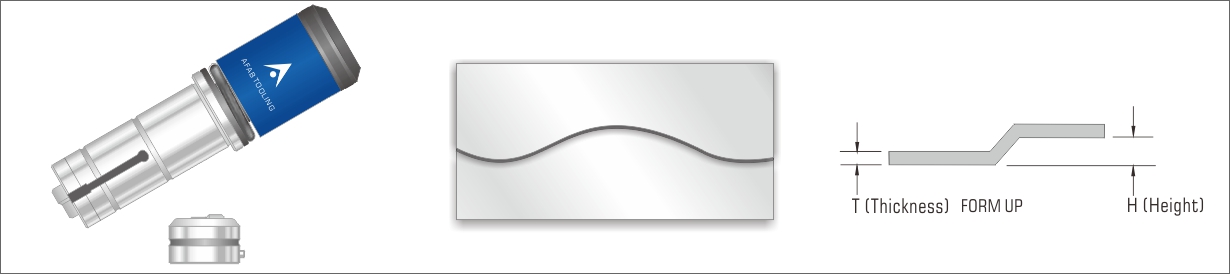

The Wheel Offset Tool Features
Mini Radius on sheet 25mm. other parameter as wheel rib

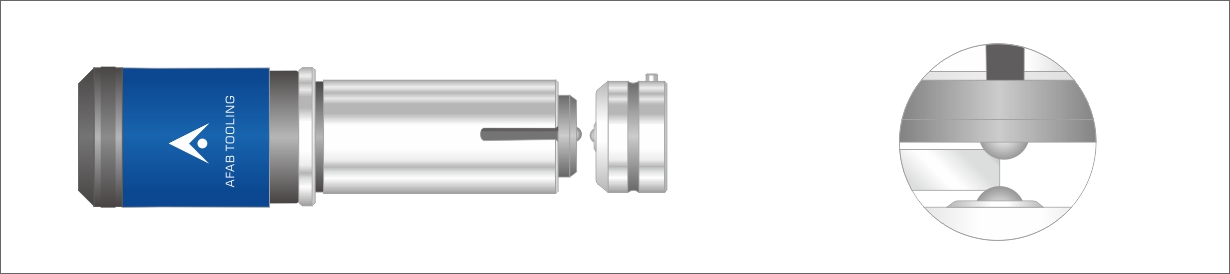

The Wheel Deburring Tool Features
To remove burrs by rolling ball on punch and die
Mini Holes : Round 3.0mm
Mini slot width: 2.0mm
Max.Thickness: 5.0mm
Min,Thickness: 0.8mm
