Product Advantage

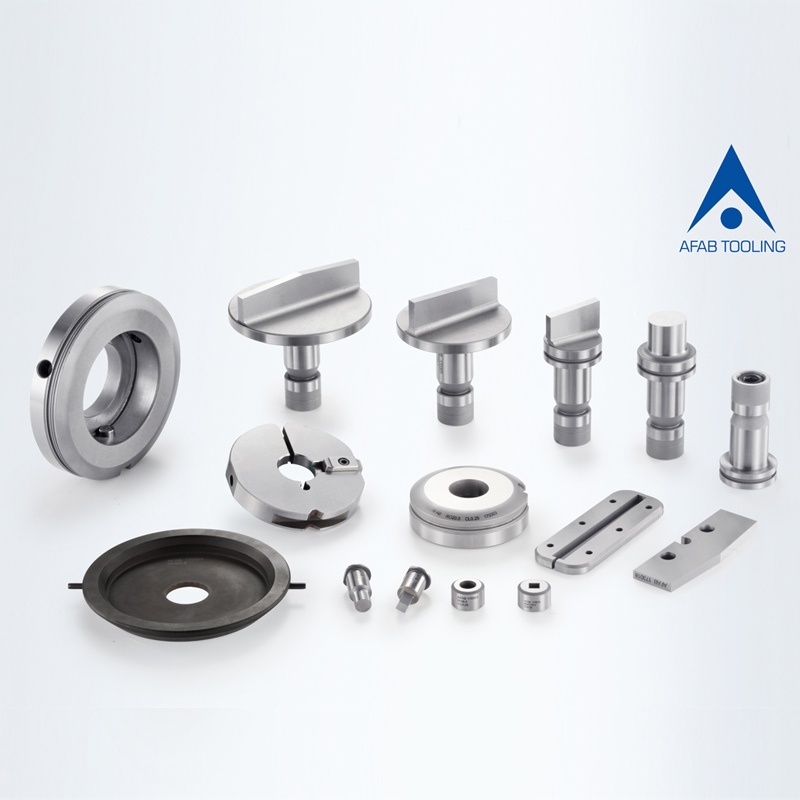

Wide range of applicability of Tumpf punching tool: This type tool apply for Tumpf,Bochert,Haco,Pallmax, Euromac.
Different punch length: Punch at 74mm for old trumpf machine type. punch at 77.5mm for new trumpf machine. All whisher punch with 77.5mm.
Size 1 die adaptor: All size 1 die should install in adaptor to fit into die plate.
Tool material: Punch in M2,HRC 60-64. DIE in D2, HRC 58-60.
Technical Parameters
| Length for punch assembly | 209.5mm | Guide material | 40Cr |
| Punch body length | 207.5mm | Guide HRC | 46 DEG |
| Punch body material | high speed steel/M2 | Die height | 30mm |
| Punch body HRC | 60-64 DEG | Die material | D2 |
| Punch surface finish | 0.8μm Ra | Die HRC | 58-60 DEG |
| Punch Guide concentricity | +-0.015mm | Punch grinding life | 2mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.5mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN-optional |
Product Uses
Trumpf's standard of punching tools, including those compatible with Boschert, are designed for a variety of specific applications across different industries:
Automotive Manufacturing: Trumpf punching tools are utilized for producing complex components such as brackets, panels, and frames with high precision and efficiency.
Aerospace Industry: These tools are ideal for creating lightweight structures with high precision, which is crucial in aerospace applications.
Electronics Sector: Trumpf tools are employed in fabricating enclosures and mounting plates for electronic devices, where precision and quality are paramount.
Construction Industry: They are used for manufacturing metal parts for buildings and infrastructure, demonstrating their versatility and durability.
Signage Production: Trumpf punching tools are perfect for creating intricate designs in signage materials, showcasing their ability to handle detailed work.
General Metal Fabrication: The tools are used for cutting, forming, and marking various metal parts, offering flexibility and adaptability to different materials and designs.
Forming Applications: Tools like the tapping tool for creating chipless threads, the MultiBend for bends up to 90°, and roller tools for straight or curved forms are part of Trumpf's product structure.
Marking Applications: Trumpf's marking tools allow for the embossing, engraving, or marking of any component, which is vital for identification and branding in metalworking.
Product Operate Guide
Installing TRUMPF tooling involves a series of steps that must be carefully followed to ensure the proper functioning and longevity of the punching tools. Here is a concise overview of the installation process for TRUMPF tooling:
Tooling Setup: Refer to the TRUMPF tooling manual for detailed instructions on setting up the tools, including dies, punches, and any additional components. This may involve installing the tools in the machine's tool magazine and ensuring they are correctly positioned for operation.
Alignment and Calibration: After the tools are installed, align and calibrate them according to the manufacturer's specifications. This step is essential for achieving precise punching and to prevent tool wear
Lubrication and Maintenance: Follow the recommended lubrication points and maintenance instructions provided by TRUMPF to ensure the longevity and optimal performance of the tooling.
Testing: Once the tooling is installed and calibrated, perform a series of test runs to ensure that the tools are functioning correctly and that the machine is producing the desired results.
