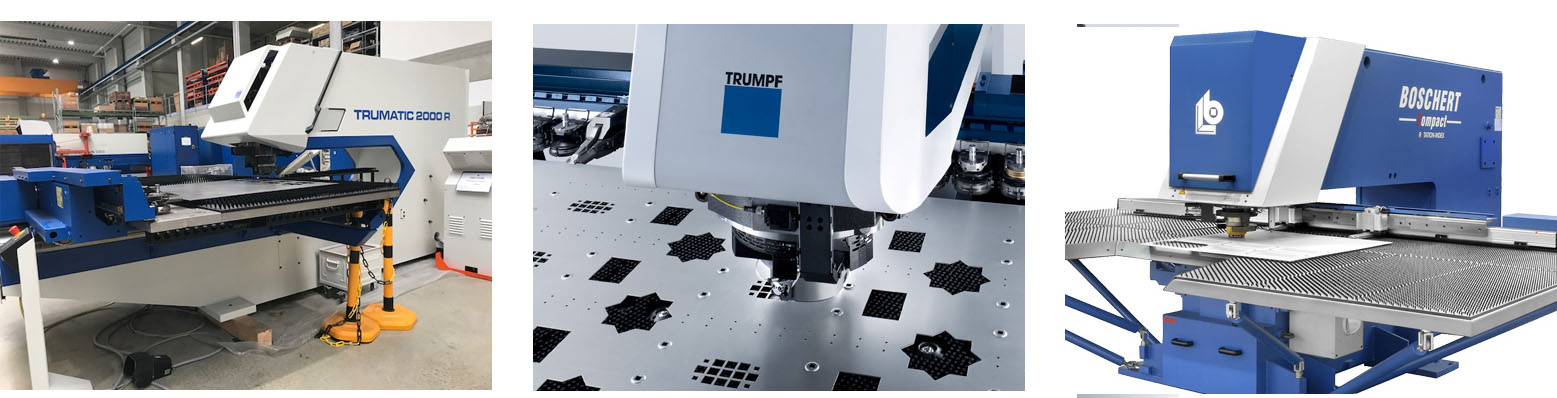

Fully compitable with Popular punch press machine such as TRUMPF,BOSCHERT,PULLMAX,LVD.

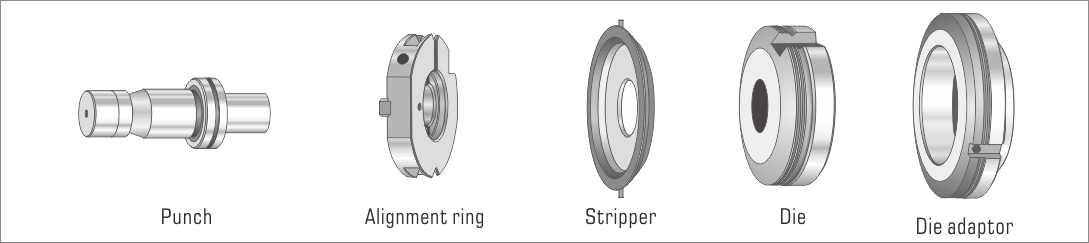

Trumpf Style Tooling Instructure. It include punch body,stripper, die.

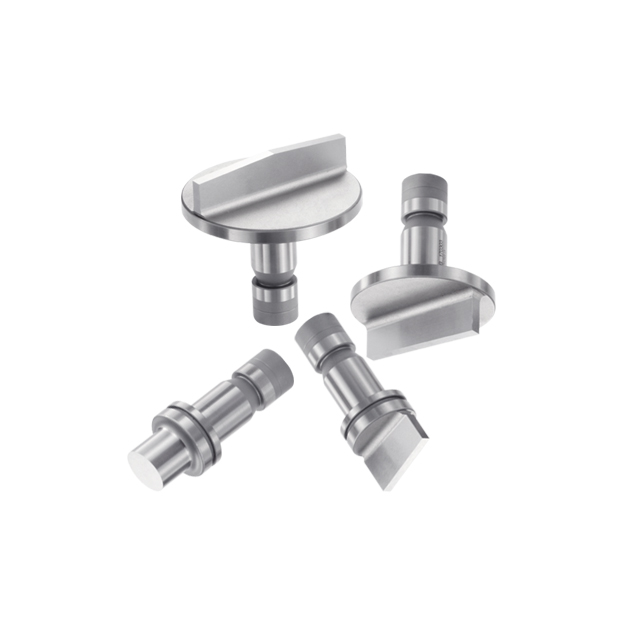

Trumpf Type Standard Punches in various size,Max.Diameter/Diagonal 76.2mm
 | ||||||
| 0A 1.2-6.0mm | 0B 6.01-10.5mm | Size 1 1.2-30.0mm | 2A 30.01-40.0mm | 2B 40.01-50.0mm | 2C 50.01-60.0mm | 2D 60.01-76.2mm |

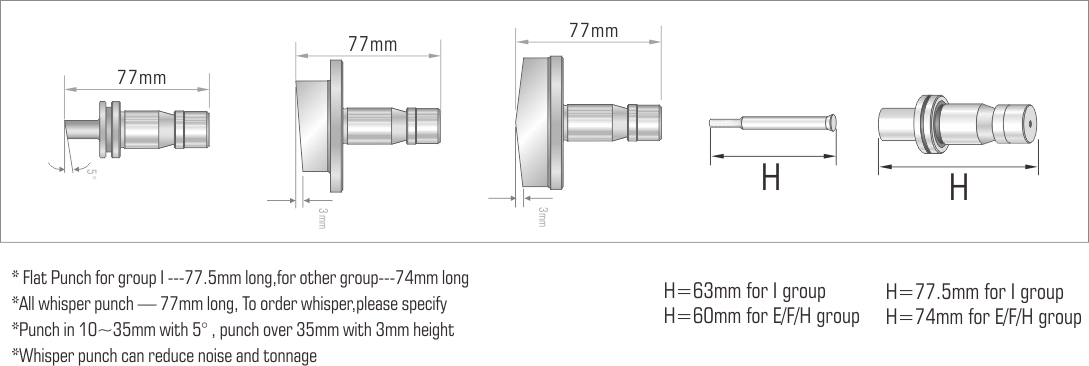

Trumpf Standard Series Punch Length
Flat punch: For Group I machine,Size 0 insert 63mm ,size 1-2 punch 77.5mm. Long type
For Group E/F/H machine, Size 0 insert 60mm, Size 1-2 punch 74mm. Short type
Whisper punch: All whisper (Single shear,rooftop) are with 77mm long. Whisper style is popular in trumpf tooling, It can reducfe noise and punch force.

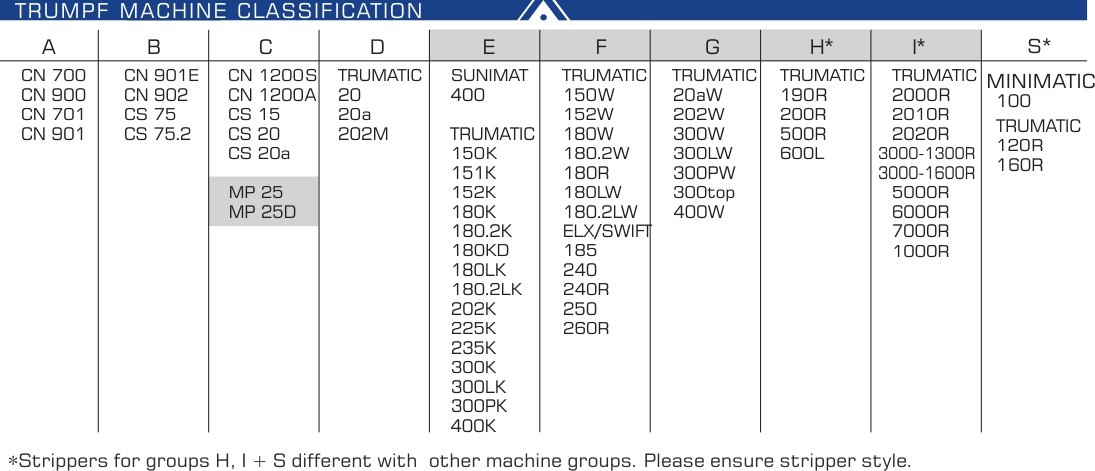

Trumpf machine model classification

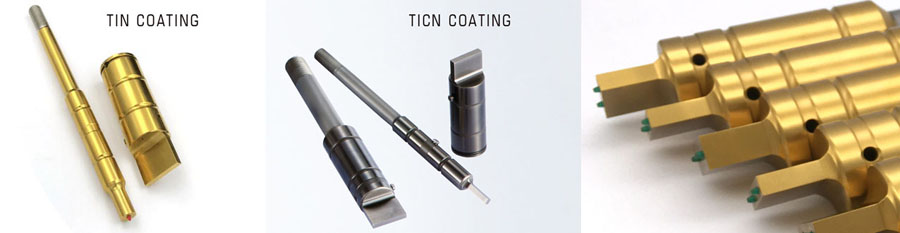

TICN,TIN coating optional for trumpf punch body
