How Trumpf Tooling Powers Precision in The Automotive Sheet Metal Industry

Views: 0     Author: Site Editor     Publish Time: 2025-07-30      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The automotive industry has always demanded the highest standards of precision, speed, and repeatability in manufacturing. As vehicle designs evolve to incorporate lighter materials, tighter tolerances, and more complex geometries, the need for advanced tooling solutions becomes even more critical. At the center of modern automotive sheet metal production is Trumpf tooling—a trusted name in punching, forming, and laser processing technology.

In this article, we will explore how Trumpf tooling contributes to the success of automotive manufacturers worldwide. From achieving micron-level tolerances to ensuring fast cycle times, the right Trumpf tooling can dramatically improve quality, efficiency, and competitiveness on the factory floor.

If you’re searching for reliable, OEM-compatible Trumpf tooling, visit www.afabtool.com to learn more about premium tooling solutions offered by AFAB Tool Limited.

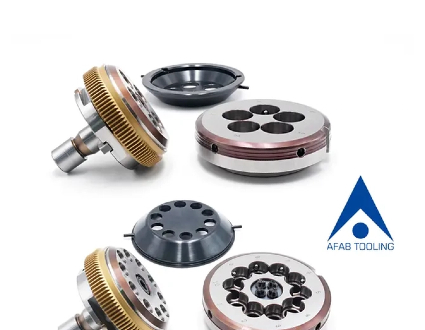

Trumpf Tooling

The Importance of Precision in Automotive Sheet Metal Fabrication

Automotive parts made from sheet metal—such as body panels, frames, brackets, reinforcements, and housings—must meet strict tolerances for fit, function, and safety. A misaligned hole or an imprecise bend can cause problems throughout the assembly line, from welding to final fitment on the vehicle.

Modern vehicles are also more complex, with thinner materials, integrated electronics, and sophisticated crash structures. These trends demand advanced tooling capable of delivering consistent, high-precision results over millions of cycles.

This is where Trumpf tooling shines. Designed to work seamlessly with Trumpf punching and laser cutting machines, these tools enable precise, high-speed fabrication of sheet metal components for OEMs and Tier 1 suppliers alike.



What Is Trumpf Tooling?

Trumpf tooling refers to the punches, dies, forming tools, strippers, and accessories specifically designed for Trumpf punch presses and combination machines. Trumpf tools are known for their:

High precision and tight manufacturing tolerances

Long tool life with advanced coatings and materials

Compatibility with automated tool change and tool ID systems

Support for complex forms such as louvers, embossments, and countersinks

Minimal tool setup time for improved productivity

Whether you’re producing structural brackets or body-in-white panels, Trumpf tooling delivers repeatable quality and faster turnaround times.



How Trumpf Tooling Supports Automotive Manufacturing

1. High-Speed Production with Consistent Accuracy

Automotive manufacturing lines are driven by output volume and efficiency. Trumpf tooling is designed to maintain accuracy even at high stroke rates, which is essential for mass production of components such as door beams, seat brackets, and HVAC components.

Using precision-ground punches and dies reduces tool deflection and ensures uniform hole diameters across thousands of cycles. Advanced coatings such as TiN or TiCN help resist wear and heat during continuous production runs.

2. Seamless Forming Capabilities

Forming operations are critical in automotive applications for creating stiffening ribs, louvers, and countersunk holes. Trumpf forming tools are engineered to perform these operations without distorting the base material or compromising part strength.

For example, using a Trumpf louver tool, a ventilation slit can be formed directly into a vehicle panel without the need for secondary operations like welding or riveting. This reduces both time and cost.

3. Rapid Tool Changes and Automation Integration

Modern Trumpf machines support automated tool changing and tool tracking via RFID or chip systems. Trumpf tooling is built to be compatible with these automation features, allowing for:

Reduced setup time between jobs

Accurate tool positioning and depth control

Automated maintenance alerts for worn tools

Fewer manual errors during production

These features are crucial in the automotive sector, where flexibility and speed-to-market are essential.

4. Support for Lightweight Materials

Today’s vehicles increasingly use aluminum, high-strength steel, and coated materials to meet fuel efficiency and emission regulations. These materials pose new challenges in punching and forming, including higher springback, abrasive wear, and heat generation.

Trumpf tooling addresses these challenges by offering:

Special geometries for soft or springy materials

Coatings to resist galling and sticking

High-performance materials such as powder metallurgy steel

With the right Trumpf-compatible tools, manufacturers can confidently process even the most demanding sheet metals.

5. Quality Control and Repeatability

One of the most important benefits of Trumpf tooling in the automotive industry is process repeatability. When every part must match within microns, even the slightest deviation can lead to downstream problems. Trumpf tools are designed and manufactured under strict quality standards to ensure consistent performance.

In combination with Trumpf’s CNC control systems and tool monitoring features, these tools help maintain quality assurance from the first to the millionth part.



Applications of Trumpf Tooling in the Automotive Industry

Trumpf tooling is widely used in a variety of automotive sheet metal components, including:

Chassis brackets

Battery enclosures and electric vehicle (EV) housings

Exhaust system shields

Dashboard frames

Seat tracks and mechanisms

Air conditioning ducts and HVAC enclosures

Crash sensor mounts and electronics housings

Each of these components requires tooling that delivers high precision, long life, and minimal setup time—three areas where Trumpf tooling consistently outperforms conventional options.



Why Choose OEM-Compatible Tooling from AFAB Tool Limited

While original Trumpf tooling offers unmatched performance, it can come with a higher price tag. That’s why many manufacturers are turning to OEM-compatible Trumpf tooling from trusted partners like AFAB Tool Limited.

AFAB Tool Limited produces a full range of Trumpf-style punches, dies, forming tools, and accessories that meet or exceed original equipment specifications. Their tools are used by automotive OEMs and fabricators across Europe, the Middle East, Southeast Asia, and North America.

Benefits of choosing AFAB Tool include:

OEM-level accuracy and performance

Competitive pricing for high-volume production

Custom tool development based on part drawings

Short lead times and fast global shipping

Expert technical support and tool selection assistance

Whether you’re running a Trumpf TruPunch 3000 or an older Trumpf turret punch, AFAB Tool provides the quality and consistency your automotive production line needs.

To learn more or request a quote, visit www.afabtool.com today.



Maintenance and Tool Care for Automotive Environments

Even the best tools require proper care. In the demanding environment of automotive production, routine maintenance helps ensure your Trumpf tooling performs at its best. Key practices include:

Regular cleaning and lubrication of punch and die surfaces

Sharpening tools before they become dull

Replacing worn springs, strippers, or guide elements

Keeping detailed logs of tool usage and regrinding history

Using proper tool storage systems to prevent damage

Well-maintained tools reduce downtime, minimize scrap, and support overall equipment effectiveness (OEE).



Final Thoughts

In an industry where precision, efficiency, and quality are paramount, Trumpf tooling plays a pivotal role in automotive sheet metal fabrication. From bracket punching to advanced forming operations, these tools help manufacturers meet strict standards and maintain a competitive edge.

For companies looking to balance cost, performance, and reliability, OEM-compatible tools from AFAB Tool Limited provide an ideal solution. Backed by years of experience, global delivery capability, and engineering support, AFAB is your trusted partner for Trumpf tooling in the automotive industry.

To explore the full product line or speak with an expert, visit www.afabtool.com and take your automotive production capabilities to the next level.
