In high-precision sheet metal fabrication, achieving pristine surface finishes while maintaining high throughput is a constant challenge. Traditional sheet metal flaring methods frequently restrict production speeds and compromise quality by leaving unsightly micro-scratches and friction marks on the material surface. For shops processing delicate or high-end materials, these surface imperfections lead to costly secondary deburring, polishing, or outright part rejections.

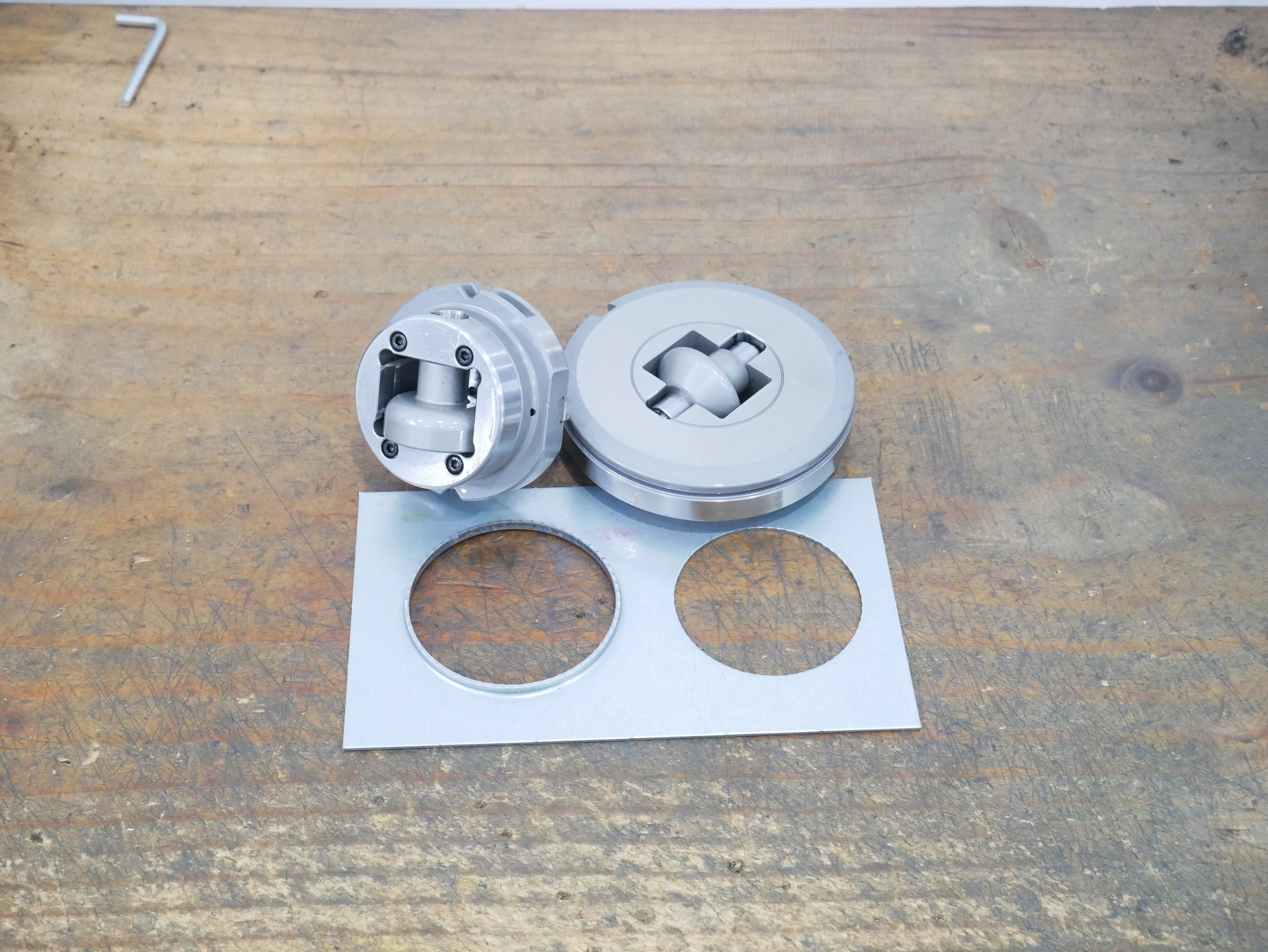

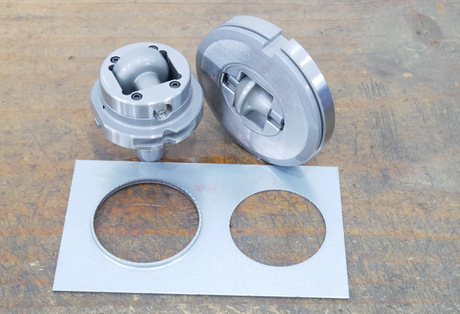

To overcome these production bottlenecks, advanced CNC punch press technology now leverages continuous rolling mechanics. The next-generation Rolling Flare Wheel Tool (widely recognized as the Rolling Flared Edge Tool) is specifically engineered for high-performance flared edge punch press forming applications, completely redefining how fabricators execute industrial sheet metal finishing. Our trumpf rolling flare tool
Standard punch press forming and flaring operations rely heavily on upper and lower shear stamping or traditional stroke-based progressive tools. This conventional dynamic forces the tool to punch down and slide under high pressure against the stationary material. This intense friction often induces tool galling and micro-tears on the metal surface.
The risk multiplies exponentially when processing sensitive sheet metal alloys, including:
Architectural and aerospace-grade aluminum sheets
Polished or brushed stainless steel workpieces
Pre-painted, coated, or galvanized sheet metals
The engineered Rolling Flare Wheel Tool eliminates sliding friction by replacing standard static forming components with high-precision, heavy-duty roller bearings. Rather than rubbing or scraping against the metal substrate, the specialized tool smoothly glides along the edge of the sheet. The localized mechanical force is applied via continuous rolling contact, stretching and shaping the metal seamlessly into a perfect, uniform flare with zero friction-induced scratches
Flawless Surface Quality: The uniform rolling physics delivers a flawless, pristine, scratch-free finish. This cuts down operational overhead by completely eliminating secondary manual deburring, grinding, or polishing cycles.
Ultimate Geometric Flexibility: Unlike rigid stamping dies, the rolling wheel system adapts seamlessly to diverse toolpaths. Operators can easily form precise flared edges along linear trajectories, large radii, and highly complex, tight contours.
High-Speed Productivity: This tooling fully integrates into modern CNC punch presses, enabling the machine to utilize continuous, fluid axes movements rather than segmented strokes, drastically reducing cycle times.
Premium Industrial Durability: Machined exclusively from ultra-premium, wear-resistant tool steel alloys, the tool is hardened to withstand high-volume, repetitive industrial manufacturing campaigns without losing dimensional accuracy.
Advanced CNC Compatibility: This precision tooling is explicitly designed to apply to premium Trumpf punch press machinery equipped with dedicated wheel function software control capabilities.
Executing an optimal flared form without causing internal material stress or severe sheet deformation requires a strategic, multi-pass approach. In typical industrial applications, a three-pass forming sequence yields the most stable results.

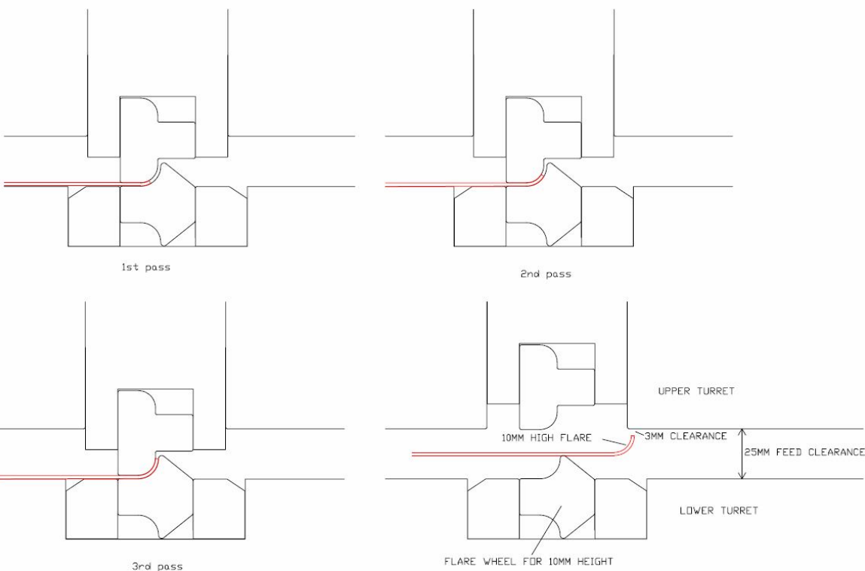

During the forming operation, as illustrated in technical specifications, the wheel gradually forms the contour over three distinct movements. At the terminal point of the toolpath, the wheel rolls completely off the material boundary. While this disengagement path can induce a minor, localized physical distortion at the absolute start and ending points of the run, the variance remains well within standard industry tolerances and is easily accommodated in nesting layouts
Clearance & Safety Parameters: To guarantee absolute mechanical safety, always maintain an approximate clearance gap of 0.5” (12.7 mm) entirely around the protruding lower die. Programmers must exercise extreme caution during high-speed sheet feeding movements to prevent the raw sheet metal from colliding with the elevated profile of the tall die.
Forming Path Strategy: Implementing a strict three-pass method using alternating left-to-right bidirectional movements ensures optimal stress distribution and minimal material warping. Fabricators must avoid a compressed two-pass approach; applying excessive initial forming force causes severe material bowing, sheet feeding jams, and catastrophic machine crashing issues.
Precision Circular Flanges: For flanged circular openings, the CNC program must command a highly specific three-pass routine: the rolling tool lowers vertically into the pre-punched opening, gradually feeds radially into the material edge, and completes a full 360° continuous path. This cycle repeats exactly three times, increasing depth incrementally to achieve a perfect, concentric, burr-free flange.
Visualizing the seamless motion of high-speed rolling forming helps optimize programming paths. Check out our real-time manufacturing and implementation demonstration video on YouTube to view the machine setup, programming controls, and live cutting results:
Whether you are seeking to maximize your workshop's daily cycle efficiency or deliver pristine, premium-grade components to high-tier industrial clients, the Rolling Flare Wheel Tool is an indispensable addition to your sheet metal fabrication setup.
