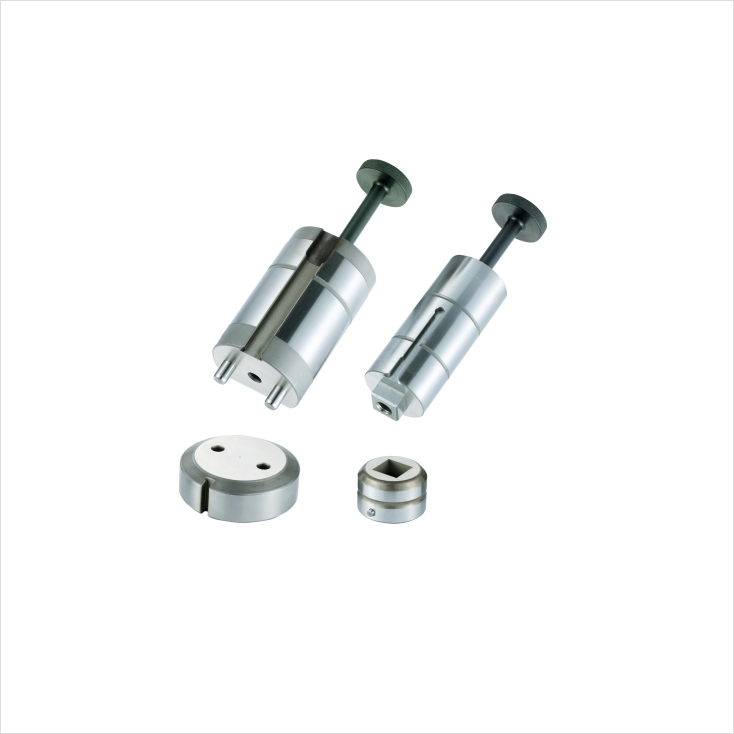

Thick Turret Alignment Tool

The Alignment Tool allows users to align parts next to each other at a specific distance and angle. This is particularly useful in applications where multiple parts need to be precisely positioned relative to each other

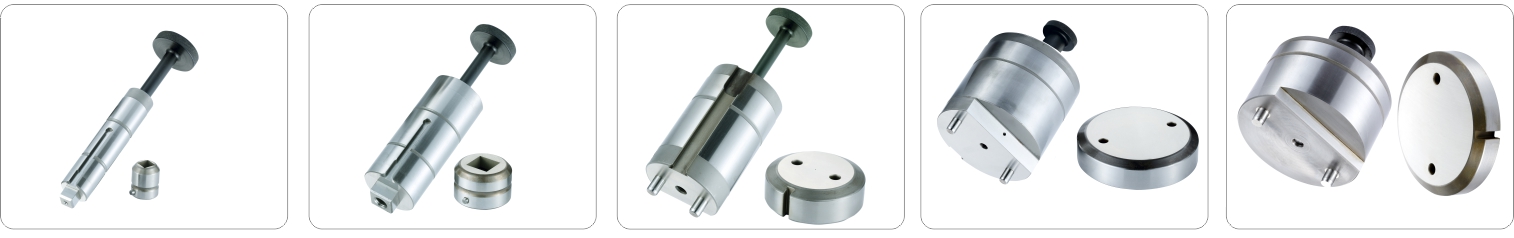

A.B.C.D.E station tools adjust upper turret and lower turret.Ensure the precision.

Benefits

• Increased Precision: The Alignment Tool ensures that parts are precisely positioned relative to each other, reducing errors and improving overall quality.
• Time Savings: By automating the alignment process, the tool reduces the time required for manual adjustments and increases productivity.
• Flexibility: The tool allows for adjustments in both distance and angle, providing flexibility to meet various manufacturing requirements.

How to Use the Alignment Tool

1. Select the Alignment Option:
• Access the Alignment Tool from the Sheet menu.
2. Place Markers:
• Click on the stationary part to place a marker. Drag the crosshairs to the desired position and click to finalize. Repeat the process for the part to be moved.
3. Specify Distance and Angle:
• After placing the markers, enter the desired distance and angle in the Distance dialog that appears. Click OK to finalize the settings.
4. Adjust Alignment Type:
• Enter the alignment type and click OK. The system will automatically move the second part into the specified position.
