Product Advantage

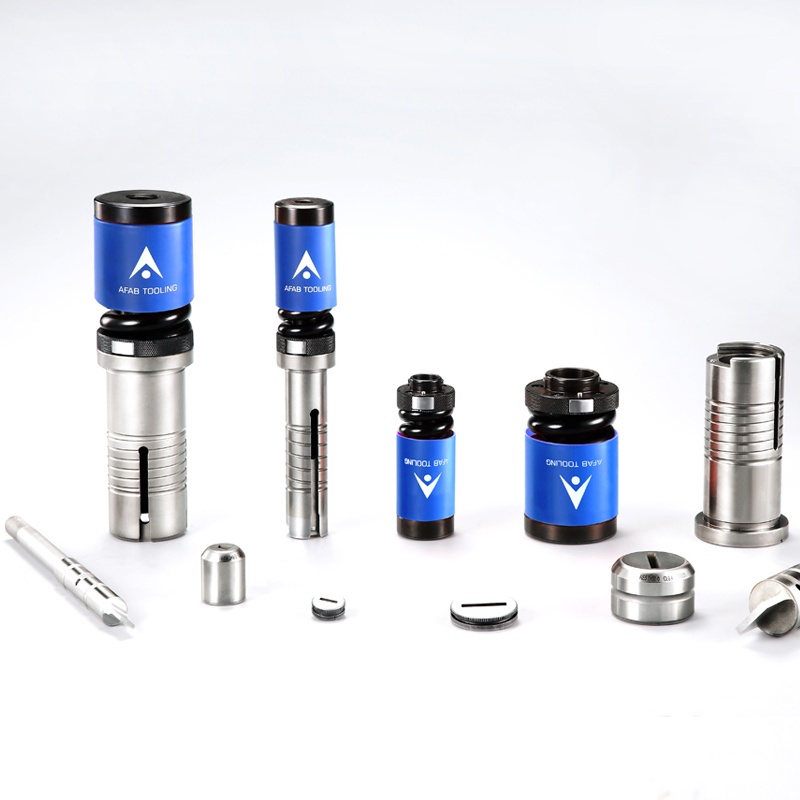

The THICK TURRET AMADA FAB 2 punching tool offers a range of advanced features and benefits that enhance the efficiency and performance of sheet metal processing. Here are the key advantages and distinctive characteristics of this punching tool:
Quick and Easy Setup: The FAB 2 tooling system allows for tool-free height adjustment without guide removal by push button, making the setup process faster and easier.
Enhanced Durability: The solid punch body of the FAB 2 provides rigidity and robustness, ensuring long-term reliability and performance. It also allows for the use of existing solid punch bodies in Basic or FAB type. Solid guide optional. Advise open guide with stripper.
Max sharpening Value: The punch grinding amount is increased to 6.5 mm for A.B stations, which means these punching tools can handle thicker materials with ease.
Stripper quick setup: Guide is open type and universal part which can save cost, stripper changed with size and shape installed by hand pushing.
Wide compatible with OEM: Compatible with thick turret AMADA NEX 3 of punching tool.
No need tool to disassemble or assembly: Just press button can exchange punch,stripper. No need tools to operate. No need any shims after adjusting.
Technical Parameters
| Length for punch assembly | 209.5mm | Guide material | 40Cr |
| Punch body length | 207.5mm | Guide HRC | 46 DEG |
| Punch body material | high speed steel/M2 | Die height | 30mm |
| Punch body HRC | 60-64 DEG | Die material | D2 |
| Punch surface finish | 0.8μm Ra | Die HRC | 58-60 DEG |
| Punch Guide concentricity | +-0.015mm | Punch grinding life | 2mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.5mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN-optional |
Product Uses
OEM Compatible Design: The Basic Style Thick Turret Tooling for AMADA 85 from AFAB is fully compatible with OEM systems, ensuring seamless integration with leading CNC turret punch presses such as AMADA, Primapower, and LVD. This compatibility guarantees a hassle-free upgrade or replacement for your existing tooling, saving time and cost.
Cost-Effective Tooling Solution: Designed as an economic tooling option, this punch tool offers significant cost savings without compromising on performance. It is ideal for businesses looking to minimize investment while maximizing efficiency in high-volume production environments.
Premium Punch Precision: Features long punches with high precision, achieving an impressive hardness range of HRC 60-64. The 207.5mm punch length ensures optimal cutting performance, delivering high accuracy with every operation, reducing the need for rework and improving production consistency.
Flexible Punch Head Design: Equipped with round punch heads that include two thread holes for easy rotation in both 1/2" A and 1-1/4" B stations. This flexible design allows users to efficiently manage tool wear and extend the lifespan of the tooling, minimizing downtime during setup changes.
Durable Hardened Guides for Extended Service Life: The tooling is equipped with hardened guides that reduce friction, enhancing tool longevity and ensuring smoother operation. Available in round guides with a single slot and shape guides with 0-90 degree slots, these guides provide exceptional durability and superior precision, minimizing the risk of tool wear and breakdowns.
Regrindable Punch and Die: The punch body has a regrinding life of 2.0mm, and the die regrinds up to 2.5mm, ensuring long-term usability. This feature significantly extends the tool’s service life, providing a cost-effective and eco-friendly solution for businesses that require frequent tool maintenance and regrinding.
Product Operate Guide
1.Press button on guide,turn guide to adjust punch length.
2.Rotate guide, let mark of guide and spring pack in same position.
3.Pull out guide, remove guide.
4.Turn punch body, remove guide.
