Slug ejector fitted on the end for more than diameter 6mm and width 6mm punch body.Punch becomes weaker in the case of less than 6mm diameter or width
Feature
1.Material: Made from urethane

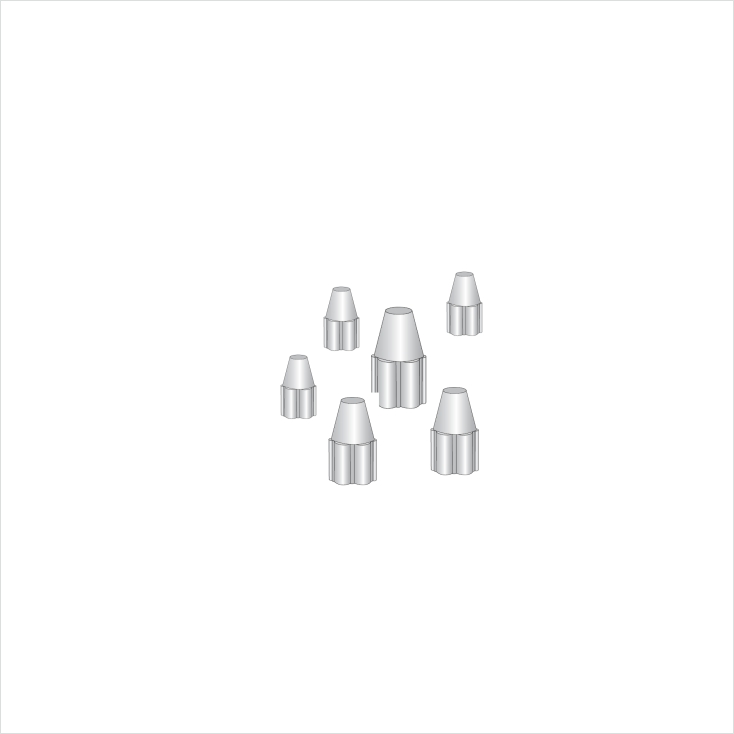

2.Design: The Slug Ejector is a plastic component attached to the punch tip

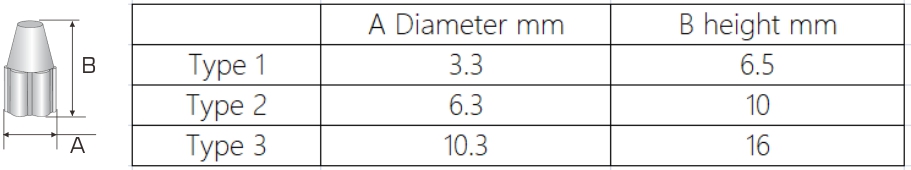

3.Size Range: Available in various sizes to fit different punch diameters, from A(1/2) to E(41/2)
Application
1.Function: During the punching process, the Slug Ejector pushes the scrap material down through the die, ensuring that the slug is separated from the punch and avoiding it being dragged back onto the sheet.
2.Compatibility: Suitable for Amada machines and other compatible punch presses.
3.Usage: Essential for punches with a diameter greater than 6.0mm or width of 6.0mm
Advantage
1.Prevents Scrap Reattachment: Ensures that the scrap material is pushed down and separated from the punch, preventing it from reattaching to the sheet and causing defects.
2.Reduces Tool Wear: By ensuring proper ejection of the slug, it reduces the wear on the punch and die, extending tool life.
3.Improves Part Quality: Prevents scratches and damage to the workpiece by ensuring smooth ejection of the slug.
4.Enhances Process Reliability: Ensures higher process reliability by reliably ejecting slugs during high-speed punching operations
