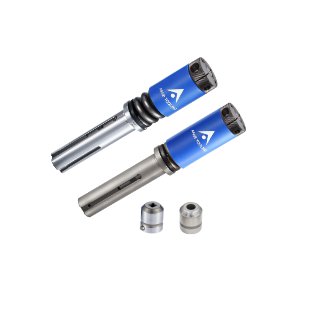

The Basic Type Thick Turret Tooling is a fundamental yet effective solution for metalworking operations involving thick materials. It is designed to offer a balance between cost, performance, and ease of use. The tooling components are manufactured with attention to detail to ensure their functionality and durability. The materials used are carefully selected to provide the necessary strength and resistance to wear during metalworking processes. The Basic Type Thick Turret Tooling has a straightforward design that makes it accessible to a wide range of users, from small-scale artisans to larger manufacturing facilities. It is compatible with various turret punch press models, allowing for flexibility in production setups.
1. Balanced Performance: The Basic Type Thick Turret Tooling offers a balanced performance that meets the needs of many metalworking applications. It can handle basic tasks with reasonable precision and efficiency, providing a cost-effective solution for businesses.
2. Durable Construction: Despite its basic nature, the tooling is built to last. The use of quality materials and proper manufacturing techniques ensures its durability, allowing it to withstand the rigors of regular metalworking operations.
3. Ease of Integration: It can be easily integrated into existing metalworking setups. Whether you have a simple workshop or a more complex manufacturing facility, the Basic Type Thick Turret Tooling can be installed and used with minimal hassle.
4. Training-Friendly: Due to its simple design and operation, the tooling is easy to train new operators on. This reduces the learning curve and enables businesses to quickly get new staff up to speed with using the tooling effectively.
1. Sheet Metal Prototyping: For businesses involved in sheet metal prototyping, the Basic Type Thick Turret Tooling can be used to quickly create prototypes of metal components. Its simplicity and ease of use make it a practical choice for this stage of product development.
2. Small-Scale Metal Art Projects: In the realm of small-scale metal art projects, such as creating sculptures, decorative pieces, and custom metal artworks, this tooling can be used to shape and punch metal sheets. Its affordability allows artists and hobbyists to explore their creativity without a large investment in tooling.
3. General Metal Repair and Restoration: In metal repair and restoration work, the Basic Type Thick Turret Tooling can be used to fabricate replacement parts or modify existing metal structures. Its ability to handle thick materials makes it suitable for these types of projects.
4. Metal Signage Production: For the production of metal signage, which often involves working with thick metal sheets, this tooling can be used to create the necessary shapes and cutouts. It provides a reliable and cost-effective solution for metal signage manufacturers.

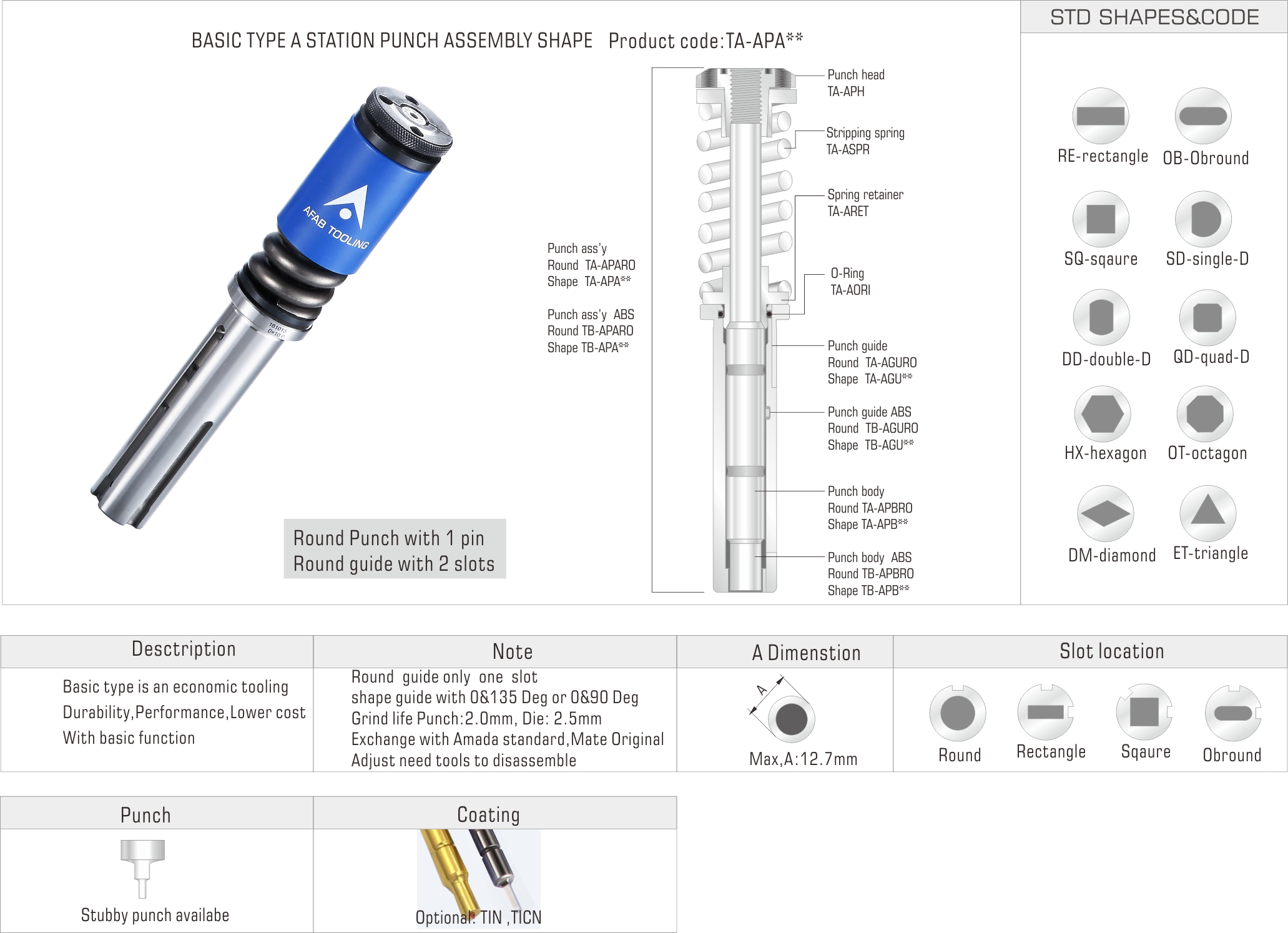

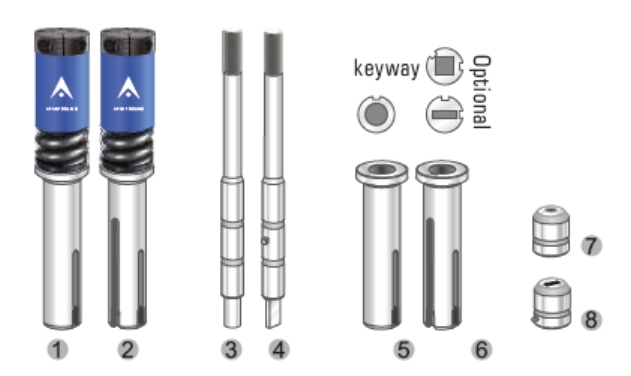

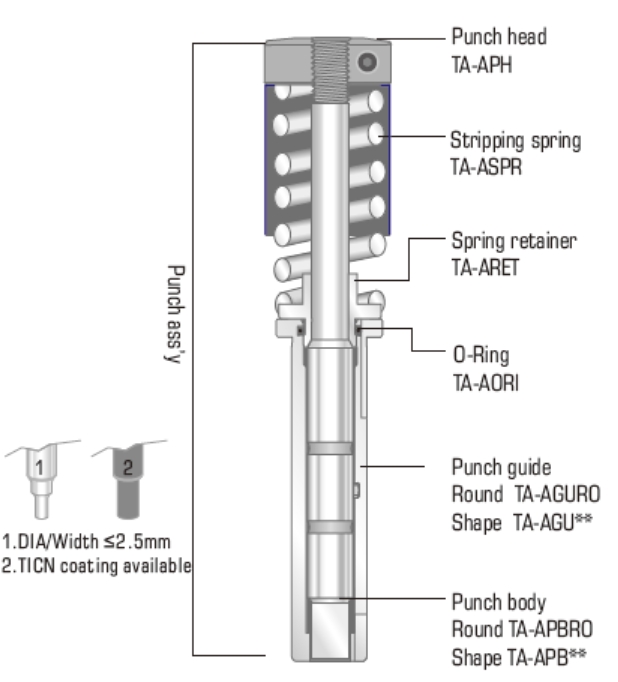

A station Product Structure Diagram
 |  |
*Max.Allowable Tonnage:6 Tonne *Max.Thicknesss 4.0mmMS,3.0mm SS *Min. Dia/Width: AL 0.75xT,MS 1.0xT. SS 2.0xT *Ejector for size >6mm | Die pin location and shape code
|
Tooling parameter
| Length for punch assembly | 209.5mm | Punch surface finish | 0.8μm Ra |
| Punch body length | 207.5mm | Die height | 30mm |
| Punch body material | high speed steel/M2 | Die material | D2 |
| Punch body HRC | 60-64 DEG | Die HRC | 58-60 DEG |
| Punch Shank Size | 15.88mm | Die Outer Diameter | 25.4mm |
| Punch Guide Outer Dia. | 25.91mm | Punch grinding life | 2mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.5mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN-optional |
Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | Anti slug2 | |
Die clearance
Die clearance of punch tools refers to the gap between the cutting edge of the punch and the corresponding edge of the die
in a press tool
TIN,TICN,DLC coating
The coating function for punch tooling is primarily to enhance performance and increase the longevity of the tooling.
Here are some key functions and benefits of coatings for punch tooling:
1. Improved Wear Resistance 2. Reduced Friction 3. Enhanced Lubricity 4. Corrosion Resistance
5. High-Temperature Stability 6. Increased Surface Hardness 7. Better Surface Finish 8. Cost-Effective
Air Blow system Tooling
The air blow system in thick turret tooling plays a crucial role in enhancing tool performance, extending tool life, improving part
quality, and reducing maintenance requirements. It is an integral part of modern turret punch press tooling systems
The system supplies an air/oil mixture to lubricate critical components of the tooling, including the punch body, guide channels,
and punch tip.This internal and external lubrication reduces friction, prevents galling, and extends the life of the punch and die
