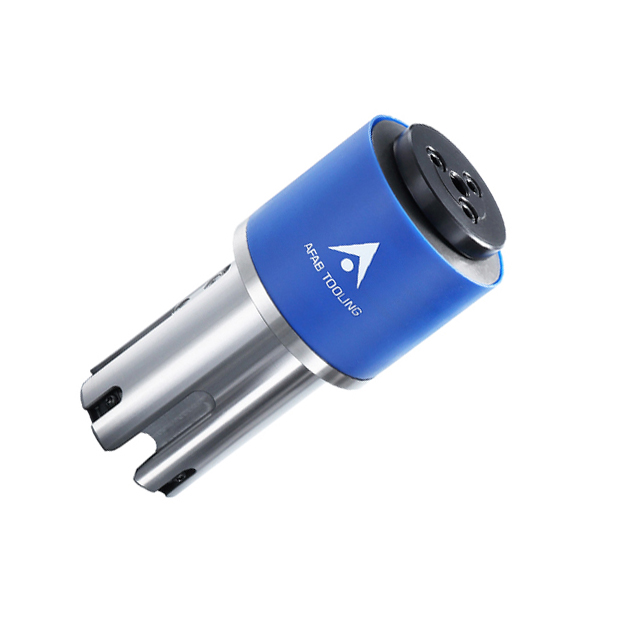

The Basic Type Thick Turret Tooling is a reliable and cost-effective solution for metalworking operations that involve thick materials. Engineered to provide consistent performance, this tooling is an excellent choice for both small-scale workshops and large manufacturing facilities. The components of the Basic Type Thick Turret Tooling are made from high-quality materials that offer good strength and durability. While it may not have all the advanced features of more specialized tooling, it provides a solid foundation for basic metalworking tasks. The design is simple yet effective, ensuring easy integration with a variety of turret punch presses. With its straightforward operation, even novice operators can quickly get up to speed with using this tooling.
* Economic tooling,Big saving
* Long punches,M2-high speed steel material, Coating avaible
* Punch with metric M12 thread in 2" C station
* Hard guides for reduced friction and longer service life
* Punch body sharpening life only 2.0mm
1. Cost-Effective: The Basic Type Thick Turret Tooling offers a budget-friendly option without sacrificing quality. It provides a reliable performance at an affordable price, making it accessible to a wide range of metalworking businesses.
2. Good Durability: Constructed from quality materials, the tooling can withstand the rigors of regular metalworking operations. It has a reasonable lifespan, reducing the need for frequent replacements and keeping maintenance costs in check.
3. Simple Installation: The tooling is designed for easy installation on turret punch presses. Its intuitive design allows for quick setup, minimizing the time required to start production.
4. Versatility for Basic Tasks: Although it is a basic tooling option, it is still capable of handling a variety of basic metalworking tasks such as punching holes, notching, and simple shaping of thick metal sheets. It can work with common materials like mild steel and aluminum.
1. Small Metal Fabrication Shops: For small metal fabrication shops with limited budgets, the Basic Type Thick Turret Tooling is a practical choice. It enables them to take on a range of projects, from creating simple metal brackets and frames to basic sheet metal enclosures.
2. DIY and Hobbyist Projects: DIY enthusiasts and hobbyists who work with thick metal materials can benefit from this tooling. It allows them to bring their creative ideas to life, whether it's building custom metal furniture or decorative items.
3. General Maintenance and Repair Work: In maintenance and repair operations, the Basic Type Thick Turret Tooling can be used to fabricate replacement parts or modify existing metal components. Its simplicity and ease of use make it suitable for on-site repairs.
4. Light Industrial Applications: In light industrial settings, such as the production of small metal products like tools, hardware, and small machinery parts, this tooling can be used to perform the necessary metalworking operations efficiently.

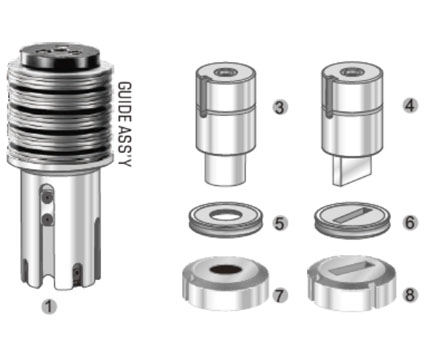

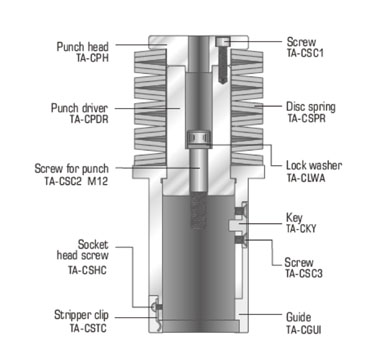

C station Product Structure Diagram
 |  |
*Max.force Tonnage:16 Tonne *Max.sheet thicknesss 6.35mmMS, 3.0mm SS *Min. Dia/Width: AL 0.75xT,MS 1.0xT. SS 2.0xT *PU ejector for size >6mm |
|
Tooling parameter
| Length for guide assembly | 209.0mm | Punch surface finish | 0.8μm Ra |
| Punch body length | 96.0mm | Die height | 30.0mm |
| Punch body material | SKH51 /M2/MP4 | Die material | D2/SKD 11 |
| Punch body HRC | 60-64 DEG | Die HRC | 58-60 DEG |
| Punch Shank Size | 51.0mm | Die Outer Diameter | 88.89mm |
| Punch Guide Outer Dia. | 69.85mm | Punch grinding life | 2.5mm |
| accuracy for shape | +0.00 ~+0.02mm | Die grinding life | 2.50mm |
| accuracy for size | +0.00 ~+0.02mm | Punch coating | TICN,TIN-optional |

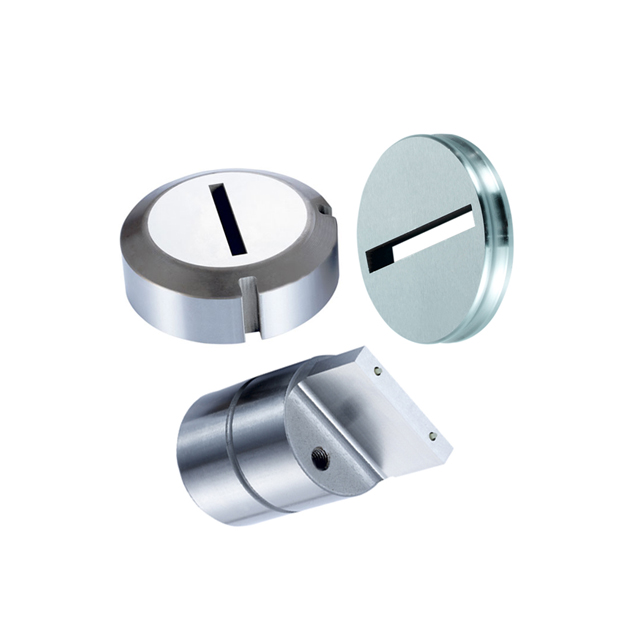

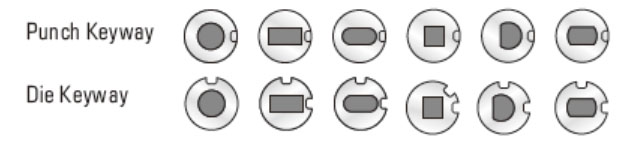

Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | Anti slug2 | |
Die clearance
Proper die clearance is essential for achieving high-quality, efficient punching operations. By considering the material type, thickness, and tooling condition, you can determine the optimal clearance for your specific application. Using the recommended clearance values and calculation methods ensures clean cuts, extended tool life, and reduced operational costs
TIN,TICN,DLC coating
The coating function for punch tooling is primarily to enhance performance and increase the longevity of the tooling. TiCN (Titanium Carbo-Nitride) coating is a popular choice for punch bodies due to its excellent wear resistance, high hardness, and low friction coefficient.
Here are some key functions and benefits of coatings for punch tooling:
1. Improved Wear Resistance 2. Reduced Friction 3. Enhanced Lubricity 4. Corrosion Resistance
5. High-Temperature Stability 6. Increased Surface Hardness 7. Better Surface Finish 8. Cost-Effective
