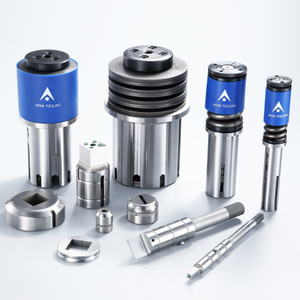

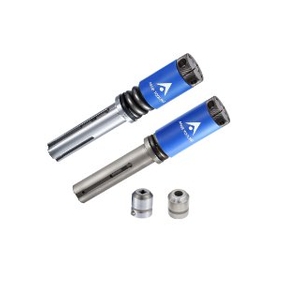

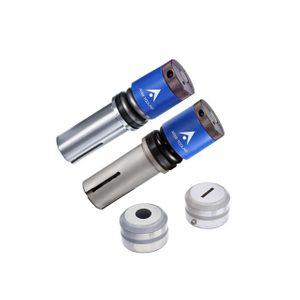

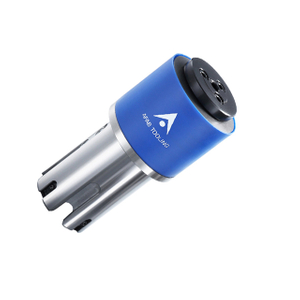

The Basic Type Thick Turret Tooling is a dependable and user-friendly option for metalworking with thick materials. It has been designed with a focus on simplicity and functionality, providing a practical solution for various metal fabrication needs. The tooling is made up of components that are carefully crafted to ensure reliable performance. The materials used are selected for their ability to withstand the forces involved in punching and shaping thick metal sheets. The Basic Type Thick Turret Tooling is compatible with a wide range of turret punch presses, making it a versatile choice for different manufacturing setups. Despite its basic nature, it offers a level of precision that is sufficient for many common metalworking applications.
1. User-Friendly Operation: The tooling is designed with simplicity in mind, making it easy for operators of all skill levels to use. The straightforward design and clear instructions ensure that even those new to metalworking can quickly master its operation.
2. Decent Precision: While it may not offer the ultra-high precision of more advanced tooling, the Basic Type Thick Turret Tooling provides a reasonable level of accuracy for basic metalworking tasks. This allows for the production of parts that meet the requirements of many applications.
3. Wide Material Compatibility: It can work with a variety of common thick materials, including carbon steel, galvanized steel, and some non-ferrous metals. This versatility makes it suitable for different types of projects and industries.
4. Low Maintenance: The simple construction of the tooling means that it requires minimal maintenance. Regular cleaning and basic checks are usually sufficient to keep it in good working condition, reducing the overall cost of ownership.
1. Agricultural Equipment Manufacturing: In the production of agricultural equipment such as plows, harrows, and trailers, the Basic Type Thick Turret Tooling can be used to fabricate components. It can create the necessary holes and shapes for assembling parts that are essential for the functionality of agricultural machinery.
2. Metal Furniture Production: For manufacturers of metal furniture, this tooling is useful for creating parts like table legs, chair frames, and cabinet components. Its ability to handle thick metal sheets and provide decent precision helps in producing sturdy and well-made furniture pieces.
3. HVAC Ductwork Fabrication: In the HVAC industry, the Basic Type Thick Turret Tooling can be employed to fabricate ductwork components. It can punch holes and make cuts in thick metal sheets to create the ducts that are essential for heating, ventilation, and air conditioning systems.
4. General Metal Component Manufacturing: In industries that produce a wide range of general metal components, such as fasteners, brackets, and connectors, this tooling can be used to perform the basic metalworking operations required for their production.

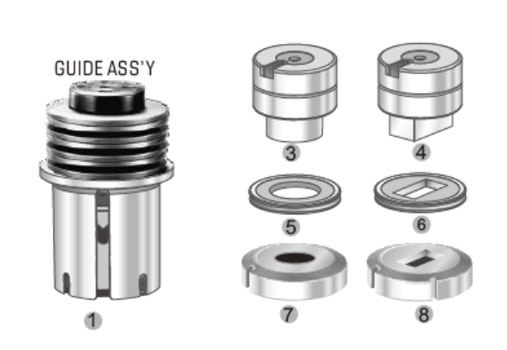

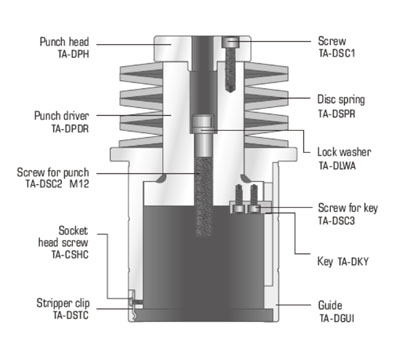

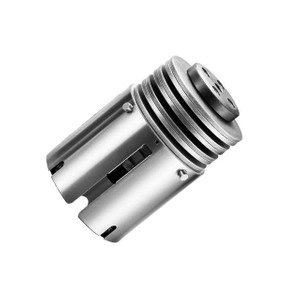

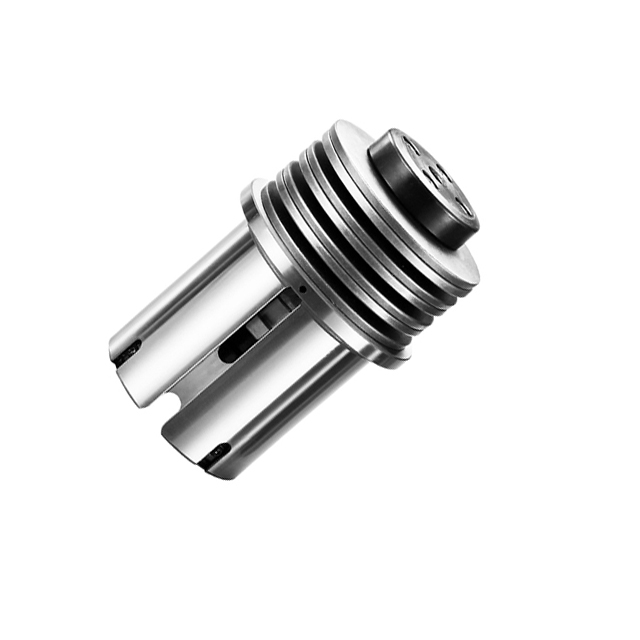

D station Product Structure Diagram
 |  |
*Max.force Tonnage:16 Tonne *Max.sheet thicknesss 6.35mmMS, 3.0mm SS *Min. Dia/Width: AL 0.75xT,MS 1.0xT. SS 2.0xT *PU ejector for size >6mm |
|
Tooling parameter
| Length for guide assembly | 211mm | Punch surface finish | 0.8μm Ra |
| Punch body length | 84.0mm | Die height | 30.0mm |
| Punch body material | SKH51 /M2/MP4 | Die material | D2/SKD 11 |
| Punch body HRC | 60-64 DEG | Die HRC | 58-60 DEG |
| Punch Shank Size | 89.41mm | Die Outer Diameter | 125.43mm |
| Punch Guide Outer Dia. | 111.25mm | Punch grinding life | 2.5mm |

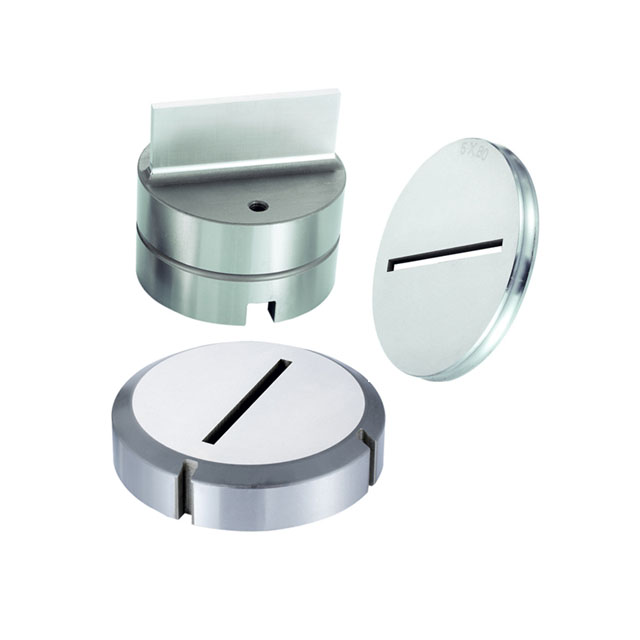

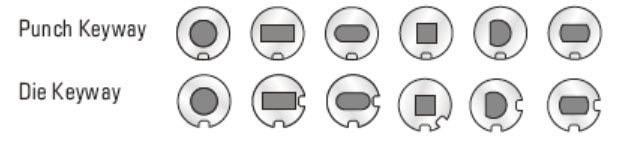

Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | Anti slug2 | |
Die clearance
Proper die clearance is essential for achieving high-quality, efficient punching operations. By considering the material type, thickness, and tooling condition, you can determine the optimal clearance for your specific application. Using the recommended clearance values and calculation methods ensures clean cuts, extended tool life, and reduced operational costs
TIN,TICN,DLC coating
The coating function for punch tooling is primarily to enhance performance and increase the longevity of the tooling. TiN (Titanium Nitride) coating is a widely used surface treatment for punch bodies due to its excellent wear resistance, low friction, and inertness. It is particularly effective in extending tool life and improving the efficiency of punching operations.
Here are some key functions and benefits of coatings for punch tooling:
1. Improved Wear Resistance 2. Reduced Friction 3. Enhanced Lubricity 4. Corrosion Resistance
5. High-Temperature Stability 6. Increased Surface Hardness 7. Better Surface Finish 8. Cost-Effective
