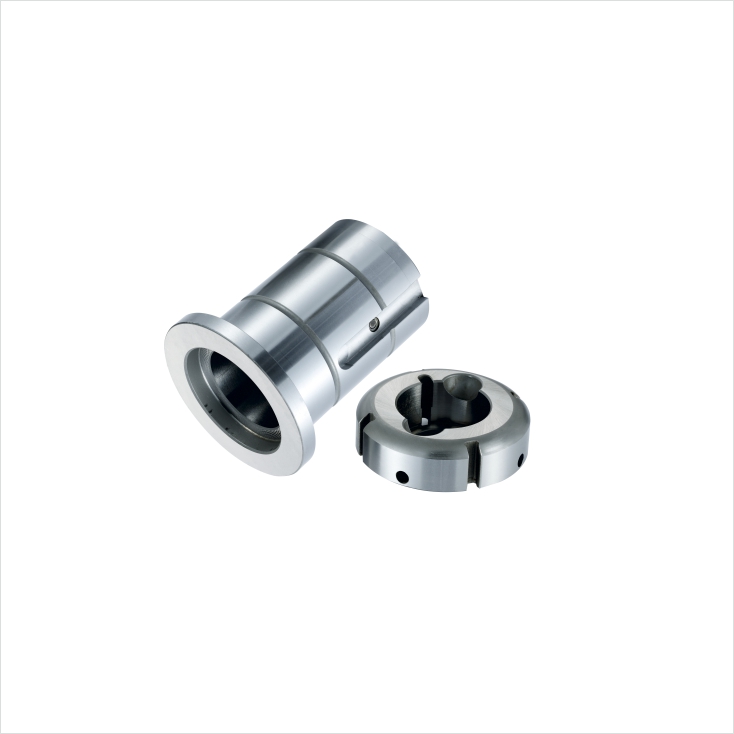

The adaptor loaded in thick turret of punch press machine, Apply to use the smaller station tooling into bigger turret station. Eg B station tooling put in D-B adaptor, then install it in D station
A Thick Turret Station Adapter is a precision-engineered component that allows you to use a smaller tool (punch and die) in a larger machine station.
Thick turret machines (like Amada, Finn-Power, LVD, etc.) use standardized station sizes, commonly labeled A, B, C, D, and E. Without an adapter, a "B" station tool cannot fit into a "D" station slot.
Technical Functionality
The adapter serves as a mechanical "sleeve" or "shim" that fills the gap between the tool and the machine's turret bore.
1. Punch Adapter (Upper)
The upper adapter holds the punch guide and assembly. It ensures that the machine’s ram strikes the center of the smaller tool accurately.
Common Conversions: D-to-B station, C-to-B station, or B-to-A station.
Alignment: It includes keyways or pins to ensure the punch is oriented correctly (0°, 90°, etc.).
2. Die Adapter (Lower)
The lower adapter (sometimes called a die reducer) fits into the larger die holder in the turret and provides a secure, centered seat for the smaller die.
Stability: It must be built with high-quality tool steel to withstand the same tonnage as the larger station.
Slug Management: Good adapters feature clear paths for slugs to drop through, preventing "slug pulling" or build-up.
3.Why Use a Station Adapter?
*Inventory Flexibility.Use your existing library of B-station tools in a machine that has open D or C stations.
*Cost Savings.Smaller tools (A and B) are significantly cheaper than large station tools (D and E). If the hole you need is small, using an adapter saves money on the tool itself.
*Setup Optimization.If your B-stations are full, you don't have to stop the machine to swap tools; you can simply adapt the tool to an empty larger station.
*Increased Capacity.Some adapters allow "Multi-Tools" (e.g., a 3-station B-size tool inside a D-station), effectively giving you more tools in the turret.
4.Key Maintenance Tip
Because adapters introduce an extra "interface" between the machine and the tool, cleanliness is critical. A tiny piece of metal scrap trapped between the adapter and the station bore can cause the punch to hit off-center, leading to shattered tools or damage to the machine's turret.
