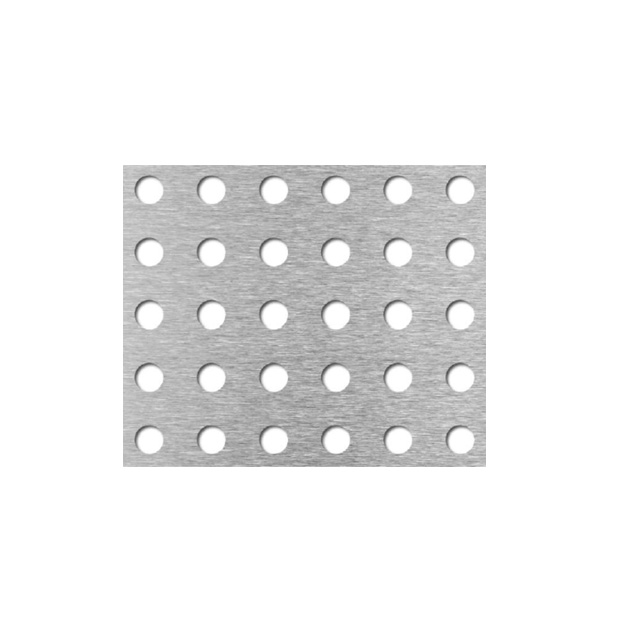

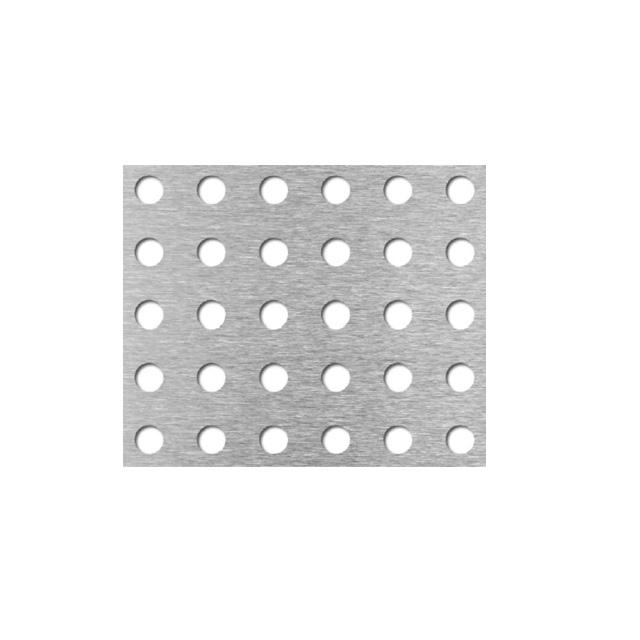

To ensure the strength of the cluster die,Round perforated cluster tool must have a minimum hole margin
of 3mm and twice the thickness of the plate, or greater.
Trumpf Cluster Features:
1. Reduce the number of punching strokes, save processing time and tooling maintenance time
2. Compared with single-hole, it can reduce the stress that deforms the material;
3. Ensure the accuracy of the interval between the holes;

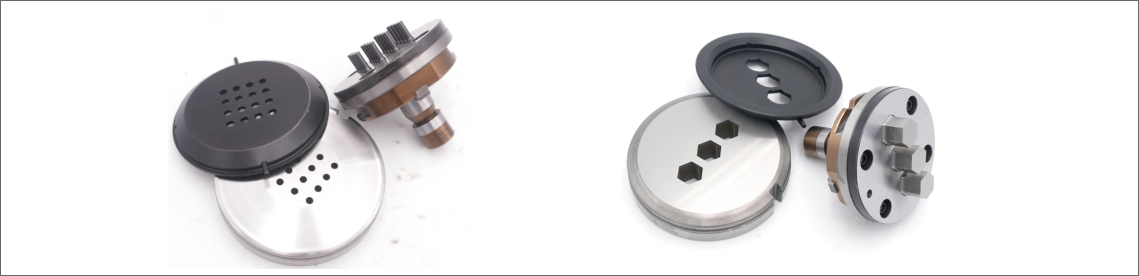

4. Most of the perforated cluster adopt the replacable insert structure, which reduces the cost of replacing insert

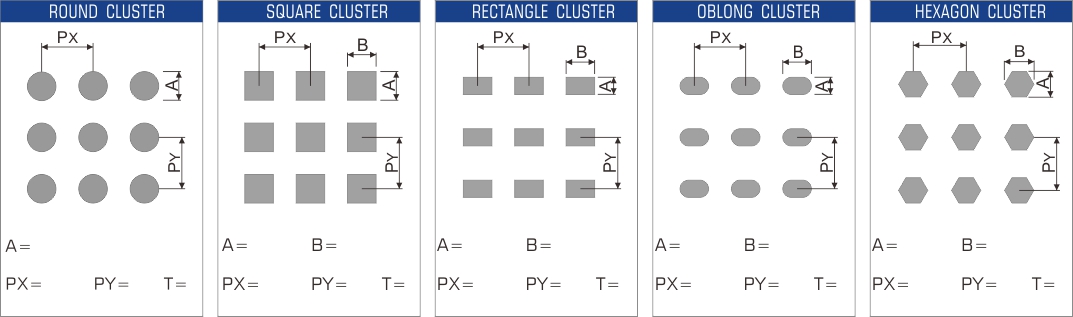

Trumpf cluster tool shape size can be customized, drawing or layout required

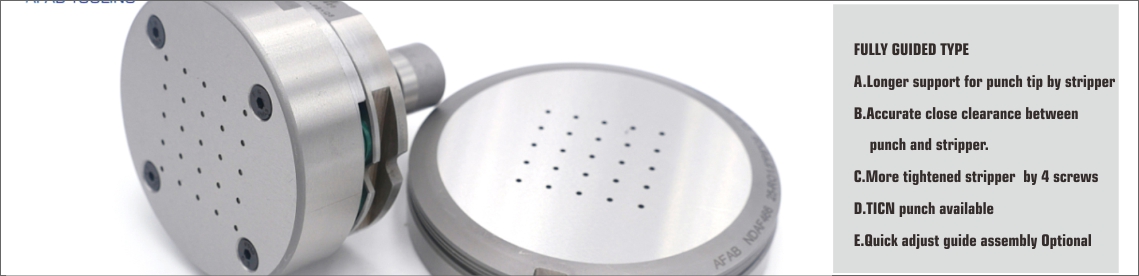

Trumpf cluster fully guided type is helpful to punch holes of smaller 3.0mm or width less 3.0mm
