The TRUMPF Fully Guided Type Tooling designed for special application of small hole or narrow punch. It improve punch life ,Prevent insert breaking effectively

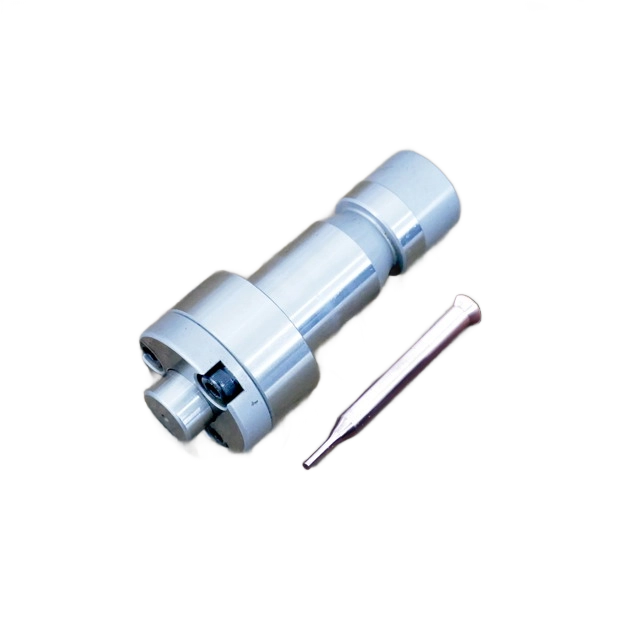

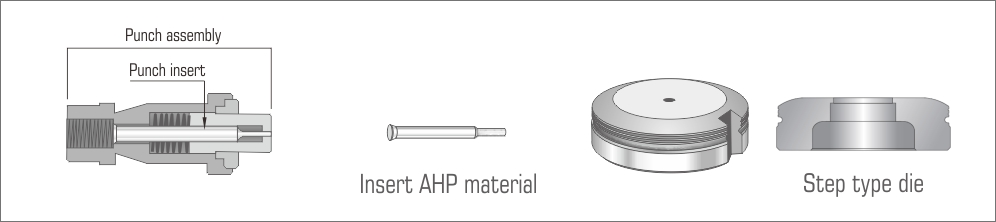

Round Fully Guided Tool,Only for diameter smaller 3.0mm
*Advise TICN coating to extend punch life
*Punch size dia.0.8-3.0mm
*Max.Thickness≤2.0mm MS,≤1.0mm SS
*Min. Dia/Width: AL 0.75xT, MS 1.0xT, SS 2.0xT
*Close clearance between punch and stripper
*Stripper supply more thick support

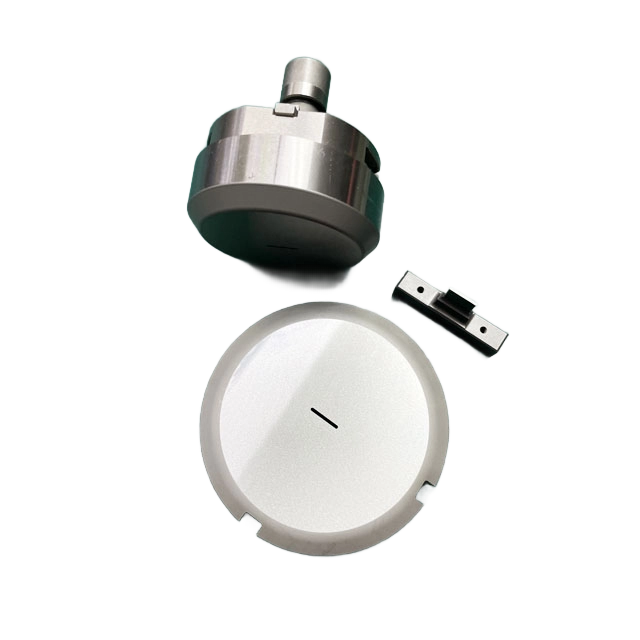

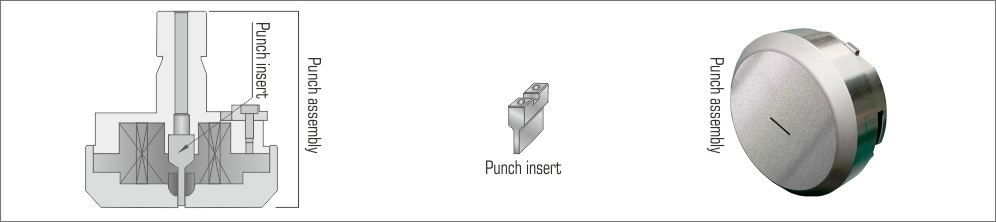

Shape Fully Guided Tool, Only for shape narraw size
*TICN coating recommanded
*Length size:3-28mm Width size: 0.8-3mm
*Punch sheet metal: Max.Thickness≤2.0mm MS,≤1.0mm SS
*Rate for hole size and thickess:Min. Dia/Width: AL 0.75xT, MS 1.0xT, SS 2.0xT
* Popular shape is rectangle,others Oblong,dovetail,trapezoid available.
