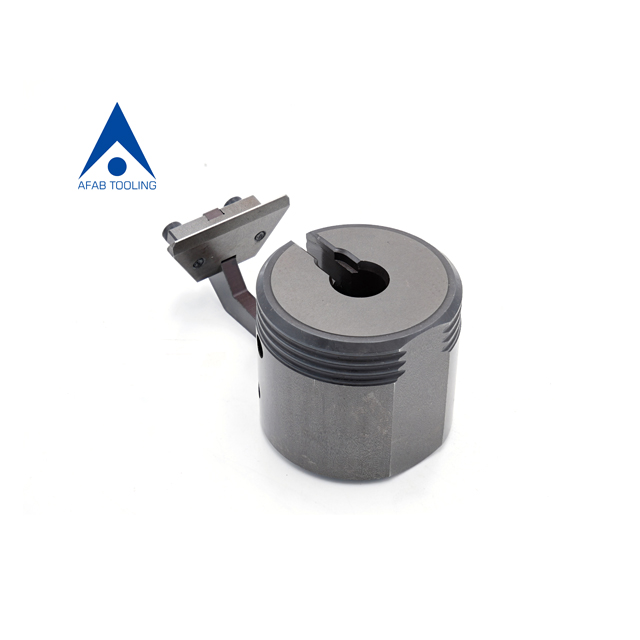

Trumpf Style Tool adjustment aid,It can align punch and adjusting.

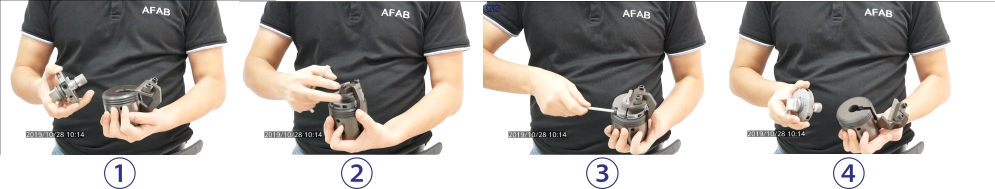

① Install punch in to alignment ring-adjusting ring
② Let T handle touch punch tip
③ Tighten bolt beside alignment ring
④ Take out aligned tooling
The Trumpf Tool Adjustment Aid is a specialized accessory designed to facilitate the setup and maintenance of tooling components in Trumpf machines. It enhances precision, efficiency, and overall tool management
Features
1.The adjustment aid helps in precise alignment of tools, ensuring accurate and consistent results during operations
2.Designed to be user-friendly, the adjustment aid simplifies the process of setting up and maintaining tooling components, reducing setup time
3.Made from high-quality materials, the adjustment aid is built to withstand the rigors of heavy-duty manufacturing environments
4.Specifically designed for use with Trumpf machines, ensuring seamless integration and optimal performance
Applicationf for tool Setup and Maintenance:
The adjustment aid is used to securely hold and adjust tooling components, ensuring they are properly aligned and fastened.
It helps in reducing setup time and increasing overall productivity by simplifying tool changeover processes
The Trumpf Style Tool Adjustment Aid is a specialized device used for the quick and precise offline setup and measurement of punching tools for Trumpf and compatible CNC turret punch presses.
Its main function is to ensure that the entire punch assembly—including the punch, stripper, and die—is correctly assembled, aligned, and measured before being loaded into the machine. This process is critical for maximizing tool life and achieving high-quality punched parts.
The adjustment aid helps address the two most common variables in punching tool setup: tool length and alignment.
1. Punch Length and Grind Life Management
As a punch is reground (sharpened), its overall length decreases. The machine ram needs to be programmed to travel to the correct depth to compensate for this shorter length.
Function: The adjustment aid (often called a QuickSet by Trumpf) provides a digital measurement of the tool's length. It may calculate the necessary ram adjustment value or the amount of remaining grind life.
Benefit: This eliminates the need for manual shimming or guessing, ensuring the punch does not over-penetrate (which damages the die) or under-penetrate (which leaves a slug partially attached).
2. Tool Alignment (Concentricity)
The punch tip must be perfectly centered over the die to ensure clean punching and prevent catastrophic edge chipping (premature wear).
Function: The aid provides a fixed, highly precise mounting surface to hold the punch and die assembly. It typically includes an alignment feature (like a keyway or fixture) to check and set the rotational alignment between the punch, the alignment ring, and the die.
Benefit: Proper alignment significantly extends tool life by minimizing uneven wear and side loading on the punch tip.
3. Quick and Efficient Setup

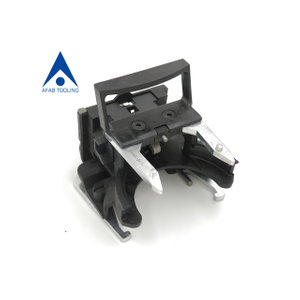

Function: It allows the operator to assemble the entire tool cartridge (which includes the punch, alignment ring, stripper, and die) outside of the CNC machine. The aid often measures all required parameters (punch length, stripper plunge depth, and die height) in a single, quick measuring stroke.
Benefit: This shifts non-productive time (tool setup) away from the machine, allowing the punch press to stay running and maximizing machine utilization and throughput.
