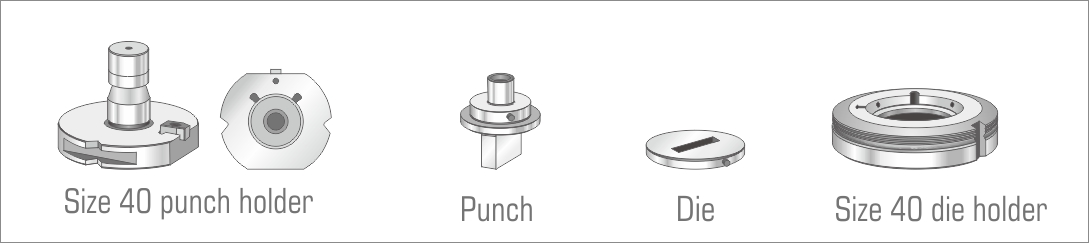

The Trumpf Style R.I. series tooling include punch holder,punch,die,die holder. Holder intergrated location pin, Save set-up times.

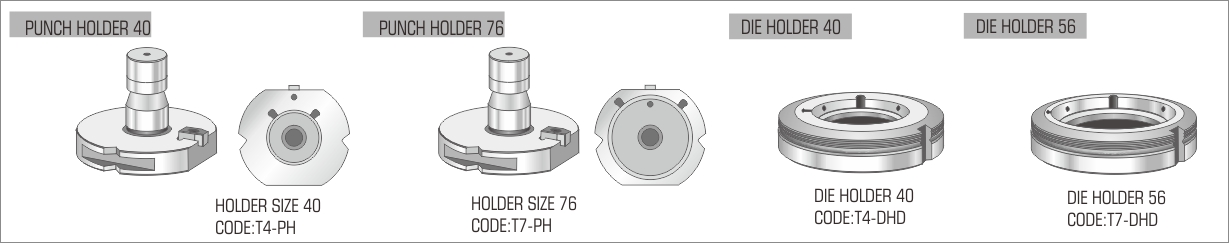

R.I.series-2.4.1 series holders

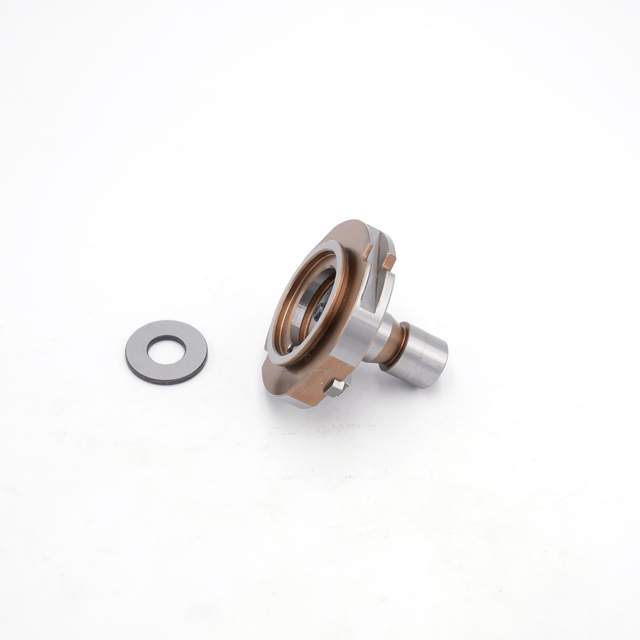

Punch holder size 40 only accept punch Max diameter/diagonal 40mm
Punch holder size 76 only accept punch Max diameter/diagonal 76mm

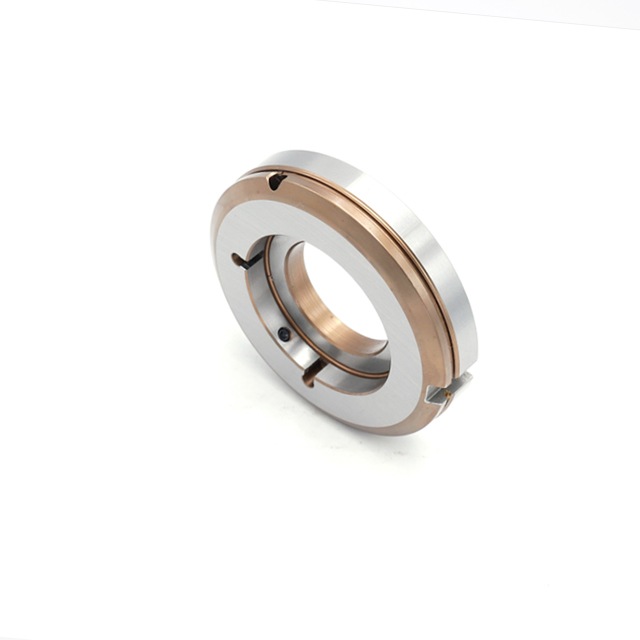

Die holder size 40 only accept die Max diameter/diagonal 40mm
Die holder size 56 only accept die Max diameter/diagonal 56mm
R.I.series holder structure
1: Holder body 2:Punch shim 3:ID label 4:Bolt washer 5:Key 6:Bolt 7:Screw 8:Clip ring
