The Trumpf Style Multi Tool MT4/MT6 is a sophisticated tooling system designed for punching machines, especially those of the Trumpf brand. The "MT" in its name stands for "Multi Tool," indicating its multi functionality. The MT4 and MT6 models are respectively equipped with 4 station and 6 station tool adapters, which are capable of holding multiple inserts, increasing the number of tools that can be used on the machine.
High productivity design: With the ability to integrate multiple punches or dies into a single tool adapter, it significantly shortens tool setup and change times. For example, in the case of processing small punches with different sizes, the MT4/MT6 can complete the work of several single station tools, improving production efficiency.
Accurate processing: It ensures high precision punching and forming. The tool has a good guide structure, which can effectively control the movement accuracy of the punch and die, ensuring the accuracy and consistency of the punched parts.
Wide range of applications: It is suitable for processing various materials, including mild steel and stainless steel. The maximum thickness of the processed mild steel can reach 4.5 mm, and that of stainless steel can reach 3.0 mm. It can be used for punching, forming, and embossing operations, meeting the diverse processing needs of different parts.
1. Automotive Manufacturing: In automotive manufacturing, the Trumpf Tooling Accessories play a crucial role in ensuring the smooth operation of Trumpf tooling systems. They are used for tasks such as tool changing, lubrication, and safety protection, contributing to the efficient production of automotive components.
2. Sheet Metal Fabrication: In sheet metal fabrication shops, these accessories are essential for optimizing the performance of Trumpf turret punch presses. They help in achieving accurate and consistent results in punching, forming, and other metalworking operations.
3. Electronics Industry: In the electronics industry, where precision and reliability are key, the Trumpf Tooling Accessories are used to support the production of electronic components. They ensure the proper functioning of tooling systems, enabling the fabrication of high-quality electronic parts.
4. General Metalworking: The accessories are also widely used in general metalworking industries, such as machinery production, metal furniture manufacturing, and metal art fabrication. They provide the necessary support and enhancements to make the metalworking process more efficient and productive.

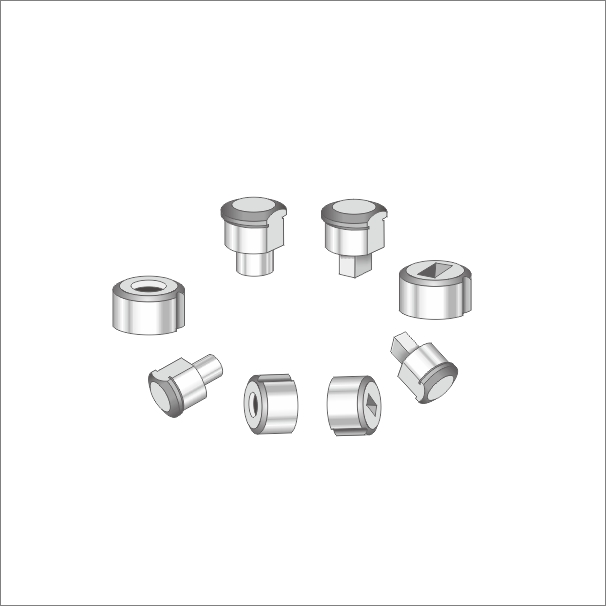

The Trumpf Multi Tool 4/6 station. include punch holder,stripper and die holder.
For Trumpf machine model:190 R, 200 R, 240 R, 260 R, 500 R, 600 L
Punch Max. sheet thickness: Mild steel/Alumium 3.0mm, Stainless steel 2.0mm

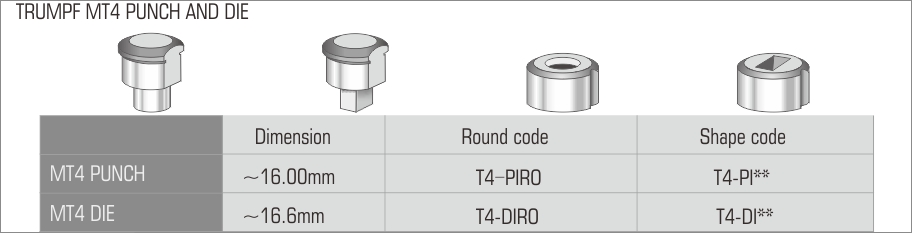

Trumpf MT 4 STATION, Max.Diameter/Diagonal 16mm

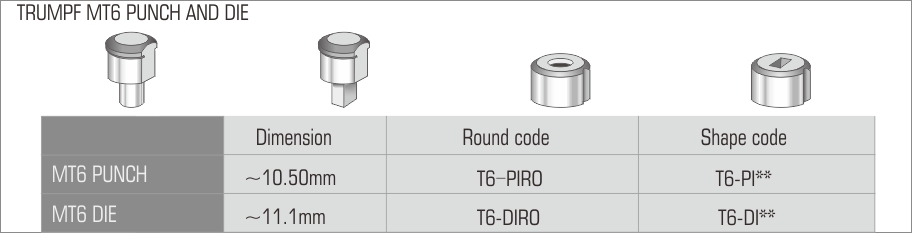

Trumpf MT 6 STATION, Max.Diameter/Diagonal 10.5mm
