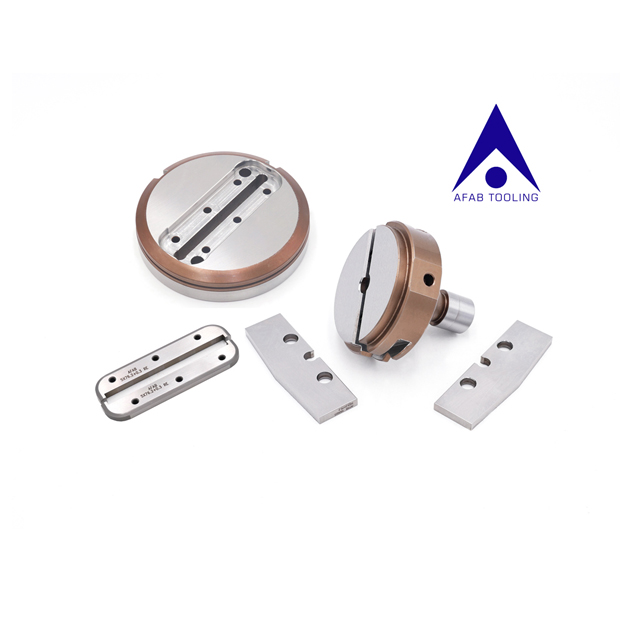

The TRUMFP PART TOOL-SLITTING TOOL,designed to deliver exceptional value combining high-quality steel punch and die blade with high performance punch and die holders. Fully OEM compatible with Original TRUMF, WILSON,MATE.

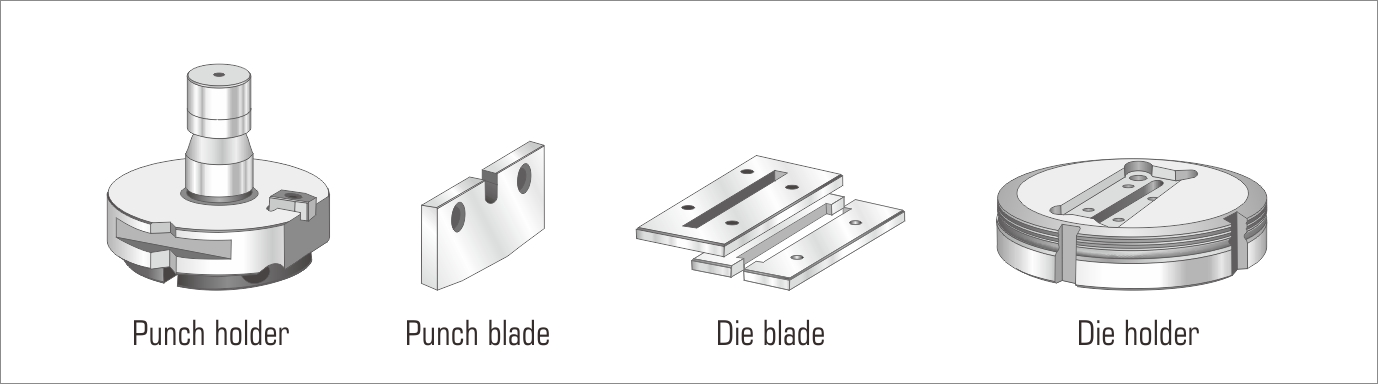

It include punch holder,punch blade,die blade,die holder,die shims.

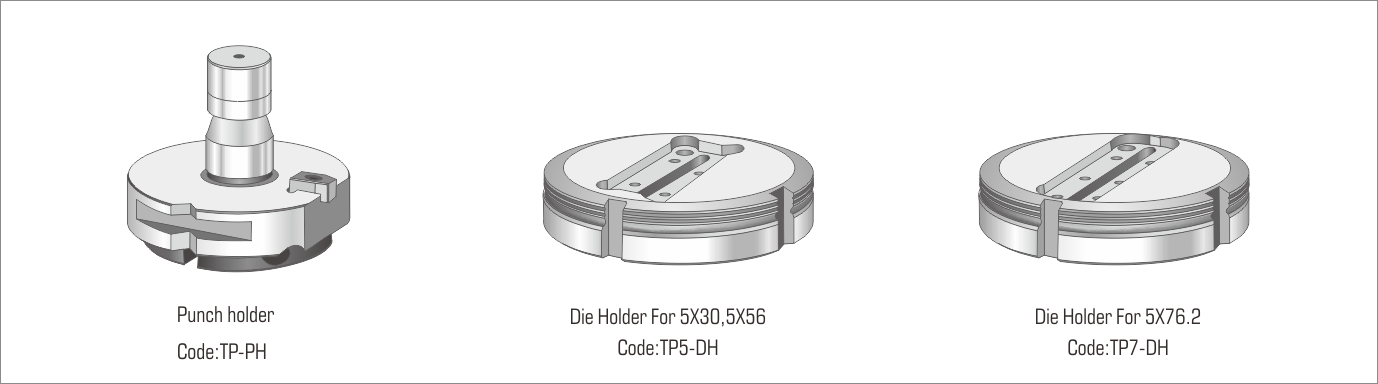

Holders for TRUMPF Parting-Slitting Tool
Die holders with two types, TP5 only accept die blade 5X30 and 5X56 size, Bigger size 5X76.2mm install in TP7 die holder
Punch insert blade
1.TP3 Blade modified by TP5 type.
2.Blade regrinding life 3.0mm
3.It punch Max.sheet metal thickess 3.0mm

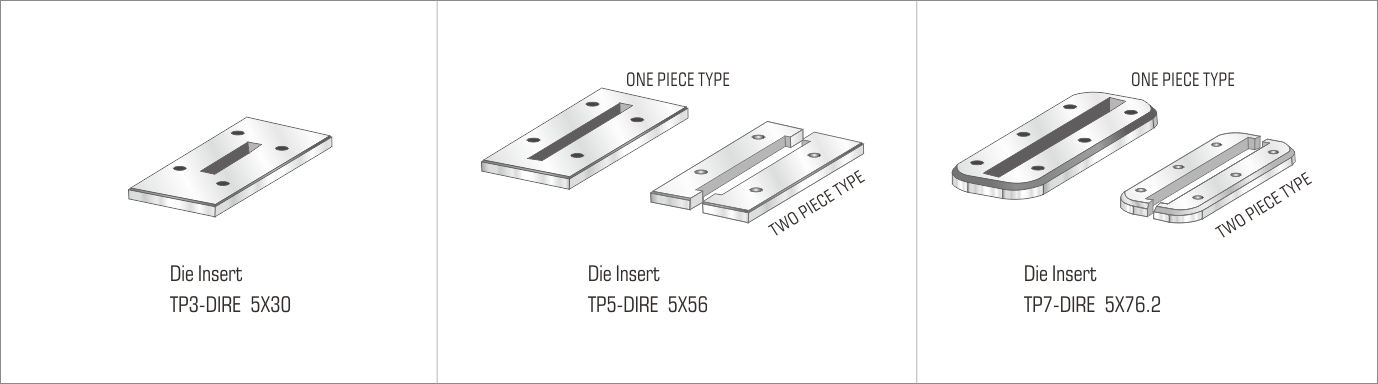

Die insert blade
Sharpening life 3mm
Die blade could be one piece type or two piece type

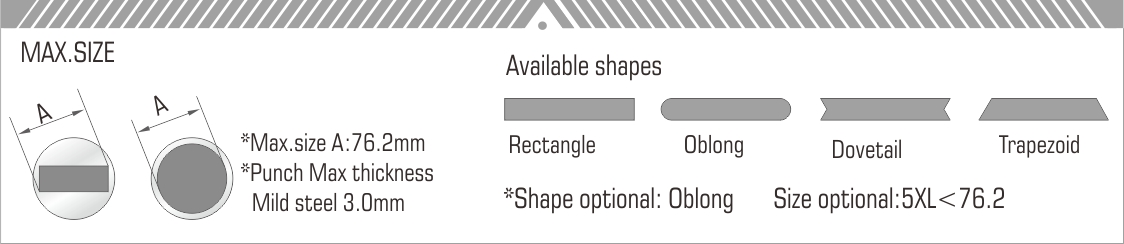

Shape and size
Shape could be rectangle,Oblong,Dovetail,Trapezoid.
Width should be 5mm,but length could be less 30,less 56,less 76.2
