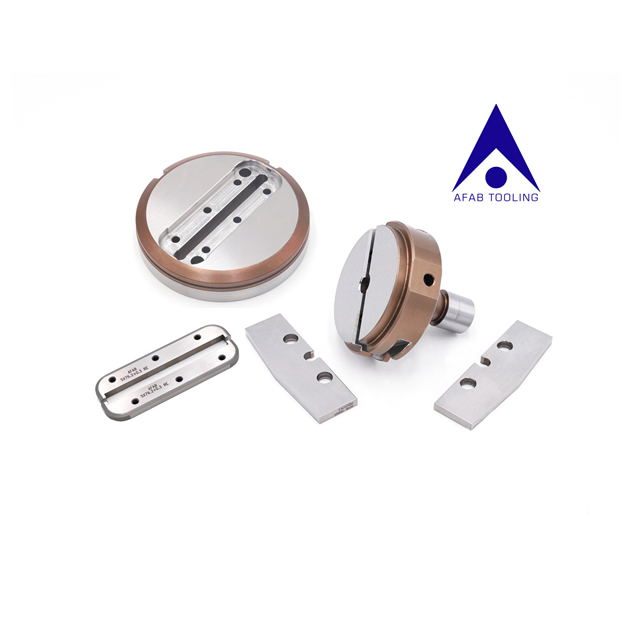

Sheet metal fabrication shops constantly fight bottlenecks. You punch a nest of parts in minutes, but then they sit on pallets for days waiting for manual countersinking, corner welding, or hardware insertion. Production managers and manufacturing engineers face a tough choice: stick with traditional multi-step routing or invest in specialized forming tools. Evaluating specific applications for forming tools—integrated directly into your CNC punch press—enables true single-setup manufacturing. We want parts coming off the machine ready for assembly or paint. This process consolidation cuts cycle times and slashes work-in-progress inventory. By moving secondary operations into the punch press, you dictate overall production return on investment. The goal is making sheet metal processing faster, highly repeatable, and reliable without adding manual labor.
Single-Setup Efficiency: Trumpf style tooling allows fabricators to execute complex forms (louvers, countersinks, corners) and contour processing directly on the punch press, bypassing secondary routing and manual handling.
Application Versatility: High-volume sectors like data center infrastructure and HVAC rely on these tools for repeatable ventilation, structural rigidity features, and press-fit component preparation.
Cost-to-Volume Justification: While initial tooling costs are higher, the elimination of downstream welding, marking, and assembly steps yields rapid ROI in medium-to-high volume runs.
Technical Constraints: Successful implementation requires strict adherence to material thickness limits, machine tonnage capacities, and proactive tool maintenance schedules to ensure long-term process reliability.
Adopting specialized forming tools requires a clear definition of baseline success criteria. Manufacturing engineers must evaluate minimum production volumes, machine compatibility, and the necessity for high-tolerance repeatability before transitioning away from standard punch-and-weld workflows. Because forming tools require precise stroke control and programmable hover heights, the CNC punch press must possess advanced ram control capabilities. High-tolerance repeatability is non-negotiable. If a formed feature drifts out of specification, it compromises downstream automated bending and assembly operations.
The mechanical advantage of trumpf style tooling lies in its robust engineering. Unlike standard punching setups that rely on simple through-cut mechanics, these systems utilize rigid tool alignment, keyed tool holders, and active die matrices. This rigidity ensures that the punch and die remain perfectly concentric even under the extreme lateral forces generated during heavy forming operations. Active die matrices allow the lower tool to retract or adjust during sheet movement. When the machine moves the sheet across the table, the die drops down, preventing scratches and material deformation.
Process consolidation is the primary evaluation dimension for these investments. Moving complex forms, press-fit component preparation, and contour processing to a single machine drastically reduces work-in-progress inventory. When a part leaves the punch press fully formed, countersunk, and deburred, it bypasses multiple secondary workstations. You eliminate the queue times associated with moving pallets of parts between the punching cell, the hardware insertion press, and manual deburring stations. This shrinks overall manufacturing cycle times and frees up floor space.
Standard Punching vs. Integrated Forming Operations
Process Metric | Standard Punching Workflow | Integrated Forming Workflow |
|---|---|---|
Work-in-Progress (WIP) | High (Parts wait for secondary ops) | Low (Parts finish in one setup) |
Part Handling | Multiple touches per part | Single touch (Load/Unload) |
Tooling Complexity | Low (Standard punches and dies) | High (Active dies, precise stroke control) |
Machine Requirements | Basic mechanical or hydraulic ram | Advanced hydraulic/electric ram with hover control |
Cycle Time per Hit | Extremely fast (Milliseconds) | Slightly slower (Dwell time required for forming) |
Creating airflow features is a strict requirement for electronics enclosures, HVAC units, and industrial control cabinets. Traditional louver manufacturing often involved secondary stamping presses or complex laser cutting followed by manual bending. Integrating louver forming directly into the CNC punch press streamlines this entirely. You load the sheet, run the program, and the louvers form sequentially.
Specialized louver tools provide clean, tear-free cuts and highly consistent form heights. This consistency ensures regulatory compliance regarding airflow dynamics and ingress protection ratings. If a louver is formed too high, it fails IP probe tests. If formed too low, it restricts necessary thermal ventilation. Fabricators must balance tool stroke speed against material deformation risks, particularly in thicker gauges like 11-gauge mild steel. Striking the material too quickly causes work hardening or micro-fractures at the shear point. A controlled, programmable stroke ensures smooth material flow and structural integrity.
Producing short, pre-bent side flanges and internal or external corners directly on the flat sheet changes how you approach enclosure fabrication. Corner forming tools displace material to create overlapping or tightly butted flanges while the part is still flat on the punch press table. You program the machine to hit the corner, and the tool folds the material into a finished edge.
The main advantage of corner forming is the outright elimination of secondary corner welding and grinding. In traditional fabrication, flat patterns are bent, and the open corners are TIG welded and ground flush. This is a highly labor-intensive process prone to human error and aesthetic defects. By forming the corner directly, you achieve immediate labor cost reductions. Implementation requires strict adherence to specific sheet thickness and material ductility parameters. Highly ductile materials like mild steel and 5052 aluminum perform excellently. Brittle materials suffer from corner tearing during the aggressive forming stroke.

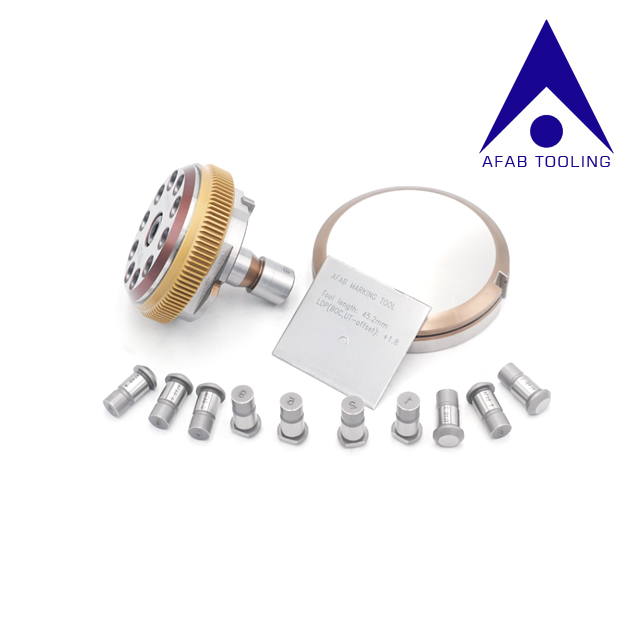

Adding raised logos, serial numbers, alignment dimples, or structural stiffening ribs is standard practice in sheet metal manufacturing. Localized surface flattening, known as coining, is also frequently required around fastener holes. Executing these features in-machine maintains absolute part traceability without routing components to secondary laser marking stations or standalone stamping presses.
In-machine embossing ensures that part identifiers are permanently integrated into the material before it ever reaches the bending or painting departments. When evaluating embossing tools, engineers must consider the impact of material displacement on overall sheet flatness. Heavy embossing induces stress into the sheet, causing it to bow or warp. To counteract this, programmable stripper pressures are essential. The machine applies sufficient downward force on the sheet during the upward return stroke of the punch to prevent distortion and maintain critical flatness tolerances.
Preparing holes for flush fasteners, creating extruded tapped holes, or sizing apertures for press-fit components traditionally required multiple manual interventions. Combining extrusion and tapping tools within a single setup eliminates manual drill-and-tap operations. This ensures exact tolerances for automated hardware insertion down the line.
An extrusion tool draws the material upward to create a collar, effectively increasing the thread engagement area in thin sheet metal. A subsequent tapping tool then threads this extrusion. This process demands precise lubrication systems and active chip extraction. Without adequate lubrication, the tap binds, leading to catastrophic tool failure and ruined parts. Proper chip management ensures that metal shavings do not interfere with subsequent punching operations or damage the active die matrices. You must also calculate the exact pre-punch hole diameter. If the pre-punch is too small, the extrusion tears. If it is too large, the tap has no material to thread.
Creating continuous offsets, strengthening ribs, or deburring edges along complex part contours without stopping the machine represents a peak in processing efficiency. Roller technology allows for high-speed contour processing by pinching the material between upper and lower bearings and rolling along the programmed path. The machine moves the sheet while the tool stays engaged.
Roller deburring tools compress the sharp burr back into the parent material rather than cutting it away. This effectively eliminates manual deburring stations, drastically improving edge safety for assembly workers. Assessing the programming requirements for continuous roller tools is critical. The CAM software must generate smooth, continuous toolpaths. Operators must monitor overall sheet stability. Aggressive roller offsets can cause the sheet to pull away from the machine clamps if not properly supported by the table brushes.
Manufacturing server racks, chassis, and telecom enclosures requires producing thousands of identical louvers, knockouts, and mounting extrusions daily. In this high-volume context, the efficiency of single-setup processing becomes a massive competitive advantage. You cannot afford to manually tap thousands of holes per shift.
Scalability in data center manufacturing relies heavily on automation. Forming tools integrate seamlessly with automated sheet loaders, part sorters, and robotic bending cells. Because the parts exit the punch press with all hardware prep, louvers, and deburring completed, they feed directly into robotic press brakes without human intervention. This supports true lights-out manufacturing. Machines run unattended overnight, streamlining in-house assembly and maximizing throughput.
Job shops and contract manufacturers handle high-mix, low-volume production runs across various industries, from aerospace to agricultural equipment. In these environments, setup time dictates profitability. A machine that takes hours to retool between jobs destroys margins. You need to swap tools and run the next program immediately.
The flexibility of Trumpf Tooling systems is evaluated based on rapid changeovers. Quick-change tool cartridges and multi-tool heads allow operators to swap complex forming assemblies in seconds. This adaptability ensures that a contract manufacturer can run a batch of louvered HVAC panels in the morning and seamlessly transition to embossed aerospace brackets in the afternoon. You maintain high machine utilization rates regardless of the production mix.
The engineering behind tool holders directly impacts the success of forming operations. Rigid, keyed alignment prevents die shift during high-tonnage forming strokes. When a tool displaces material rather than shearing it, the lateral forces increase significantly. If the tool holder lacks rigidity, the punch deflects. This leads to asymmetrical forms, rapid tool wear, and rejected parts.
Superior tool rigidity correlates directly with extended tool life and consistent part quality. By maintaining exact concentricity between the upper and lower tool components, fabricators reduce burr formation on complex forms. You ensure that every extrusion, louver, or countersink meets strict dimensional tolerances across thousands of hits. The keyed alignment guarantees the tool goes in exactly the same way every time an operator sets up the machine.
Forming tools face strict material constraints that you must respect during the engineering phase. Forming soft, ductile aluminum requires vastly different parameters than forming 304 stainless steel. Stainless steel work-hardens rapidly and requires significantly more tonnage to displace. You cannot treat all metals the same when programming a form stroke.
Exceeding machine tonnage limits with large forming tools is a severe implementation risk that causes catastrophic damage to the punch press ram. Manufacturing engineers must calculate the required forming force before tool procurement. You look at the shear strength and tensile strength of the material, multiply it by the perimeter of the form, and factor in the material thickness.
Material Constraints and Tonnage Guidelines
Material Type | Ductility Level | Forming Tonnage Requirement | Primary Risk Factor |
|---|---|---|---|
Mild Steel (Cold Rolled) | High | Moderate | Galling on extrusion tools without proper lubrication. |
Aluminum (e.g., 5052) | Very High | Low | Material tearing if form depth exceeds structural limits. |
Stainless Steel (304/316) | Low to Moderate | Very High | Rapid work hardening; exceeding machine ram tonnage limits. |
Galvanized Steel | Moderate | Moderate | Zinc flaking building up inside the die matrix. |
Evaluating the impact of forming tools on overall machine cycle times requires looking at the macro production picture. A forming stroke takes fractionally longer than a standard punching stroke. The ram must dwell at the bottom dead center to allow material to flow, and the machine must slow its X/Y axis movement to accommodate active die retraction.
This slight increase in per-hit time is vastly outweighed by the reliability and speed gained from eliminating secondary operations. Adding five seconds to the punch press cycle time to form a corner is infinitely more efficient than spending five minutes welding and grinding that same corner manually. You trade micro-seconds at the machine for macro-minutes on the shop floor.
Forming tools introduce programming complexities that do not exist in standard through-hole punching. They require precise stroke control, specific hover heights to clear the formed features during sheet movement, and exact bottom dead center programming. You must ensure the form reaches the correct depth without crushing the material or snapping the tool.
To mitigate programming risks, facilities must implement specific CAM software simulation practices. Simulating the punch path in 3D allows programmers to detect collisions between the sheet clamps and the formed features before the program reaches the floor. Operator cross-training is equally critical. Operators must understand how to adjust ram stroke parameters at the control panel to compensate for slight variations in material batch thickness. This prevents machine crashes, tool damage, and material scrap.
Forming tools degrade differently than standard cutting tools. While a cutting punch becomes dull and creates burrs, a forming tool often suffers from galling. Microscopic particles of the sheet metal weld themselves to the tool surface due to heat and friction. This leads to dimensional drift in the formed feature and severe surface scratching on the finished part.
Mitigating tool wear requires outlining a strict preventative maintenance protocol. This includes specialized polishing routines to remove galling without altering the tool's geometry. You must adhere to strict lubrication standards, utilizing both in-machine misting and tool-specific greasing. Routine dimensional auditing of formed parts catches wear before it results in out-of-tolerance production runs. Operators should inspect the tools at the start of every shift.
Integrating specialized forming capabilities directly into CNC punching operations represents a highly effective investment for fabricators looking to eliminate secondary welding, tapping, deburring, and hardware insertion. Provided the production volume justifies the initial tool cost, the reduction in work-in-progress inventory and manual labor dependencies yields a rapid and sustainable return on investment. The ability to execute complex louvers, extrusions, and continuous contour processing in a single setup transforms sheet metal manufacturing efficiency. When shortlisting tooling investments, buyers should conduct a thorough audit of their current bottlenecks. Identifying pallets of parts consistently waiting for manual countersinking, corner welding, or laser marking highlights the highest-ROI forming tool applications.
Audit your shop floor to identify the top three secondary operations causing work-in-progress bottlenecks.
Consult with tooling engineers to conduct a part-feasibility study on your highest-volume components.
Request a comprehensive tonnage calculation for any proposed large-scale forming tools based on your toughest materials.
Review your current CAM software and machine control capabilities to ensure compatibility with advanced forming and contour processing strokes.
Establish a dedicated preventative maintenance and polishing schedule specifically for forming and extrusion tools.
A: These tools effectively process mild steel, aluminum, and stainless steel. Mild steel and aluminum offer high ductility, making them ideal for deep extrusions and louvers. Stainless steel requires significantly higher tonnage and is prone to work hardening, which limits the maximum depth of forms and requires specialized tool coatings to prevent galling.
A: Yes. Corner forming tools displace material to create overlapping or tightly butted side flanges directly on the flat sheet. This creates a closed corner upon bending, bypassing the need for secondary TIG welding and grinding, which is particularly beneficial for specific IP-rated electrical enclosures.
A: Louver tools simultaneously shear and form the material, requiring substantial force. This dual action demands careful tonnage calculation before programming, especially when processing thicker gauges of stainless steel, to ensure the required force does not exceed the machine ram's maximum capacity.
A: Standard punching uses a through-cut action to shear a slug out of the material, creating a hole. Forming uses a controlled-stroke to displace and stretch the material into a specific 3D shape, such as a louver or extrusion, without fully separating the material from the parent sheet.
A: Maintenance frequency depends heavily on hit counts, material type, and lubrication. Tools processing galvanized or stainless steel may require polishing for galling every few thousand hits. Automated in-machine lubrication significantly extends these intervals, but routine dimensional auditing should occur daily.
A: Yes, they are highly compatible. Single-setup forming eliminates manual handling errors and ensures parts exit the punch press with all features perfectly positioned. This high-tolerance repeatability prepares the parts perfectly for downstream automated sheet loaders and robotic bending cells.
