Thick turret tooling is a vital component in the sheet metal fabrication industry, especially for CNC punching machines. These tools help shape and punch holes in metal sheets, playing a key role in high-volume production across various manufacturing sectors. Used in turret punch presses, which are computer-controlled for precision, thick turret tooling is designed to handle thicker materials with greater force, making it ideal for more complex tasks. Unlike thin turret tooling, it offers enhanced strength and durability, enabling the punching and forming of larger, more robust components. Over time, thick turret tooling has become essential for modern CNC machines, driving productivity and supporting industries that require the processing of heavy-duty materials.
Thick turret tooling is a specialized system used in CNC punching machines, designed to handle thicker and more robust materials compared to traditional thin turret systems. These tools are mounted in a turret, a rotating platform that allows tools to automatically index into position, enabling multiple operations to be performed in sequence without the need for manual adjustments. This rotational mechanism provides flexibility and efficiency, as manufacturers can quickly change tools without interrupting the production process, improving overall workflow.
What differentiates thick turret tooling from its thinner counterpart is its capability to process thicker materials, typically 1/2 inch thick or more. Thin turret tooling, by contrast, is typically designed for thinner materials up to 0.25 inches. The ability to handle thicker, denser materials gives thick turret tooling a distinct advantage in industries that require high punching force and precision. These tools are ideal for processing rigid materials and intricate designs, providing greater accuracy and efficiency when working with heavy-duty applications.
Thick turret tooling's robustness allows it to deliver enhanced punching power, making it the go-to choice for industries involved in the production of large, complex components, such as automotive parts, structural elements, and heavy machinery.
The primary distinction between thick turret and thin turret tooling lies in the thickness and strength of the materials they are designed to handle. While thin turret tooling works with materials up to 0.25 inches thick, thick turret tooling is engineered for heavier-duty applications, handling materials that are denser and thicker, typically up to 1/2 inch or more. This capability makes thick turret tooling the go-to solution for industries that require higher punching force and greater precision when working with tougher materials.
The robust design of thick turret tooling is another important factor. These tools are built to endure the stresses of punching through thicker metal sheets, featuring reinforced components like punches, dies, and mounts. The result is higher productivity, faster processing speeds, and a longer lifespan for the tools, all of which contribute to reduced downtime and increased operational efficiency in industrial applications.

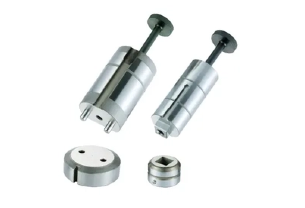

The core of thick turret tooling’s design consists of the upper and lower dies, which work in tandem to create the desired hole or shape in the metal sheet. The upper die, also known as the punch, is the component that makes direct contact with the material. It fits into the lower die, or matrix, which holds the material in place during the punching process.
When the machine is activated, the punch is driven into the material with immense force, forcing the sheet into the lower die and creating a hole or cutout. The upper die is typically made of high-carbon steel to withstand the impact and pressure that is exerted when punching through thicker materials. This durable design ensures the tool’s longevity and performance, even under demanding conditions.
A defining characteristic of thick turret tooling is the robustness of its tool holders and punches. Unlike thin turret tools, which are often designed for lighter-duty applications, thick turret tooling is engineered to withstand the higher stresses that come with punching through thicker materials. The punches themselves feature reinforced surfaces and sharp edges, ensuring they remain durable and precise even after extended use. These features allow for smoother, more efficient punching without compromising quality or accuracy.
The tool holders are modular, allowing for easy replacement of different punches and dies depending on the specific requirements of the task at hand. This modular design offers greater flexibility and efficiency in operations, as manufacturers can quickly swap out tools without downtime. The ability to use a variety of punches and dies within the same turret further improves productivity by eliminating the need for manual adjustments between operations.
Another important aspect of thick turret tooling is its modular design, which allows for multiple tools to be placed in various stations within the turret. This modular setup makes it easy to switch between different punches, dies, and other tools without having to stop the machine or make complex adjustments. The flexibility of a modular system allows manufacturers to tackle a wide range of tasks, from simple holes to more complex cuts, using the same machine setup.
The ability to handle multiple stations within a single turret also reduces downtime between tool changes, which significantly boosts productivity. For example, a CNC machine with multiple tools in place can continuously punch, form, or cut without waiting for manual tool swaps. This continuous workflow reduces production time and increases throughput, making thick turret tooling ideal for high-volume applications that require rapid turnaround and consistent results.
Punching dies have been used for centuries, with early versions being simple hand-operated tools used to create holes in metal sheets. Over the years, as industrialization took off, the demand for more efficient and higher-volume production led to the development of turret punch presses. These machines utilized a rotating turret to hold multiple dies, allowing manufacturers to quickly switch between different tools without having to manually change them.
The evolution of punching dies progressed with the advent of CNC technology, which automated the punching process and introduced greater precision and speed to metalworking. Thick turret tooling emerged as a natural progression, catering to the growing need for punching larger and thicker materials.
Thick turret tooling was introduced as a solution to handle the increasing demand for punching and forming thicker sheet metals. As industries such as automotive manufacturing, aerospace, and heavy equipment manufacturing grew, the need for high-performance tooling that could process thicker metals became essential. Thick turret tooling was developed to meet these requirements, providing manufacturers with a versatile, powerful, and cost-effective solution for high-strength materials.
Thick turret tooling is an essential tool in the world of modern sheet metal fabrication, providing the precision, strength, and durability required for demanding punching and forming tasks. Capable of handling thicker materials with greater force and speed, it has become a core component in CNC punching machines, supporting industries like automotive, aerospace, and heavy manufacturing that rely on high-volume, high-precision production.
Over the years, thick turret tooling has evolved from basic manual tools into highly advanced automated systems. Its robust design and versatility have made it indispensable for industries that need to produce high-strength components efficiently and accurately. As demand for complex and durable parts continues to rise, thick turret tooling remains a critical investment for any manufacturing business.
For those looking to upgrade their tooling systems or learn more about this essential technology, AFAB TOOL LIMITED offers top-of-the-line thick turret tooling solutions. With a commitment to quality and innovation, AFAB TOOL LIMITED provides expert guidance and state-of-the-art equipment designed to meet the highest industry standards. Contact AFAB TOOL LIMITED today to explore how their solutions can improve your manufacturing efficiency and overall performance.
