Sheet metal fabricators constantly fight to manage high-mix, low-volume production runs without sacrificing throughput. Traditional punching setups create massive bottlenecks on the shop floor. Fixed station capacities limit your options when processing complex nests. Lengthy tool changeovers kill productive machine time and force operators to stand idle. When you add secondary operations like manual deburring or separate press brake forming, production grinds to a halt. We see an architectural shift solving these exact problems. Moving from traditional enclosed turret presses to open linear rail systems changes how you process sheet metal. This transition makes trumpf style tooling and multi-tool configurations the standard for maximizing machine versatility. You reduce setup times immediately. Operators prepare tools offline while the machine runs the current nest, keeping the ram striking metal and pushing parts to the assembly line faster.
Unrestricted Angular Positioning: Every tool in a Trumpf-style system benefits from 360° rotation, effectively turning every punch into an auto-index station and reducing the need for duplicate tooling.
Exponential Capacity Multiplication: Multi-tools expand a single machine station to hold 4, 5, 6, or up to 10 distinct tools, drastically reducing tool change downtime.
Consolidation of Operations: Advanced tooling options (like MultiBend and specialized parting tools) allow fabricators to perform forming, bending, and slitting directly on the punch press or punch-laser combination machine, eliminating secondary handling.
Setup and Ergonomic Efficiency: The linear rail design allows for rapid, accessible tool loading and unloading compared to the enclosed nature of traditional thick turret systems.
Standard turret presses hit a wall when dealing with complex nesting. They use a rotating carousel of fixed stations. Most of these stations hold tools at a single, fixed angle. If a part geometry requires a rectangular punch at zero degrees and another at forty-five degrees, the programmer must allocate two separate tools. This eats up valuable turret space. You end up maintaining redundant tool inventories just to cover basic angles. Operators must stop the machine constantly to swap tools for different jobs. This kills overall machine uptime and ruins nesting efficiency.
The linear tool rail design fixes this mechanical flaw. Instead of storing tools in an enclosed rotating turret, the machine stores them on a linear rail outside the immediate working envelope. Tools sit inside standardized cartridges. Operators access these cartridges easily from the front or side of the machine. They load the rail while the punch press runs another sheet. The machine head travels to the rail, grabs the required cartridge, and pulls it into the active punching zone. This parallel workflow keeps the machine running.
Here is how operators execute a standard linear rail setup:
Review the upcoming job schedule on the machine control panel to identify required hole sizes.
Identify required punch and die clearances based on material thickness, such as using a 20% clearance for 16-gauge mild steel.
Assemble the required punch inserts and dies into the offline cartridges at the workbench.
Slide the prepared cartridges into the external linear rail slots while the machine operates.
Update the tool management software to register the new cartridge locations and tool data.
A single, robust punching head controls the tool. This head rotates mechanically to position any loaded tool at any angular position. Every single tool becomes an auto-index tool. Nesting software rotates parts to fit tighter together on the sheet because the punch matches any angle. You achieve higher nesting efficiency and generate less scrap material. One single rectangular punch processes cuts at zero, fifteen, forty-five, or ninety degrees without requiring duplicate inserts.

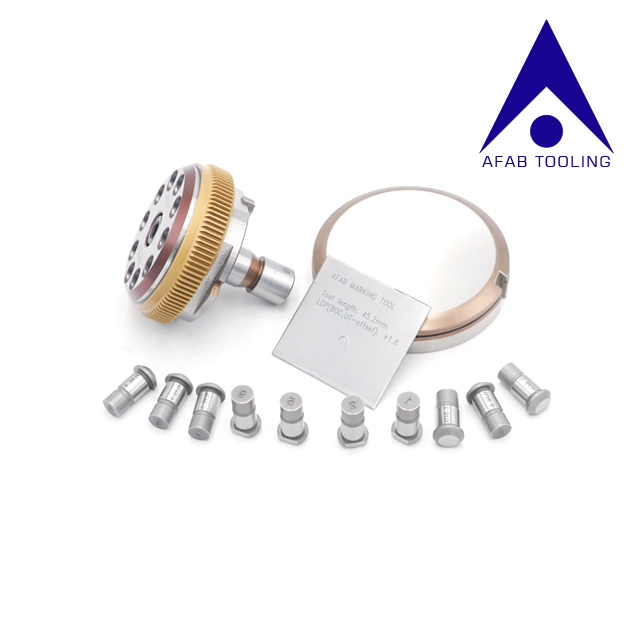

A multi-tool acts as a specialized adapter within the tooling ecosystem. It holds several independent punch and die inserts inside a single main tool assembly. You load a multi-tool containing multiple smaller punches instead of loading one standard punch into a cartridge. The machine head grips this multi-tool just like a standard tool. The internal mechanics of the punch head then select and strike the specific insert required for the active line of code.
Multi-tool configurations provide massive capacity expansion. Shops commonly utilize 4-station, 5-station, 6-station, or 10-station multi-tools. A standard linear rail holds eighteen to twenty-two cartridges. By deploying multi-tools, you multiply that capacity. A machine with twenty rail positions effectively holds over eighty active tools. You execute highly complex, multi-feature parts without stopping. Operators run diverse nests containing hundreds of different hole sizes without ever changing a cartridge.
Multi-Tool Configuration Specifications
Configuration | Max Insert Diameter | Typical Application | Relative Indexing Speed |
|---|---|---|---|
4-Station | 16mm | Heavy-duty structural brackets and large knockouts | High |
5-Station | 16mm | Standard electrical enclosures and panels | High |
6-Station | 10.5mm | HVAC components and ventilation grilles | Very High |
10-Station | 10.5mm | Perforated screens and micro-fastener holes | Maximum |
Changing from one hole size to another takes milliseconds when a multi-tool sits within the punch head. The machine simply rotates the internal mechanism to select the next punch insert. It avoids traveling all the way back to the linear rail to fetch a completely new tool. This micro-indexing saves massive amounts of time over the course of a full shift. Thousands of tool changes happen instantly within the head, drastically reducing the overall cycle time for complex perforated parts.
Modern multi-tools feature high-performance lightweight designs. Older traditional punches utilized heavy steel blocks. Modern lightweight multi-tools use advanced alloys and optimized geometries. This reduces the physical mass the machine ram must accelerate and decelerate. Lighter tools reduce wear on the machine's ram components. They increase hit rates significantly. Some lightweight setups operate twice as fast as older traditional punches. You get higher quality punched parts and extended overall tool life. It also significantly lowers operational impact noise transmitted into the facility.
The Trumpf Parting Tool handles slitting, parting, and creating continuous contours. You use it to separate finished parts from the main sheet nest. It excels at cutting long straight lines rapidly. Unlike standard rectangular punches, parting tools feature specific shear angles and blade geometries designed specifically for continuous separation cuts.
When processing 11-gauge stainless steel, the shear angle of the parting tool becomes critical. A standard flat punch requires immense tonnage to break through the material, sending shockwaves through the machine frame. The parting tool's angled blade enters the material gradually. This reduces the required tonnage by up to fifty percent. It prevents the stainless steel from work-hardening along the cut edge. Specialized parting tools prevent sheet distortion during long cuts. They shear cleanly through the material, reduce nibbling marks, and improve edge quality significantly.
Follow these steps for optimal parting tool setup:
Verify the parting tool blade is freshly sharpened to prevent burrs on the bottom edge of the sheet.
Set the die clearance strictly to the material thickness, such as using 0.15mm clearance for 1mm aluminum.
Program the punch overlap to exactly 20% of the tool length to ensure a continuous, smooth edge.
Apply a light mist of cutting lubricant along the programmed parting line to prevent galling.
Shops evaluate the trade-offs between using a parting tool on a punch press versus moving the sheet to a flatbed laser. Lasers provide perfectly smooth edges. Moving a punched sheet to a laser adds handling time and requires a second machine setup. A well-maintained parting tool delivers comparable straight-line quality much faster. Keeping the sheet on the punch press for the final parting operation eliminates work-in-progress movement and gets parts to the assembly department faster.
Advanced tooling allows you to perform forming operations directly on the punching machine. You form small bends without ever moving the part to a press brake. This capability transforms the punch press from a simple hole-making machine into a comprehensive sheet metal processing center.
Consider a standard electrical enclosure requiring a 12mm return flange. Moving this flat blank to a press brake requires an operator to load the correct V-die, set the backgauge, and manually handle the part for each bend. By utilizing a forming tool on the punch press, the machine executes the 90-degree bend while the part remains clamped in the sheet. The forming die pushes up from below while the upper tool holds the material flat.
Tools like the MultiBend operate seamlessly to create flanges, louvers, and offsets directly on the flat sheet. The machine head controls the stroke depth precisely to achieve accurate bending angles. You can achieve bends up to 90 degrees. Material thickness limitations apply, as thicker materials require more force and larger die clearances. The maximum bend height is limited by the physical clearance between the upper and lower tool holders.
Understanding the operational differences between tooling architectures helps you make informed equipment decisions. Both systems punch holes, but they handle setup, flexibility, and maintenance very differently.
Setup time and tool changeover speed heavily favor the linear rail system. Swapping tools on a linear rail cartridge is an ergonomic, straightforward process. Operators slide cartridges into the rail at waist height. They perform this task while the machine runs another job. Thick turret systems require operators to unlock and replace tools within the enclosed turret space. This involves leaning into the machine, aligning heavy tool assemblies, and securing stations manually. The linear rail system drastically reduces physical strain on operators and cuts setup time.
Tool capacity and station flexibility highlight the core architectural divide. A thick turret relies on fixed auto-index stations. A typical 30-station turret might only have three or four stations capable of rotation. The rest remain fixed at zero degrees. The Trumpf punching head provides universal 360-degree rotation for every single tool loaded from the rail. You never worry about running out of auto-index stations. Every punch strikes at any angle, providing unmatched flexibility for complex nests.
Maintenance and tool life management also differ. Tool sharpening for Trumpf style tools involves simple flat grinds. The tools are compact and easy to handle. Alignment happens securely within the cartridge itself. Turret tools require careful keyway alignment during reassembly after sharpening. If an operator misaligns a turret tool keyway, it causes severe damage to the machine or scraps an entire sheet of material. The cartridge system simplifies maintenance routines and reduces the risk of human error.
OEM compatibility is a crucial factor for shops expanding their tooling libraries. You do not have to rely solely on the machine manufacturer for tooling. Third-party manufacturers produce high-quality aftermarket tooling. Brands offer products that achieve full OEM compatibility. They utilize premium tool steels and advanced coatings. These aftermarket options maintain excellent part quality and ensure long tool life. Shops frequently mix OEM and aftermarket tools to optimize their budgets without sacrificing punching performance.
Comparison of Punching Architectures
Feature | Trumpf Linear Rail System | Traditional Thick Turret System |
|---|---|---|
Tool Rotation | Universal 360° rotation for every tool via the punching head. | Limited to specific auto-index stations (usually 3 to 4 per turret). |
Setup Ergonomics | Cartridges load easily onto an external linear rail at waist height. | Requires reaching into the enclosed turret to swap heavy tools. |
Multi-Tool Capacity | Easily integrates 4, 5, 6, or 10-station multi-tools. | Multi-tools exist but are limited by turret station sizes. |
Maintenance Alignment | Alignment is managed securely within the external cartridge. | Requires strict keyway alignment during turret installation. |
Offline Setup | Operators load cartridges while the machine runs active jobs. | Major tool changes require stopping the machine completely. |
Transitioning to advanced tooling strategies requires careful planning. You must balance upfront costs against long-term operational savings.
High-quality multi-tools and specialized forming tools require significant initial capital expenditure. A fully populated 10-station multi-tool represents a serious investment. Calculate ROI based on setup time reduction. Track how many hours your operators currently spend changing single tools. Calculate the machine downtime associated with those changes. Factor in the labor saved by eliminating secondary operations at the press brake. When you quantify the value of increased machine uptime and consolidated routing, the upfront costs of advanced tooling usually justify themselves within the first year of implementation.
Operator training and programming represent another implementation reality. Moving from fixed-angle punching to universal rotation requires a learning curve. Programmers must understand how to apply 360-degree rotation logic in their CAM software. They must optimize tool paths to minimize head rotation time. Managing multi-tool logic also requires training. The CAM software must accurately track which insert is in which multi-tool station. Investing in comprehensive software training ensures your programming department leverages the hardware capabilities.
Managing tool wear in multi-tool configurations presents a specific challenge. Uneven tool wear occurs naturally within a single multi-tool cartridge. One punch insert might strike 2,000 times on a nest, while an adjacent insert strikes only 50 times. If ignored, the heavily used punch dulls and produces poor edge quality. Tool steel selection plays a massive role in multi-tool longevity. Standard M2 high-speed steel works well for mild steel applications. If you punch abrasive materials like fiberglass or galvanized steel, you need powdered metallurgy tool steels like PM-M4. Combining premium tool steel with a titanium carbonitride coating prevents galling and keeps the punch tip sharp.
Implement these daily maintenance checks to protect your tooling investment:
Inspect the urethane strippers for cracks or loss of elasticity before every shift.
Wipe down the cartridge alignment pins to prevent debris buildup and ensure smooth loading.
Check the multi-tool internal springs for proper tension and return speed.
Measure the punch length after sharpening to update the machine control offsets accurately.
Apply a light coat of machine oil to the external cartridge housing to prevent rust.
Audit your current tool inventory to identify redundant fixed-angle punches that a single rotating tool can replace.
Run a time-study on your press brake department to isolate small forming jobs that you can move directly to the punch press.
Contact your CAM software provider to verify your current post-processor supports advanced multi-tool indexing and 360-degree rotation.
Implement a standardized hit-count tracking system to schedule preventative sharpening for high-use multi-tool inserts.
A: A multi-tool is a specialized adapter holding multiple independent punch and die inserts within a single main tool assembly. It fits into a single machine station on the linear rail. Configurations include 4, 5, 6, or 10 stations. This allows the machine to access multiple hole sizes instantly without traveling back to the rail to fetch a new cartridge.
A: The single punching head features a mechanical rotation axis. Once it grips a tool cartridge from the linear rail, the entire head rotates the tool to any angular position. This provides full 360-degree rotation for every loaded tool, eliminating the need for duplicate tools at different angles.
A: Yes, you can use aftermarket tooling. Reputable third-party manufacturers engineer their products for full OEM compatibility. They match the exact dimensional tolerances required by the machine head and cartridges. High-quality aftermarket tools maintain excellent part quality, offer performance parity, and generally do not void machine warranties.
A: Fabricators use it primarily for slitting, parting, and separating finished parts from the main sheet nest. It features a specialized shear angle and blade geometry. This design cuts long continuous contours cleanly, reduces nibbling marks, prevents sheet distortion, and improves overall edge quality compared to standard rectangular punches.
A: Yes, it significantly reduces setup time. Linear rails use a cartridge loading system. Operators slide cartridges onto the external rail while the machine actively punches another sheet. Turret presses require operators to stop the machine, lean into the enclosed turret, and manually unlock and replace individual heavy stations.
A: Yes, you can perform bending operations directly on the punch press. Tools like the MultiBend create flanges, louvers, and offsets on the flat sheet. You achieve bending angles up to 90 degrees, though maximum bend height and capabilities are limited by material thickness and machine stroke clearance.
A: Lightweight multi-tools reduce the physical mass the machine ram must move. This reduction decreases wear on ram components and allows for increased punching speeds. It extends overall tool life by reducing impact shock and significantly lowers the operational impact noise transmitted into the building.
