Multi-Tool of MT8mm,MT16mm,MT24mm for punch press Prima power,Finnpower. Install in D station to extend more punches on one station. This can be Index auto rotation.

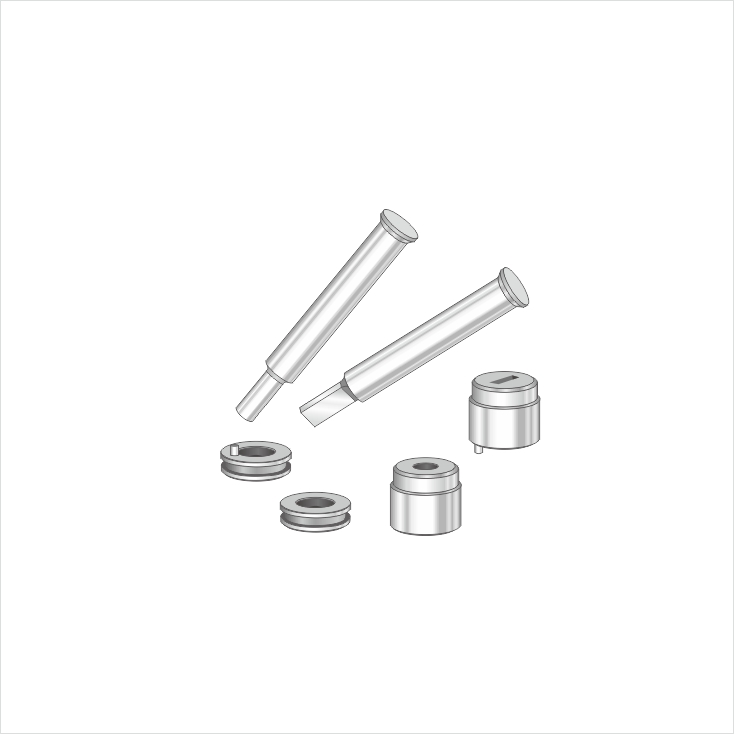

MT8mm
Multi-tool 24 station
1.Equiped with 24 set of various shape size of punch,stripper,die
2.Max punch regrinding 1.0mm, Max die regrinding life 2.0mm, Max tonnage 6.35tons

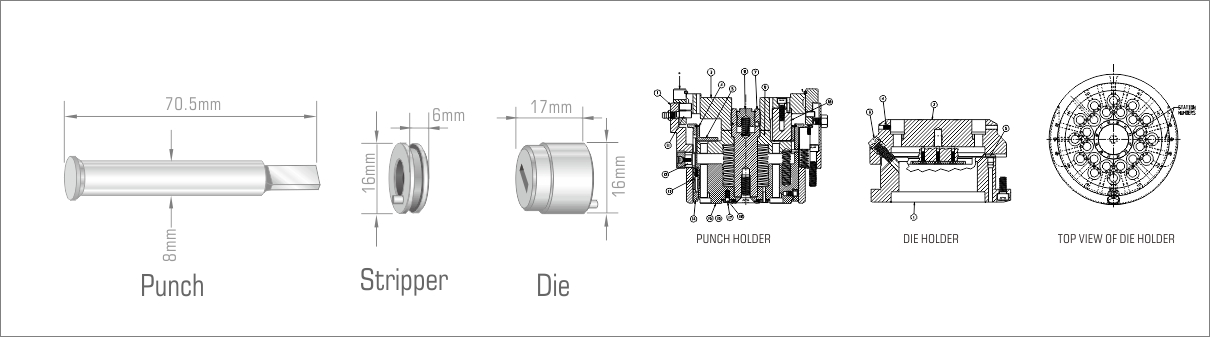

| Part | Punch length | Punch shank Dia. | Stripper height | Stripper OD | Die height | Die OD |
| Dimension | 70.5mm | 8mm | 6mm | 16mm | 17mm | 16mm |

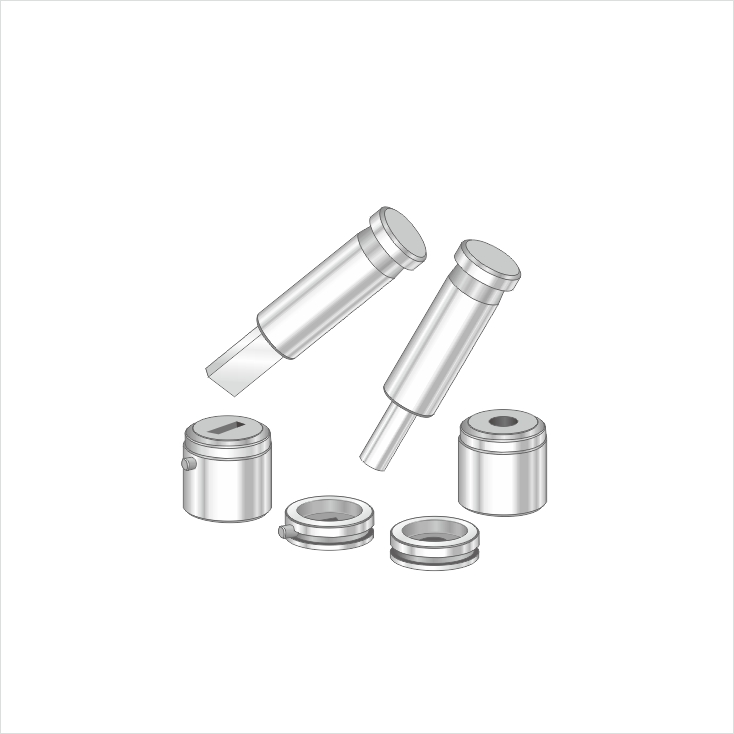

MT16mm
Multi-tool 16 station
1.Equiped with 16 set of various shape size of punch,stripper,die
2.Max punch regrinding 3.5mm, Max die regrinding life 2.0mm, Max tonnage 3.18tons

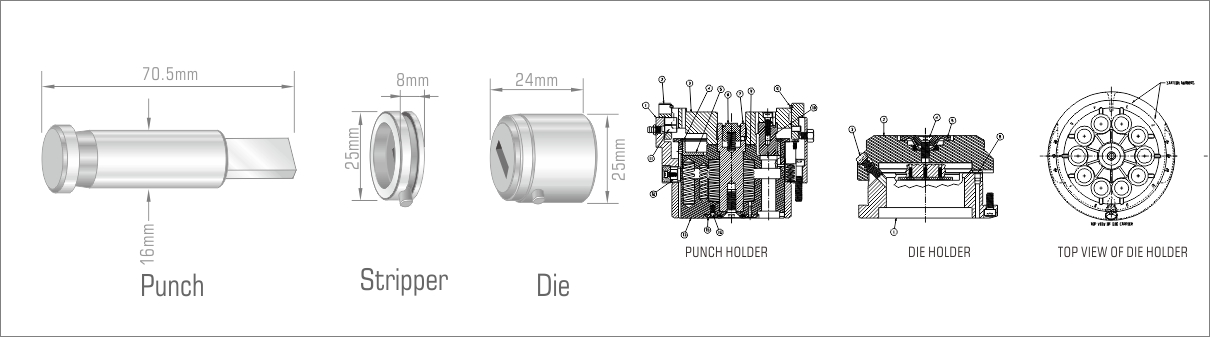

| Part | Punch length | Punch shank Dia. | Stripper height | Stripper OD | Die height | Die OD |
| Dimension | 70.5mm | 16mm | 8mm | 25mm | 24mm | 25mm |

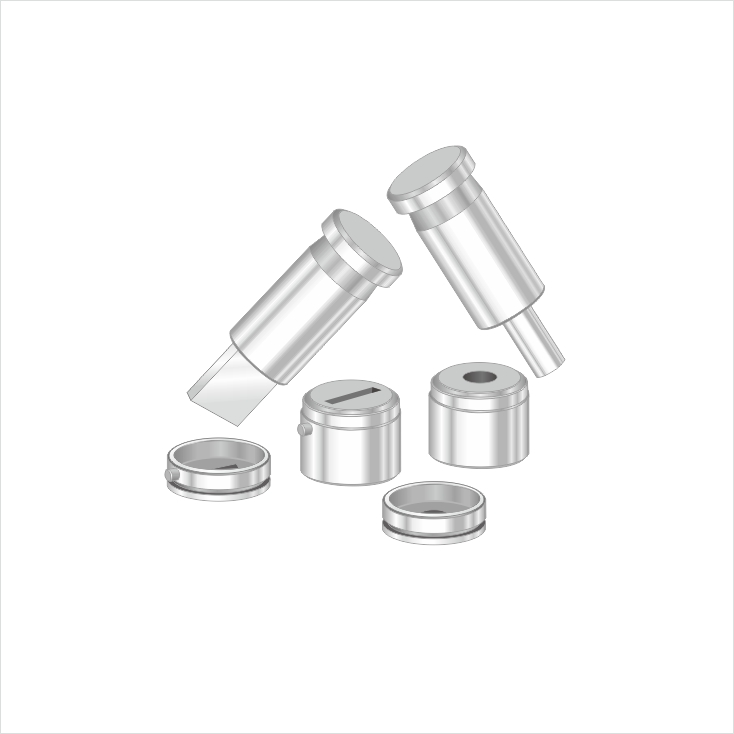

MT24mm
Multi-tool 8 station
1.Equiped with 8 set of various shape size of punch,stripper,die
2.Max punch regrinding 2mm, Max die regrinding life 2.0mm, Max tonnage 6.35tons

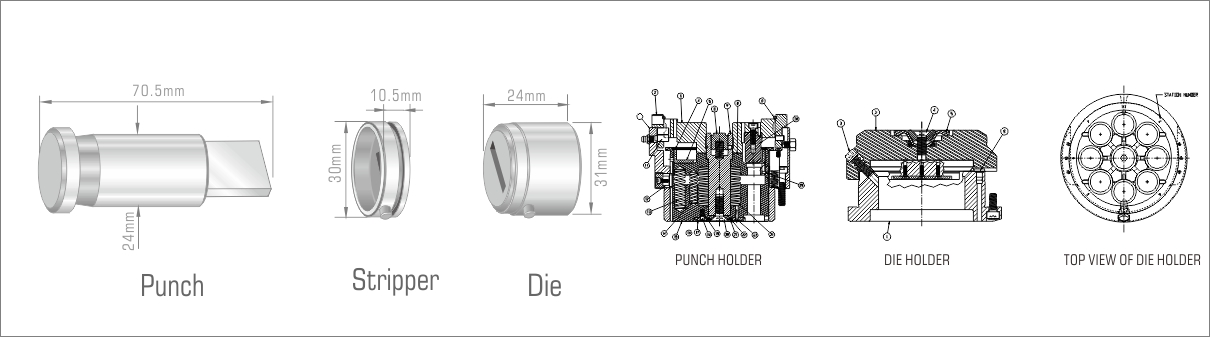

| Part | Punch length | Punch shank Dia. | Stripper height | Stripper OD | Die height | Die OD |
| Dimension | 70.5mm | 24mm | 10.5mm | 30mm | 24mm | 31mm |
