The FAB 90 Type Thick Turret Tooling is a reliable and efficient solution for metalworking operations involving thick materials. This tooling is engineered to provide maximum performance and precision. The 90-degree design of the tooling allows for effective punching and shaping of metal sheets. The components are made from premium-grade materials that offer excellent strength and wear resistance. The FAB 90 Type Thick Turret Tooling is designed to be compatible with a variety of turret punch presses, providing flexibility and ease of use in different production environments.
1. 90-Degree Design Advantage: The 90-degree design of the tooling enables efficient and accurate punching at right angles. This is particularly useful for applications where square or rectangular holes and shapes are required.
2. High Strength and Durability: Constructed from top-quality materials, the FAB 90 Type Thick Turret Tooling can withstand the high forces involved in working with thick metal sheets. It offers long tool life and consistent performance over time.
3. Precision Punching: The tooling is designed to ensure precise punching, resulting in clean and accurate holes. This helps to improve the overall quality of the fabricated parts and reduces the need for additional finishing operations.
4. Efficient Production: With its user-friendly design and quick installation capabilities, the FAB 90 Type Thick Turret Tooling helps to increase production efficiency. It reduces setup times and allows for faster processing of metal sheets.
1. Metal Furniture Production: In the manufacturing of metal furniture, the FAB 90 Type Thick Turret Tooling is used for creating components such as table legs, chair frames, and cabinet parts. Its precision and strength are essential for producing high-quality furniture pieces.
2. HVAC Industry: For the production of heating, ventilation, and air conditioning (HVAC) systems, this tooling is used to fabricate ductwork, brackets, and other metal components. The ability to handle thick materials and achieve accurate punching is crucial in this industry.
3. Metal Enclosure Manufacturing: When manufacturing metal enclosures for electrical and electronic equipment, the FAB 90 Type Thick Turret Tooling ensures the production of strong and secure enclosures. It can create the necessary holes and cutouts with precision, meeting the requirements of this application.

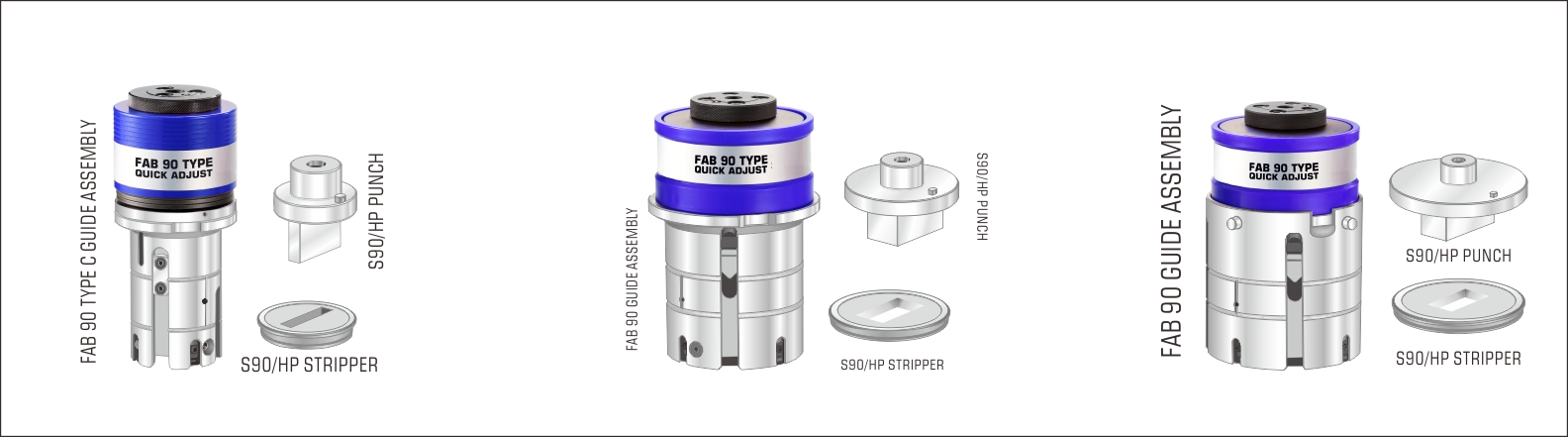

FAB 90 CDE GUIDE ASSEMBLY, quick set for punch body S90/HP type. High performance punch press tooling

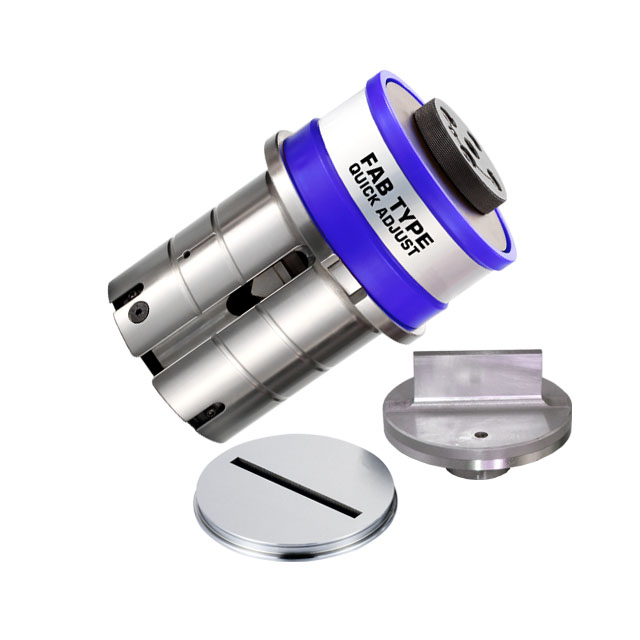

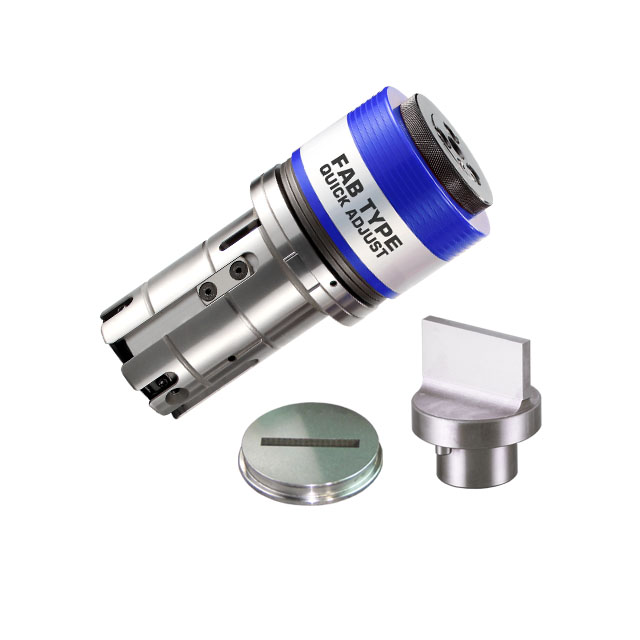

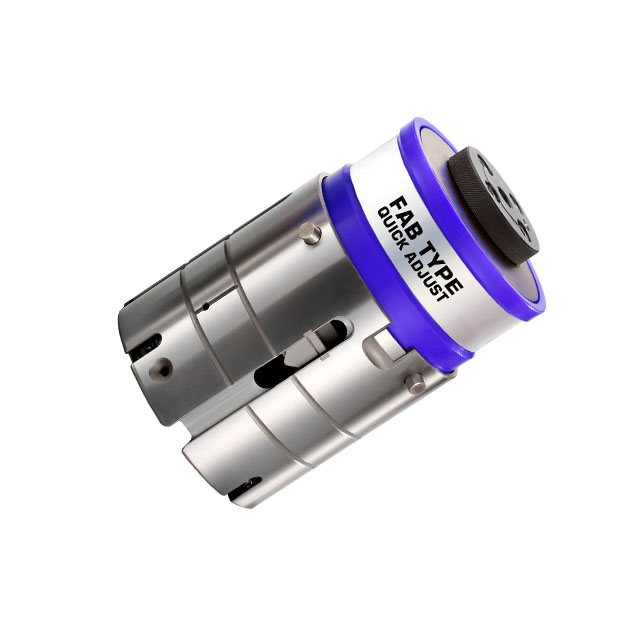

FAB 90 C D E STATION PUNCH SET

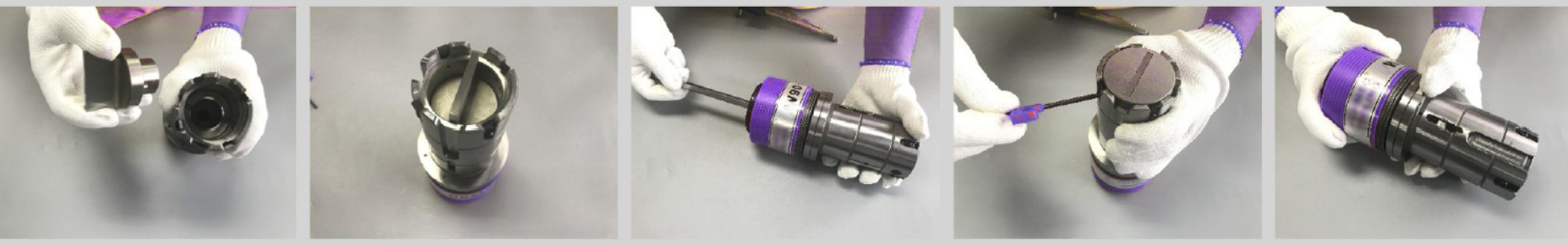

1.Install S90/HP punch 2.Bolts tighten punch body 3.fixs S90/HP stripper by screw besides 4.Push adjusting button,rotate guide to adjust length

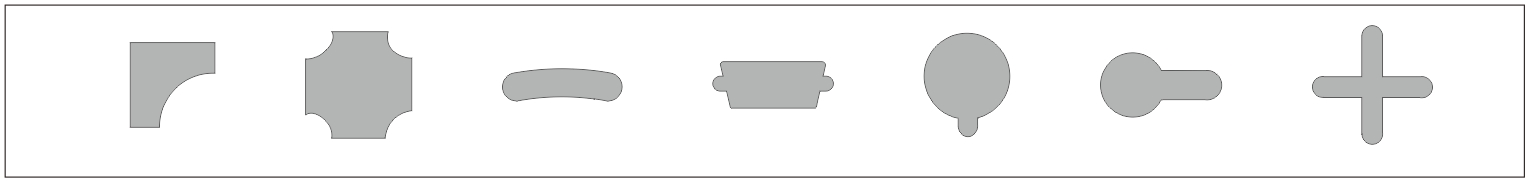

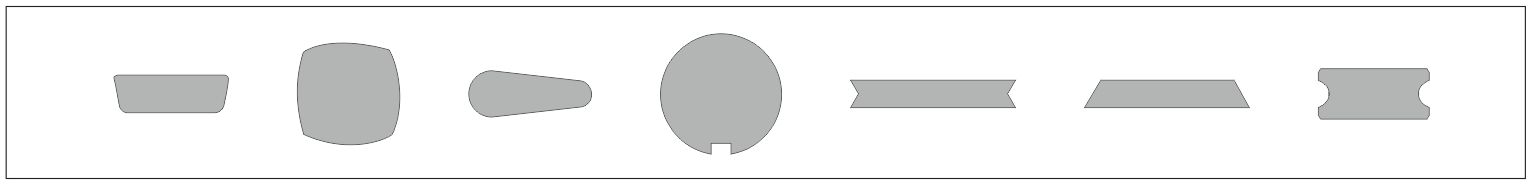

Popular special shape
 | ||||||
| Cable connector | Quad R | Keyhole | Keyway | Drum | Trapezoid | Microjoint |
 | ||||||
| One way | 4-way | Banana | Connector | Keyhole | Keyhole | Cross |
S90 punch body available with TICN,TIN,DLC coating.
TiN (Titanium Nitride)，TiCN (Titanium Carbo-Nitride)，DLC (Diamond-Like Carbon),Punch body coatings are essential for enhancing tool performance, durability, and efficiency. They reduce friction, improve surface finish, and extend tool life, leading to significant cost savings and increased productivity. By selecting the appropriate coating for specific applications, manufacturers can achieve higher quality finished products and reduced downtime
Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | ti slug2 | |
