Multi-Tool of MT8i,Mainly for Nissibo punch machine.
Multi-Tool MT8i is a versatile tool designed for use with Nissibo punch machines. It allows multiple punch and die sets to be placed in a single machine station, expanding the capacity and efficiency of the machine.
MT8i 8 stations 16mm size

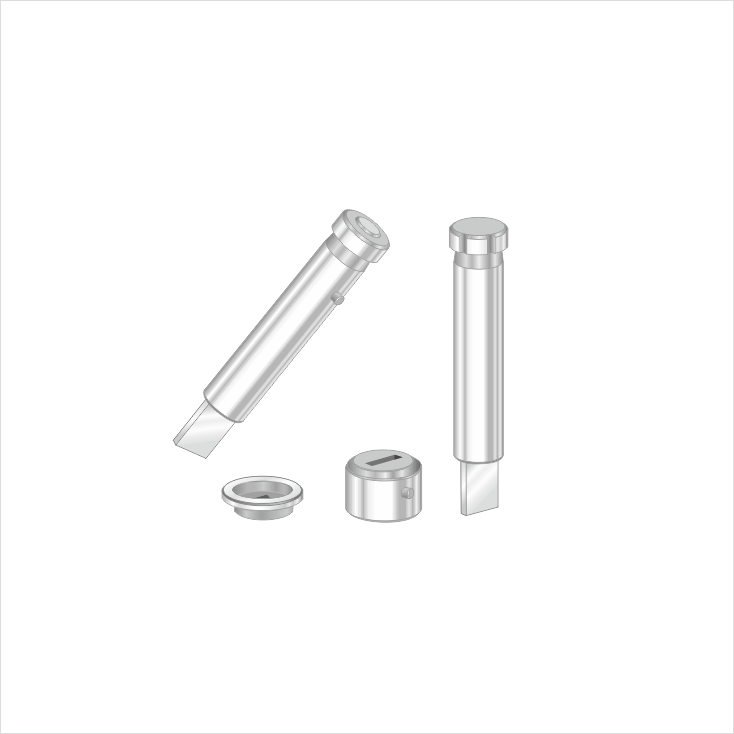

Multi-tool 8 stations
1.8 set of punch stripper die installed in the Multi-tool holder
2.Max.Diameter/Diagnoal 16mm.
3. Punch in M2 material. Die in D2 material

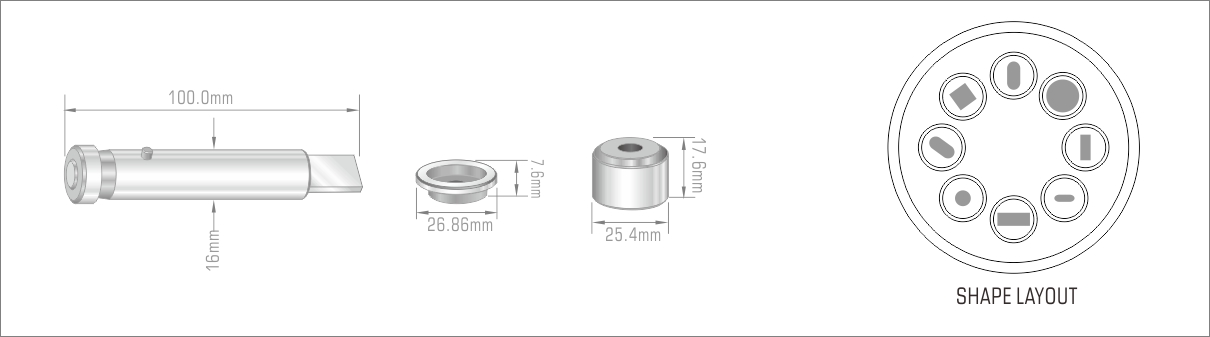

| Part | Punch length | Punch shank Dia. | Stripper height | Stripper OD | Die height | Die OD |
| Dimension | 100mm | 16mm | 7.6mm | 26.86mm | 17.6mm | 25.4mm |

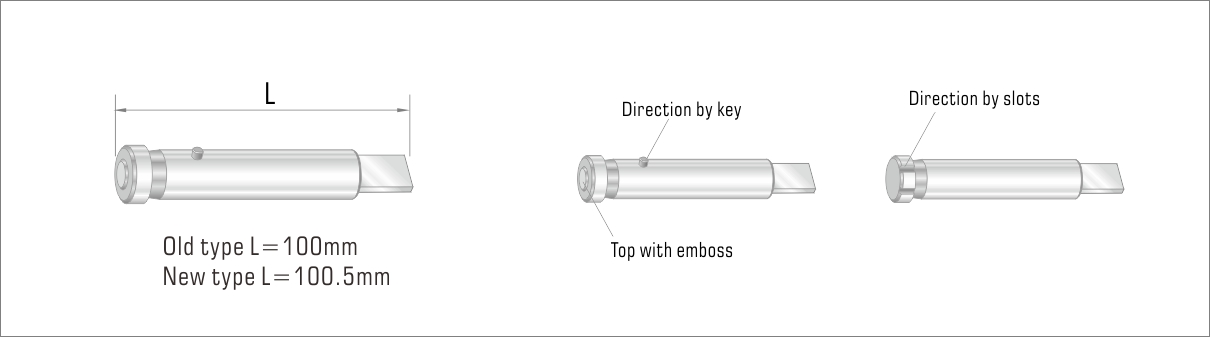

Comparision MT8i new and old type
1.Old type punch length 100mm, New type 100.5mm
2.Old type punch locates by Pin,Top head has emboss. New type position by two slots on head.
Usage Methods
1.Installation:
Ensure the Multi-Tool MT8i is compatible with your Nissibo punch machine.
Install the Multi-Tool MT8i into the designated station on the machine.
Secure the tool using the provided fastening mechanisms.
2.Tool Setup:
Place the punch and die sets into the Multi-Tool MT8i.
Ensure the tools are properly aligned and secured.
Use the machine’s auto-index feature to position the Multi-Tool MT8i correctly.
3.Operation:
The Multi-Tool MT8i allows for multiple angle settings, enhancing its versatility .
The tool remains stationary during station indexing, while the Multi-Tool ram is indexed via the machine’s auto-index feature .
The oil reservoir in the top of the Multi-Tool provides lubrication during operation .
4.Maintenance:
Regularly check the tool for wear and tear.
Clean and lubricate the tool as needed to ensure smooth operation.
Replace worn components promptly to maintain optimal performance.
