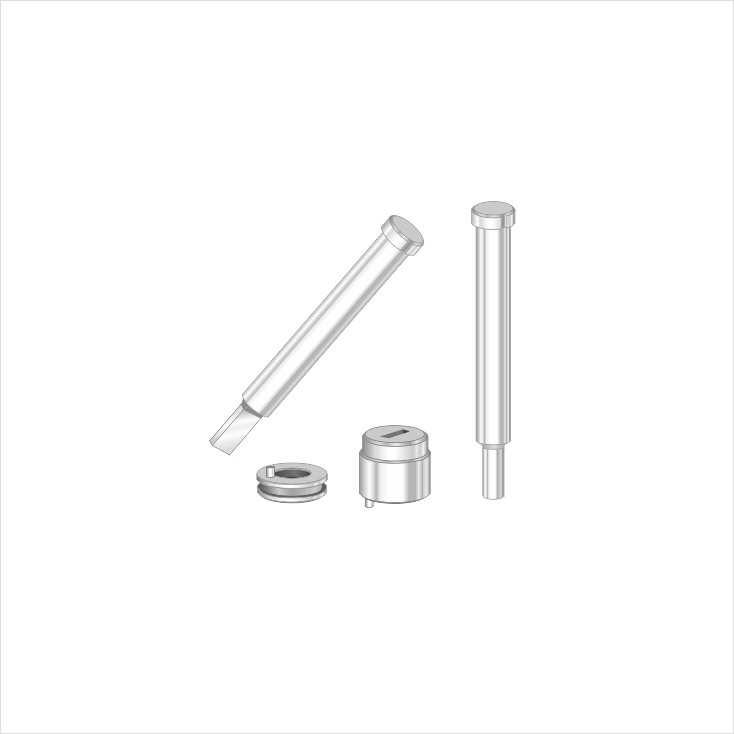

Multi-Tool of MT20i,Mainly for Prima power punch press.

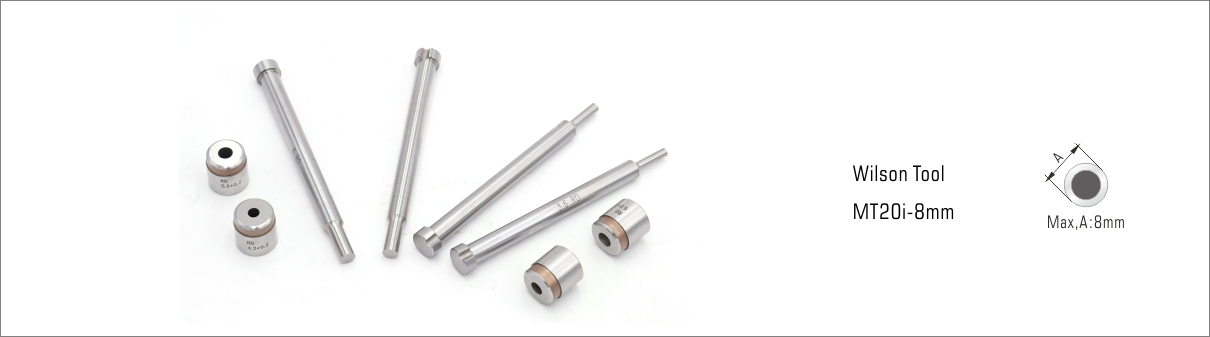

MT20i 20 station 8mm size
Multi-tool 20 station
1.20 set of punch stripper die installed in the Multi-tool holder
2.Max.Diameter/Diagnoal 8mm. Punch Max 5mm of mild steel, 2mm of stainless steel

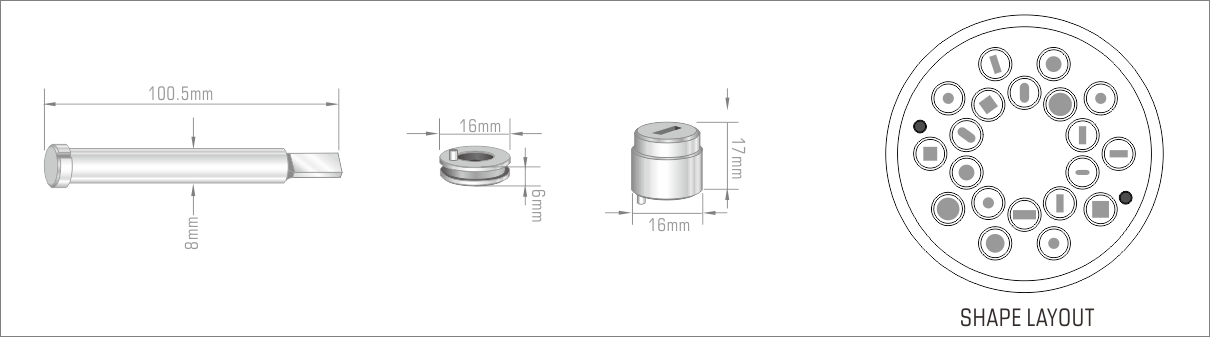

| Part | Punch length | Punch shank Dia. | Stripper height | Stripper OD | Die height | Die OD |
| Dimension | 100.5mm | 8mm | 6mm | 16mm | 17mm | 16mm |
