THICK TURRET MULTI TOOL EUROMAC-XMT12.7mm XMT 24mm

XMT 12.7mm,XMT24mm Multi-Tool installed in MT holder of FMTE 6,FMTE 10 Station for EUROMAC punch press,which equip with index station suitable to multi tool.

MT holder in D station expanded to 6 set of tooling,10 set of tooling

Availability:



Inquire Add to Basket

MULT TOOL MT EUROMAC

Product Description

Multi-Tool XMT 12.7mm,XMT24mm for punch press Euromac Italy. Tooling installed in index D station which multi-tool holder FMTE6,FMTE10 extend set of tooling number 6 or 10

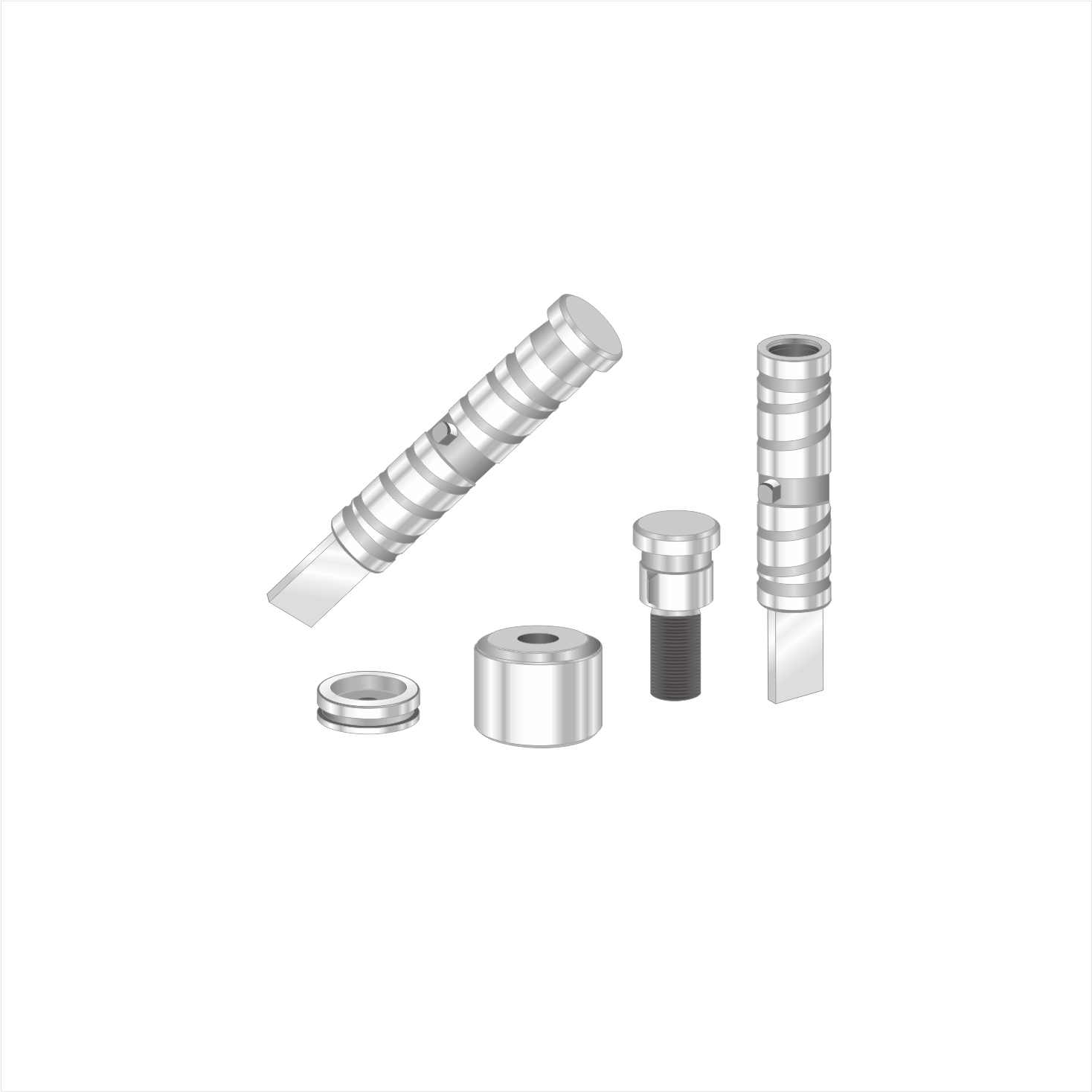

XMT12.7mm-10 STATION

Multi-tool 10 station,which mixed tooling station.

XMT 12.7mm station with 2 set of XMT 6-24mm and 6 sets of XMT 12.7mm punch,stripper,die

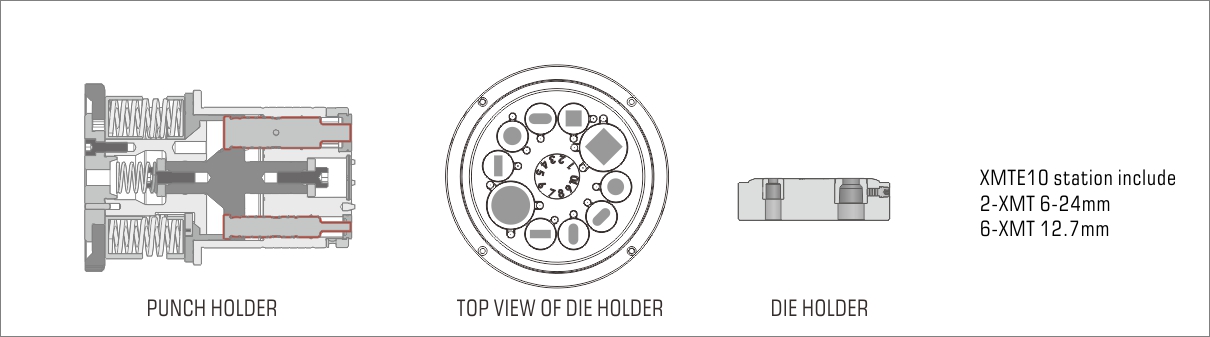

XM12.7mm details

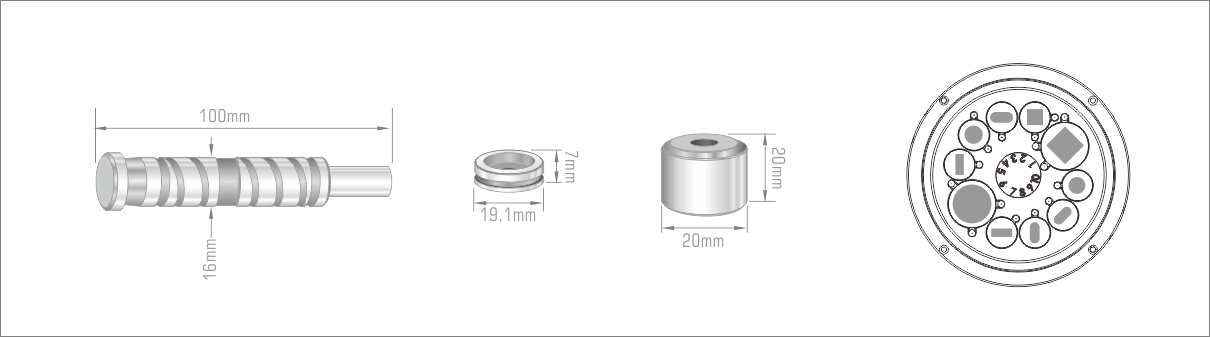

XM12.7mm details1

Part	Punch length	Punch shank Dia.	Stripper height	Stripper OD	Die height	Die OD
Dimension	100mm	16mm	7mm	19.1mm	20mm	20mm

XMTA 12.7mm. punch is adjustable style with punch head. Regrinding life for punch up to 9mm

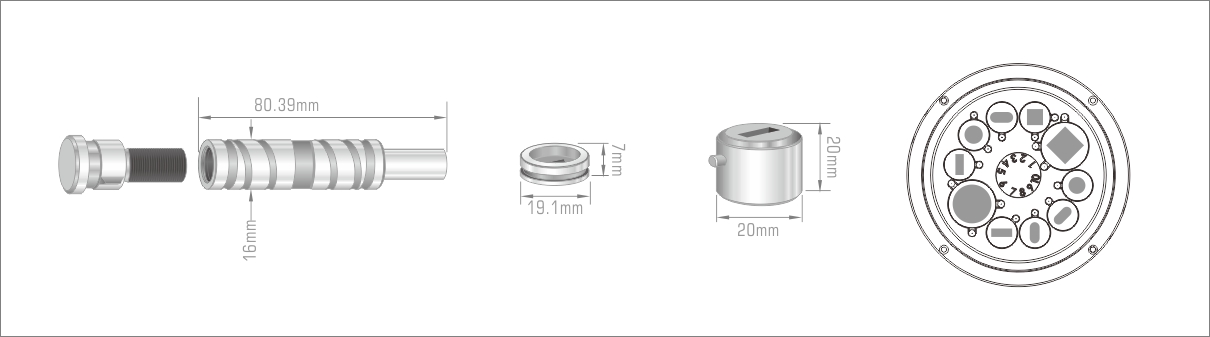

XM12.7mm details2

Part	Punch length	Punch shank Dia.	Stripper height	Stripper OD	Die height	Die OD
Dimension	80.39mm	16mm	7mm	19.1mm	20mm	20mm

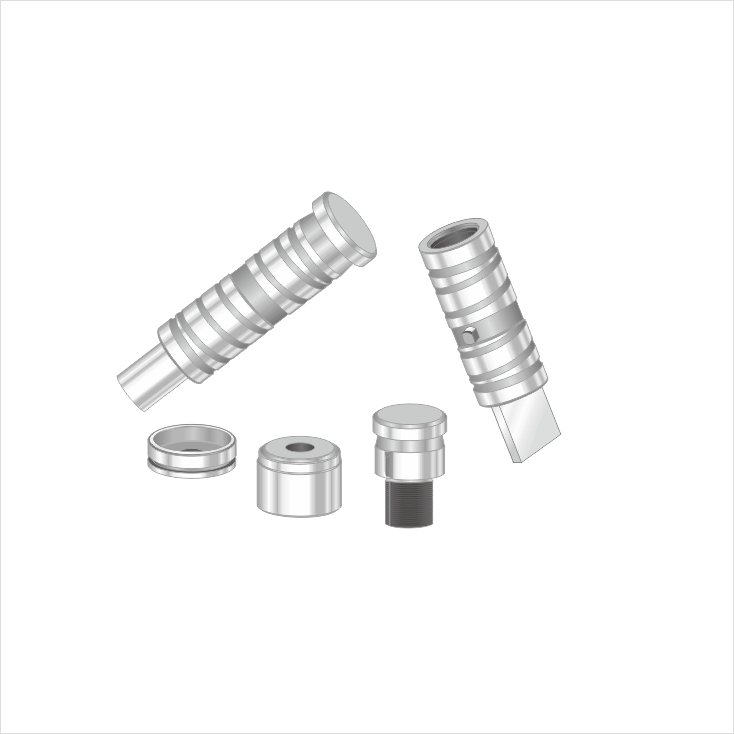

XMT24mm-6 STATION

Multi-tool 6 station

Equiped with 6 set of various shape size of punch,stripper,die in Max.Diameter/Diagonal 24mm

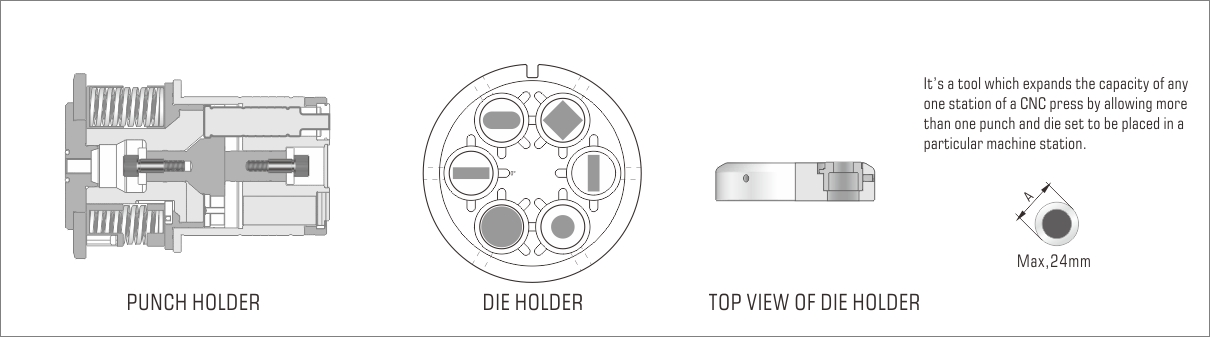

XM24mm details

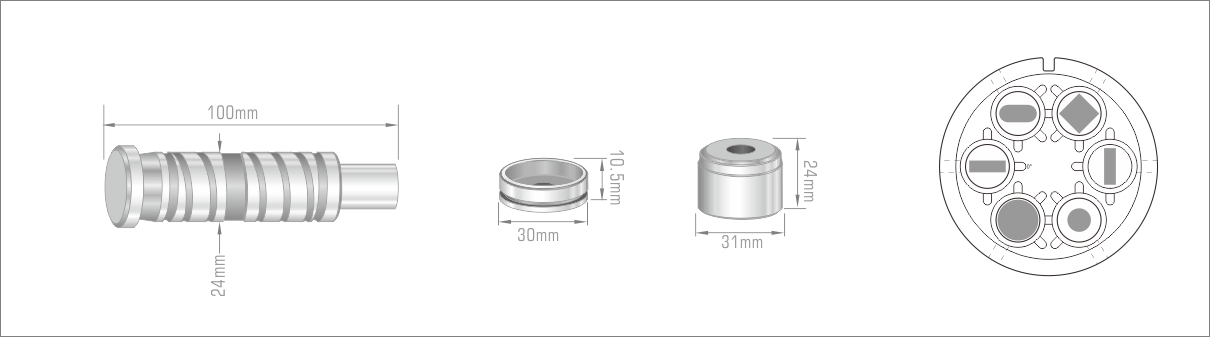

XM24mm details1

Part	Punch length	Punch shank Dia.	Stripper height	Stripper OD	Die height	Die OD
Dimension	100mm	24mm	10.5mm	30mm	24mm	31mm

Adjustable style is available.XMTA 24mm. Solid punch 100mm long=short punch+punch head

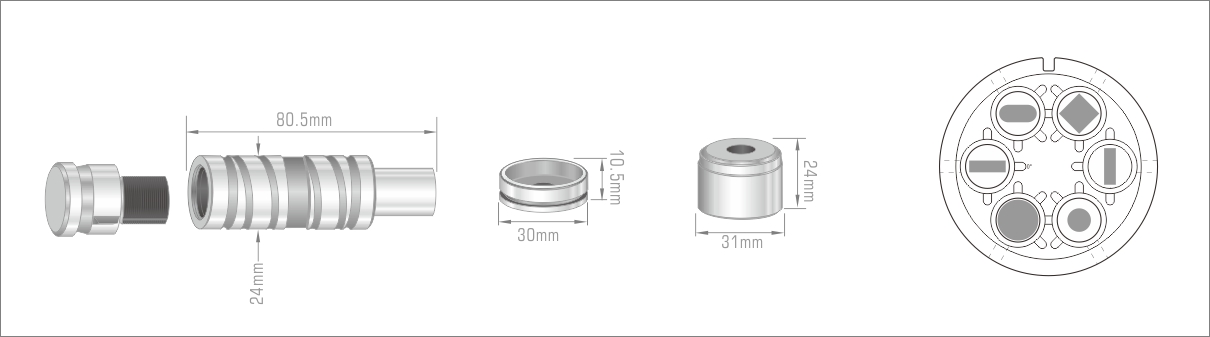

XM24mm details2

Part	Punch length	Punch shank Dia.	Stripper height	Stripper OD	Die height	Die OD
Dimension	80.5mm	24mm	10.5mm	30mm	24mm	31mm

The Euromac XMT Multi Tool is a high-performance tooling system designed specifically for Euromac CNC punch presses.

Its primary function is to expand the capacity of a single machine station, allowing multiple punch and die sets to be used in one holder, which significantly improves machine flexibility and efficiency.

Key Features of the XMT Tooling System:

1.Expanded Capacity: The multi-tool assemblies, such as the XMTE6 (6 stations) or XMTE10 (10 stations), allow you to use numerous smaller tools in a single turret station.

2.Tool Sizes: It commonly uses two main tool sizes:XMT 24mm (maximum diagonal 24mm=0.945inches),XMT 12.7mm (maximum diagonal 12.7mm= 0.500 inches)

3.High-Quality Materials: Punches are typically made from premium high-speed tool steel, designed for long life and exceptional intervals between regrinds.

Adjustable Punch Length: XMTA punches (like the XMTA 12.7A and XMTA 24A) feature an adjustable head that allows the punch length to be set by rotating it. This feature can reportedly triple the grind life compared to non-adjustable designs.
