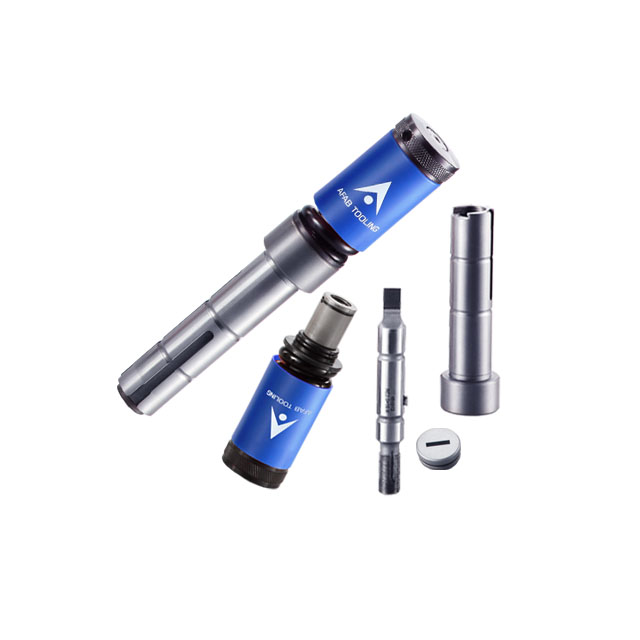

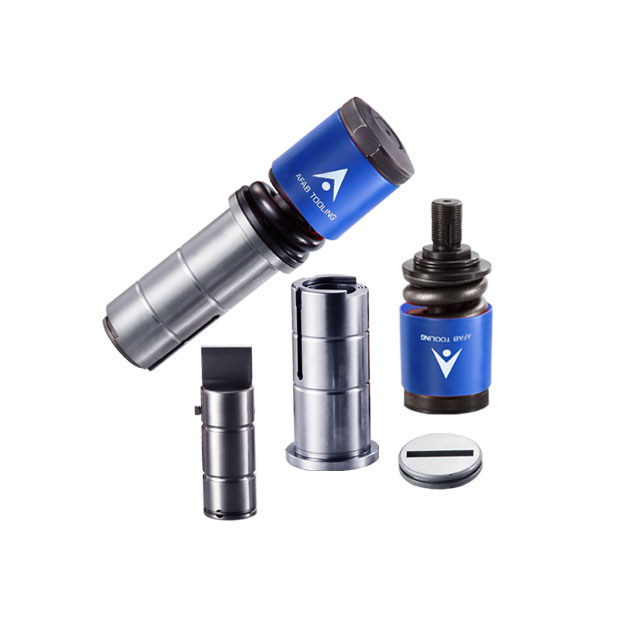

FAB 90 style is High perfomance,longer grinding life.This assembly is known for its durability, quick setup capabilities, and extended tool life, making it a popular choice for manufacturers requiring high-quality punching operations.

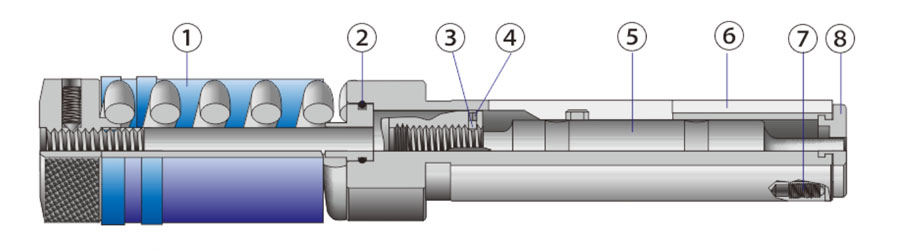

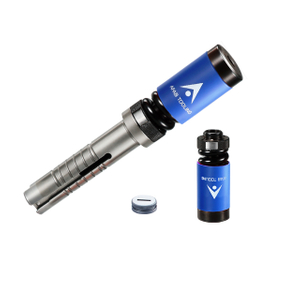

A Station Part name
| Series No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |

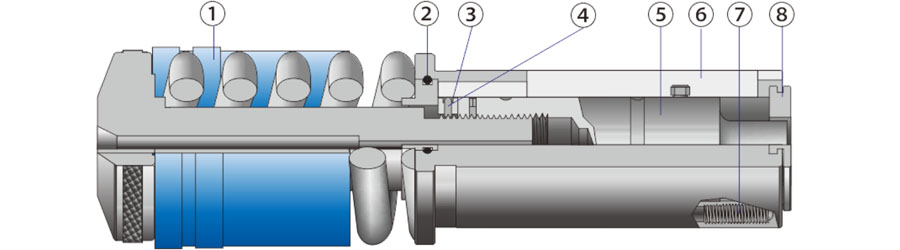

| Part name | Spring pack | O-ring | Pin | Clip ring | Punch body | Guide | Ball plunger | Stripper |

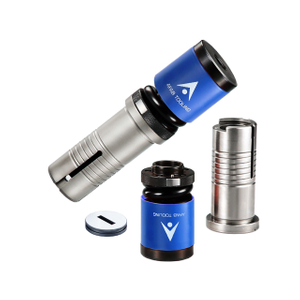

B Station Part name
| Series No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Part name | Spring pack | O-ring | Pin | Clip ring | Punch body | Guide | Ball plunger | Stripper |
FAB 90 AB station Feathures
*. A station Max diameter/diagnonal 12.7mm, B station Max 31.7mm
*. A station Max.Allowable Tonnage:6 Tons, A station Airblow Tonnage: 4.5 tons,
*. B station Max.Allowable Tonnage: 17 tons, B station airblow tonnage: 16 tons.
*. The guide assembly is designed to support an extended grinding life of up to 6-8 mm, reducing the frequency of tool changes and maintenance.
*. Short punch body against Amada std long punch.
*. Ease of Use:The guide assembly is designed for quick disassembly and assembly, requiring no tools for setup. This further reduces downtime and increases efficiency.
*. Increased Productivity:Quick setup and adjustment capabilities allow for faster changeovers and reduced downtime, enhancing overall productivity
*. Compatibility:The FAB 90 AB Station Guide Assembly is fully compatible with major OEMs such as Amada GT7,WILSON S90,HP,MATE MXC, ensuring seamless integration and optimal performance.

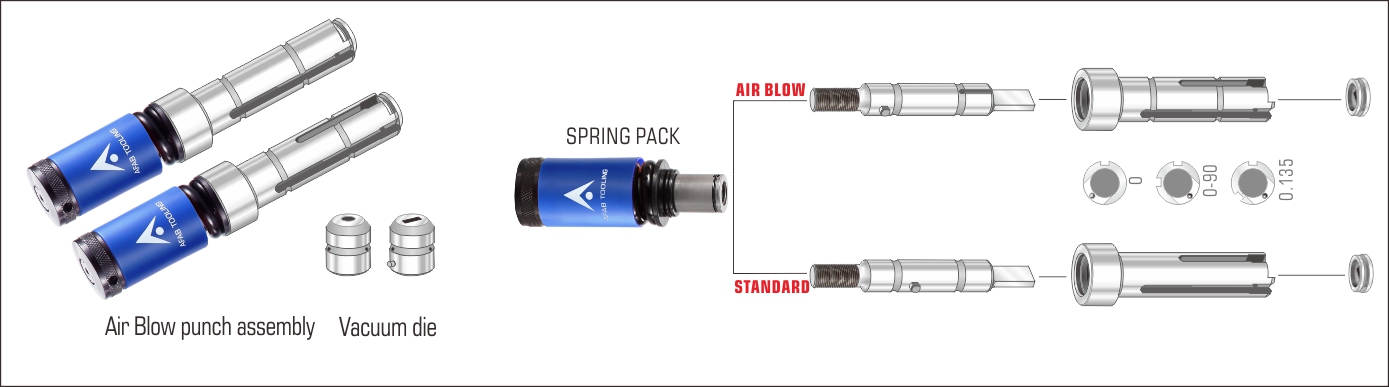

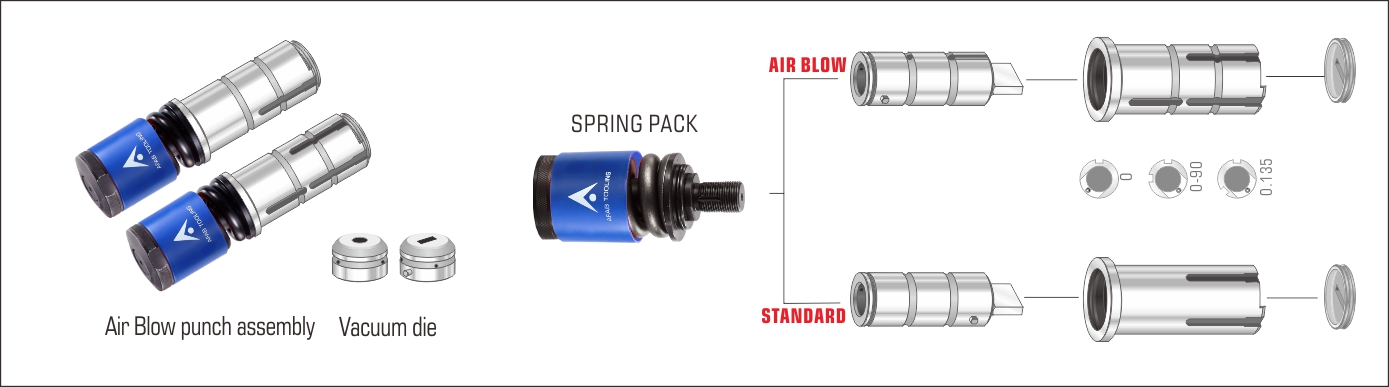

A station comparision with standard style and airblow style
B station comparision with standard style and airblow style

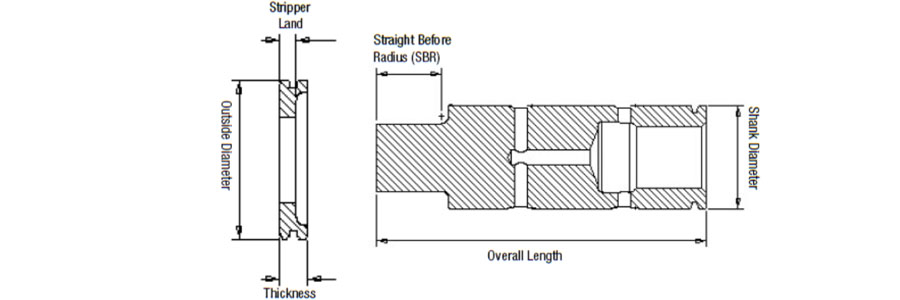

A.B station FAB 90 parameter
| Station | Max punch diagonal | Punch length | Punch shank Dia. | SBR | Stripper OD | Stripper Thickness |
| A | 12.7mm | 117.86mm | 15.85mm | 18.8 | 19.51mm | 6.91mm |
| B | 31.75 | 100.51mm | 31.72mm | 18.8 | 38.02mm | 6.91mm |
FAB 90 Guide slot 0-90 deg on guide, optional 0-135 deg Standard shape and code
S90 punch body available with TICN,TIN,DLC coating.

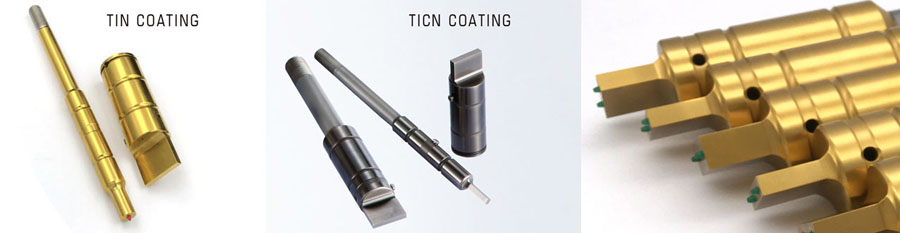

TiN (Titanium Nitride)，TiCN (Titanium Carbo-Nitride)，DLC (Diamond-Like Carbon),Punch body coatings are essential for enhancing tool performance, durability, and efficiency. They reduce friction, improve surface finish, and extend tool life, leading to significant cost savings and increased productivity. By selecting the appropriate coating for specific applications, manufacturers can achieve higher quality finished products and reduced downtime
Punch Tip and Die Type
|
| |||||||||
| Whisper | Rooftop | Invertrooftop | Concave | 4-way | Standard | Positive | Step | Anti slug1 | ti slug2 | |
