Trumpf continous emboss/bead/rib will cause sheet metal distortion, More distortion increase as longer or more wide.
Normally this type tooling without spring inside and alignment ring

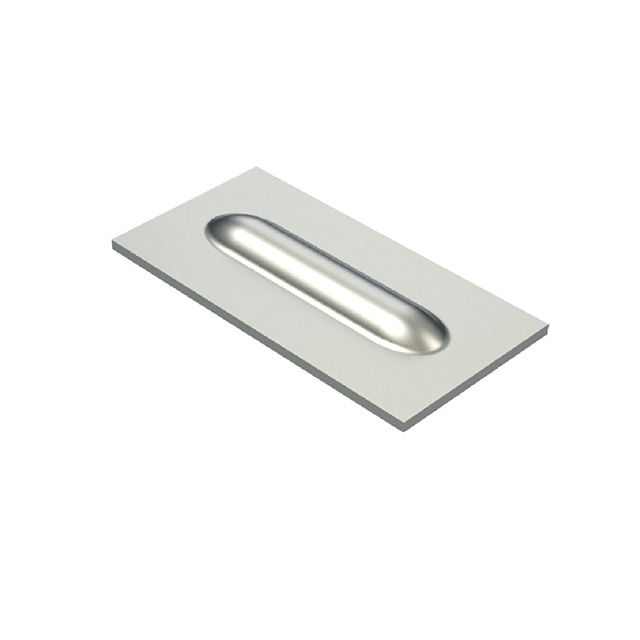

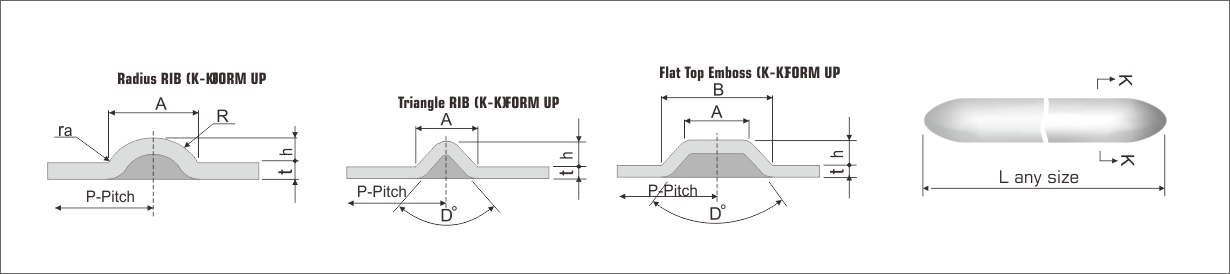

The TRUMPF Nibbling-Style Continuous Emboss tool creates long, reinforced channels (beads) by making a series of closely spaced, overlapping forming strokes. It is primarily used on punching and punch-laser machines to increase the structural rigidity of large sheet metal panels.
Technical Operation

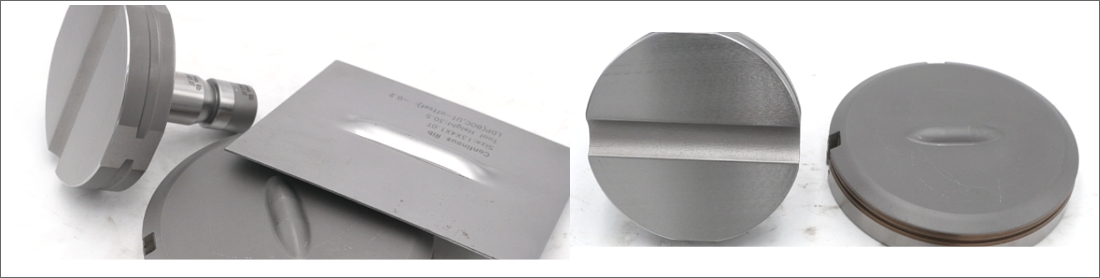

*Unlike a standard punch that cuts through the metal, this tool uses a matching male and female profile that deforms the metal without shearing it.
*Step-by-Step Method: The machine moves the sheet in small increments (the "step length") between each stroke.
*Active Stripper/Presser Foot: Most versions use a spring-loaded presser foot that holds the sheet flat during the stroke to prevent the "banana effect" (bowing) often caused by continuous forming.
*End Caps: The tool often features a "lead-in" and "lead-out" geometry so that the start and end of the long bead are tapered or rounded, providing a professional finish.
Advantages of the Nibbling Type
*Structural Integrity: Creates a deeper, more defined profile than some roller tools, which is essential for heavy-duty stiffening in HVAC, cabinets, or industrial enclosures.
*No Starting Scars: When used with "gradual plunging" parameters, the tool enters the material slowly over several hits, making the start of the bead almost invisible.
*Lower Setup Risk: Roller tools can sometimes "slip" if the sheet is oily; the nibbling tool is a mechanical "form-lock" hit, ensuring consistent depth every time.
*Compatibility: Works on older TRUMPF machines that may not have the specialized software or high-speed "Rolling" license.
Common Use Cases
*Cross-Bracing: Adding "X" patterns to large cabinet doors to stop vibration.
*Drainage Channels: Creating shallow "gutters" in industrial trays.
*Logo/Border Frames: Creating a raised rectangular frame around a laser-cut logo.
