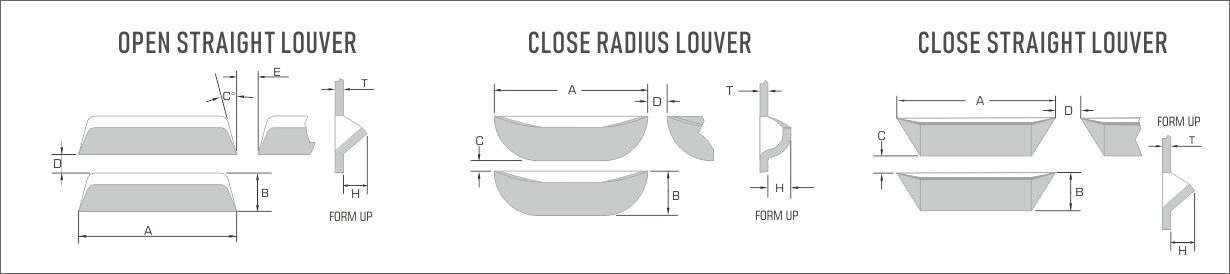

Trumpf louver tool provide air flow or ventilation on sheet metal, We have types includes open straight,close radius,close straight
One tooling gives cutting the sheet and form in the same operation.It is designed for a specific material thickness.

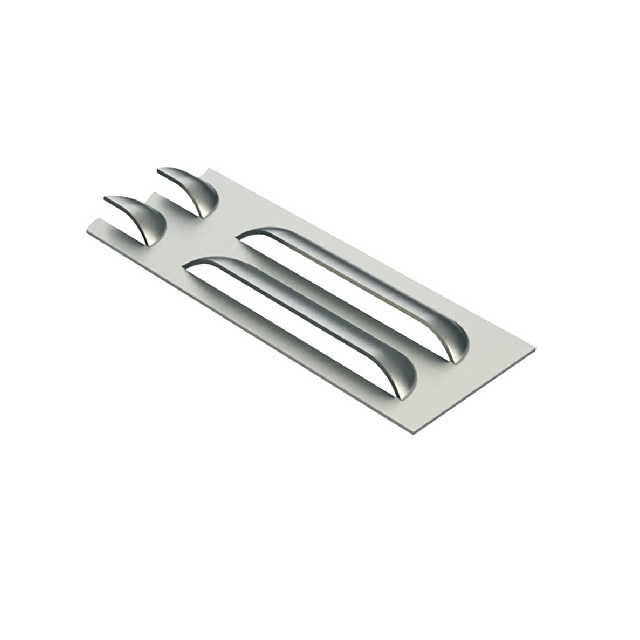

The TRUMPF Style Louver Tool is a highly specific, synchronized forming unit designed to create a partial, angled aperture—a fixed ventilation slat—in the sheet metal. Its design is characterized by an emphasis on clean slitting followed by precise, controlled directional displacement.
Feature:
1.Synchronized Shear and Deflection: This tool is a two-phase operation contained within one stroke. The punch (or upper segment) first executes a confined horizontal slit—a linear, non-concentric cut—and immediately follows this by a calibrated rotational or angular plunge.
2.The Flap Formation: The punch body is geometrically contoured to plastically stretch and deflect the severed segment of material, causing it to pivot away from the sheet plane to form the projecting louver. This projection is achieved within the negative confines of the die cavity, ensuring a uniform flap angle.
3.Integral Ejector System: A hallmark of the TRUMPF style is the positive stripping action necessary for such a complex form. The die typically houses a spring-assisted ejector that ensures the material is fully released from the concave forming surfaces, preventing the sheet from being dragged or catching due to the tight grip of the fresh deformation.
4.Directional Versatility: The tooling is often modular, allowing the operator to quickly adjust the louver's orientation (e.g., changing the direction of the open flap) by simply indexing the tool in the turret or adjusting the keyway alignment, facilitating controlled airflow management across the entire panel.
Application:
The Louver Tool is a dedicated solution for managing thermal dynamics and fluid flow within sheet metal enclosures.
1.Directed Ventilation: Its primary application is creating directional venting slots in equipment chassis, server racks, and protective housings. The fixed, angled flap allows for managed thermal exhaust or ingress
2.protection, shielding internal components from vertically falling debris while still permitting the necessary exchange of air.
3.Acoustic Containment: The specific angles and overlap of the created louvers can also serve as an acoustic baffle, dampening noise radiating from internal machinery while maintaining the required ventilation.
4.Aesthetic and Functional Integration: It provides a method for integrating necessary airflow mechanisms directly into the sheet structure, resulting in a clean, integral, and rivet-free finished product that meets both functional performance and industrial design requirements.
Key Technical Specs to Include
these specific details are essential:Louver Length & Width: (eg 75x15mm)
Maximum Material Thickness: (Usually capped at 2.5 or 3.0mm, depending on the tool size).
Forming Direction: Typically "Form-Up" to avoid interference with the brush table.
Interchangeability: Mention if the inserts (blade and die) are replaceable without buying a new holder.
