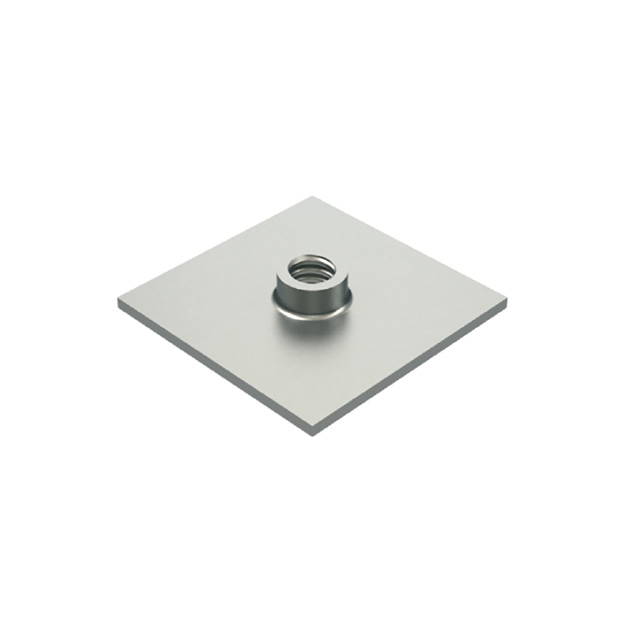

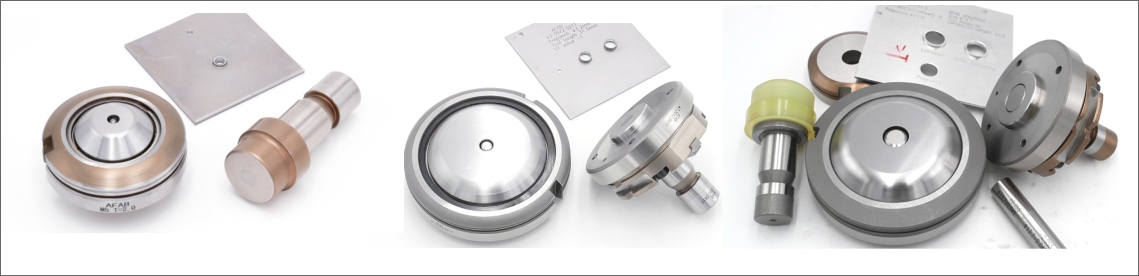

Trumpf Style Extrusion, form up and form down optional, Replacable insert optional too

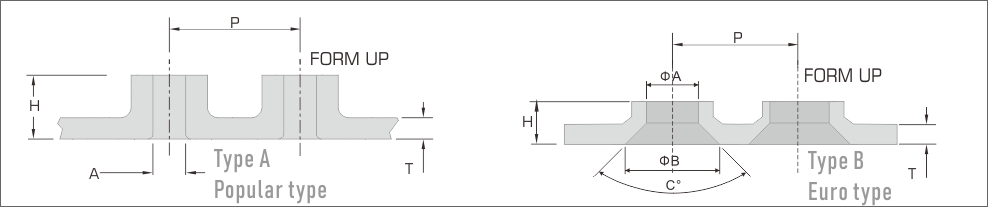

Europe type extrusion available

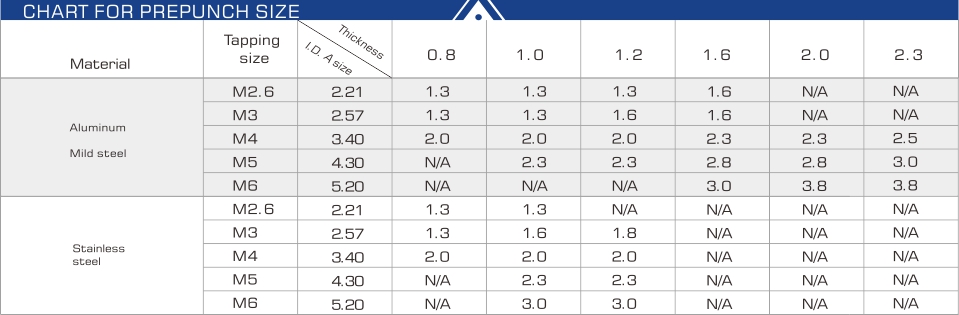

Prepunch size reference
The extrusion tool is a type of forming instrument that enables local deformation of the sheet metal material. Its fundamental purpose is to displace the material around a pre-punched hole, drawing it up and out of the sheet plane to create a strong, raised, hollow feature—the extrusion.
This process is a key enabler of chipless thread creation using a subsequent tapping tool (often on the same machine). By forming the extrusion first, the resulting thread has increased material engagement, leading to higher strength compared to a cut thread.
Applications
The features created by the extrusion tool are vital for:
Fastening: Creating thread bridges or extrusions with tapping (sheet-metal threads) for secure, permanent connections.
Structural Elements: Used in applications like creating features for card guides, cable management, or other elements that require an elevated, load-bearing surface.
In essence, the extrusion tool transforms the punching machine from a 2D cutter into a flexible 3D forming center, expanding the diversity of sophisticated components that can be manufactured cost-effectively.
