114 Tooling System is the Original Equipment Manufacturer's standard tooling series

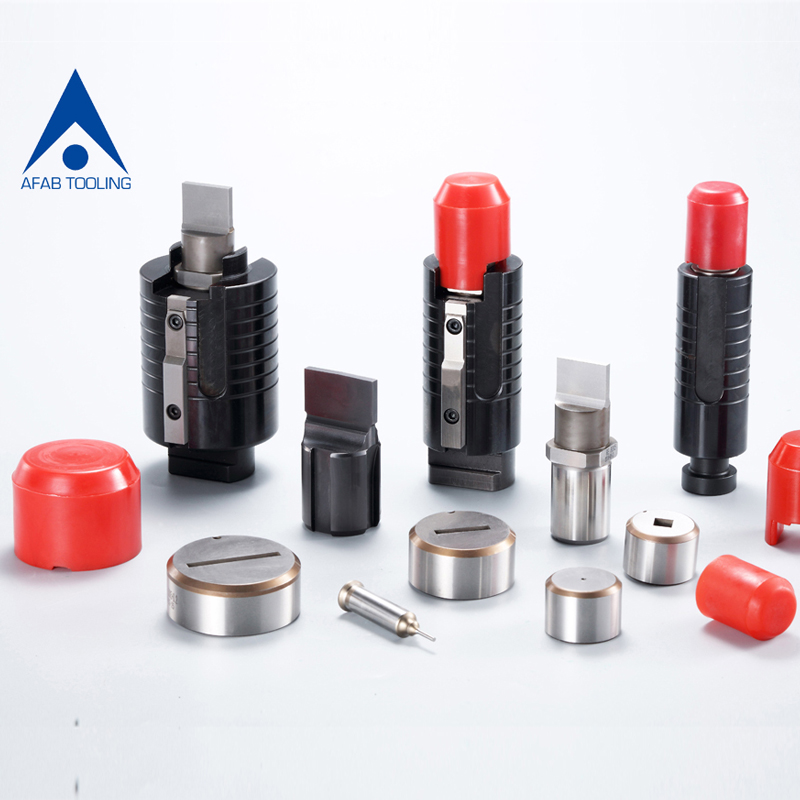

114 Tooling include holder,punch,urethane stripper,die
Show tooling instructure as below
AFAB supply holders for below machine model
C3000, C3500, FL1544, M1250, M2033, M2034, M2044,M2044EZ, M2044TC, M2044TS, M2044UT, M2048, M2048HL, M2048HYB, M2048LT, M2048ST, M2048TE, M2048TS, M2048UT, M2125, M2125HYB, M2544, M2544TS, M2548, M2548TS, M2558, M2558HL, M2558HYB, M2558TS ,M3048TG, M3058TG, M5000, M5000HYB, V3000, V3000α, V3046α, V3046β, V3056α, V5000, V5058, W4560
114 Tooling Punches made by high-quality tool steel and precision machining process. Various station from A to J.
The 114 Type Die with std taper,slugfree and anti slug,slughugger taper
We choosed the best quality urethane plasic to make 114 series stripper.
When you order,please pay attention shape location.
Single shear,Rooftop,4-concave are optional for 114 punches
Product Operate Guide
Installing turret punch tooling involves inspecting and cleaning tools, applying motor oil, loading dies and punches into the turret bores, ensuring proper keying, and adjusting punch length. Always check for any damage or debris before installation to prevent tool wear and machine damage.
