Salvagnini tooling products are tailored to work seamlessly with Salvagnini's advanced machinery, including

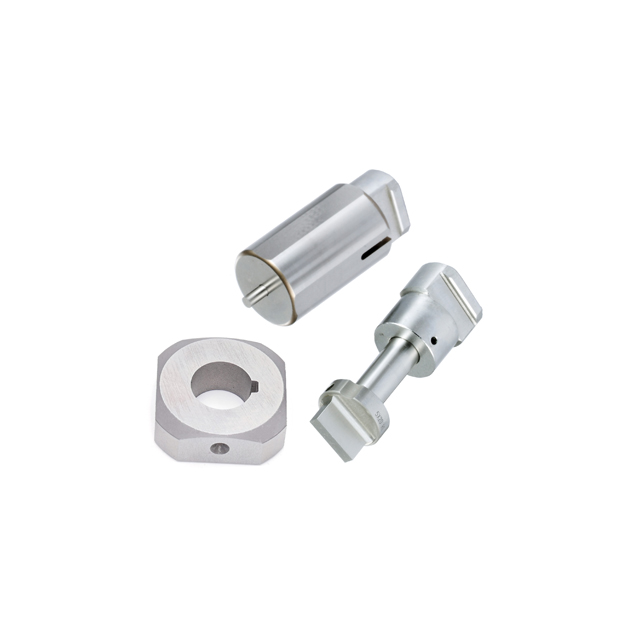

punching machines, panel benders, and press brakes.High-speed steel punches for various hole sizes and
shapes, designed to work with Salvagnini's punching machines
Available in the following station sizes
| POSITION | TYPE | STATION | MAX SIZE | REMARK |
| 1-20,41-76 7 tons | P0 | 33mm | 10mm | Fully Guided |
| P3 | 33mm | 26mm | 90° Rotation | |
| 30-35 12tons | P5 | 60mm | 42.5mm | Continous Ro. |
| S6 | 60mm | 60mm | 180° Rotation | |
| 1-20,41-76 7 tons | P9 | 33mm | 26.5mm | Fully Guided |
| S4 | 33mm | 33mm | 90° Rotation | |
| 21-24 26tons | S8 | 70x90 | 70x90mm | Type70 |

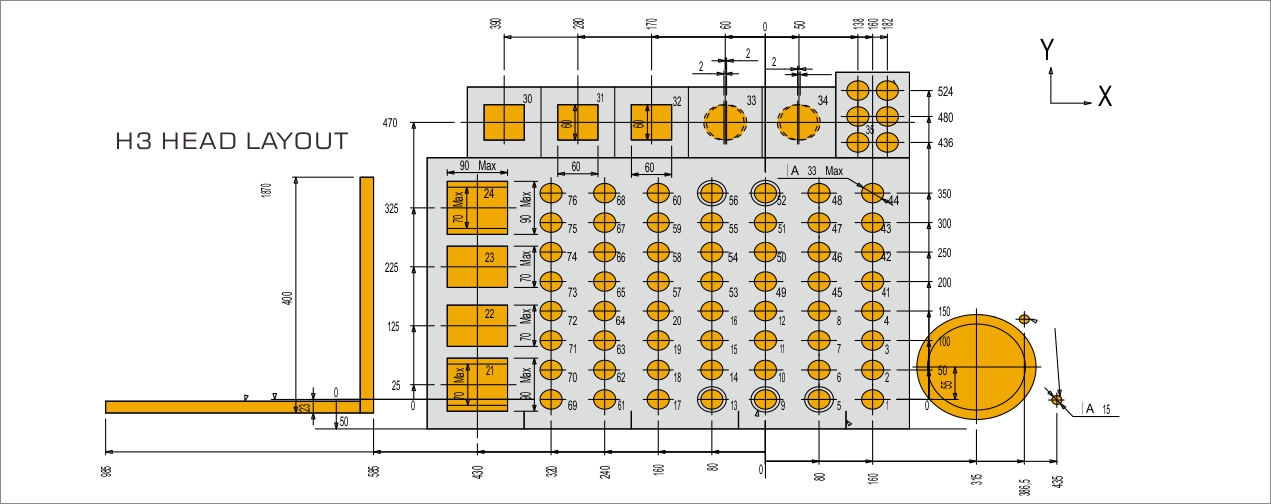

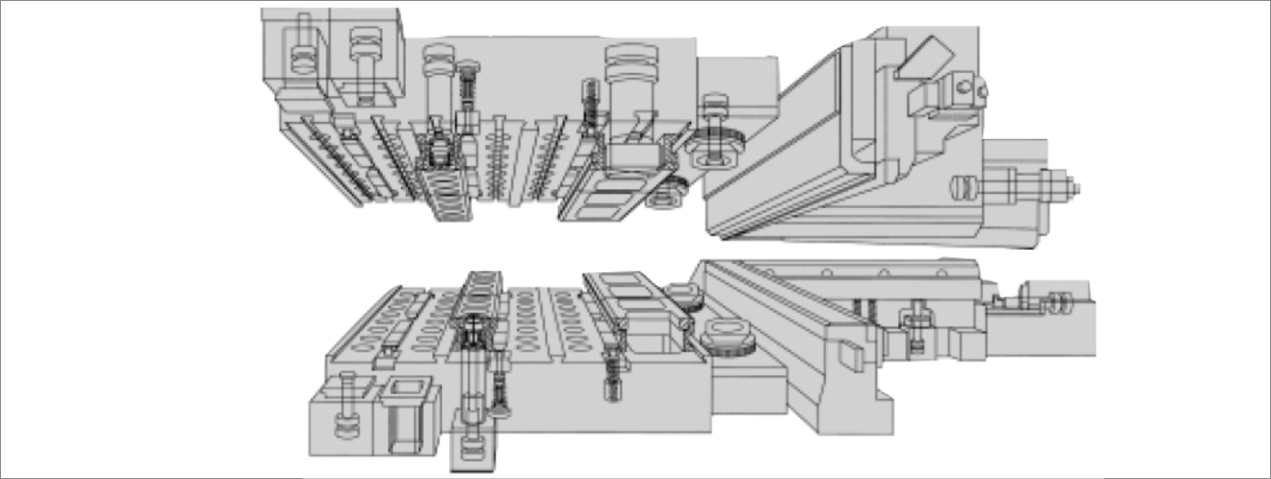

The tooling install holders as below Punch Head Unit
The P series style include P0,P3,P5,P9 System

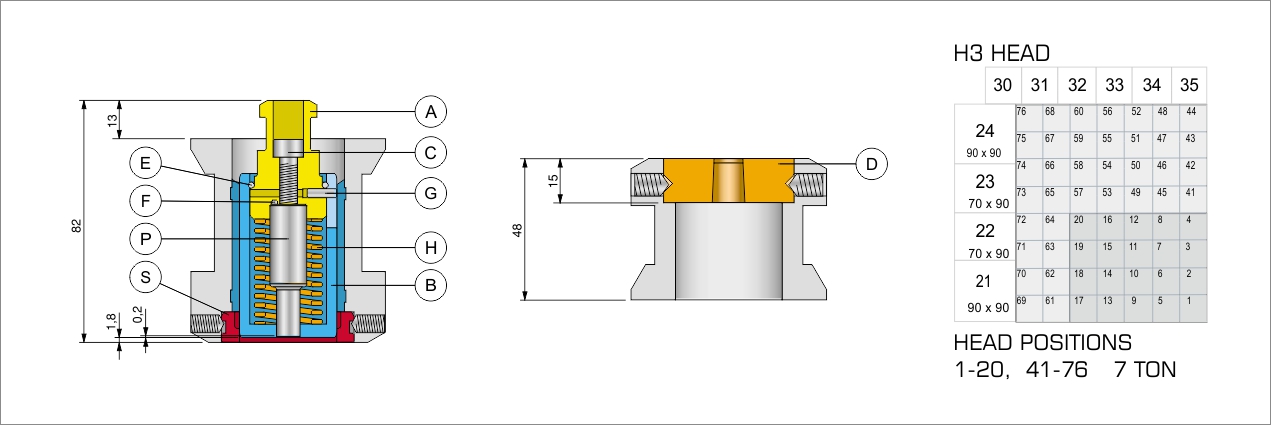

The P0 system design with insert idea
*Max size:10mm, Max tonnage: 70KN
*Material thickness to punch: 0.5mm--3.5mm
*Punch Length: 42mm, Die Length:15mm
*Punch Grinding life: 1.5mm
*Die Grinding life:1.2mm

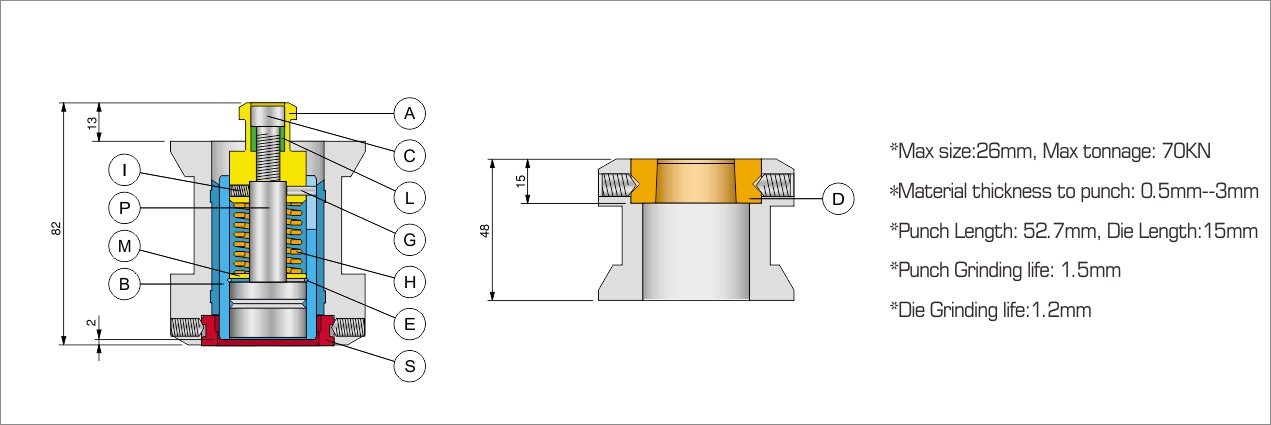

The salvagnini P3 system
*Max size:26mm, Max tonnage: 70KN
*Material thickness to punch: 0.5mm--3mm
*Punch Length: 52.7mm, Die Length:15mm
*Punch Grinding life: 1.5mm
*Die Grinding life:1.2mm
The salvagnini P5 system
*Max size:42.4mm, Max tonnage: 120KN
*Material thickness to punch: 0.5--3mm
*Punch Length: 43mm, Die Length:18mm
*Punch Grinding life: 1.5mm
*Die Grinding life:1.2mm

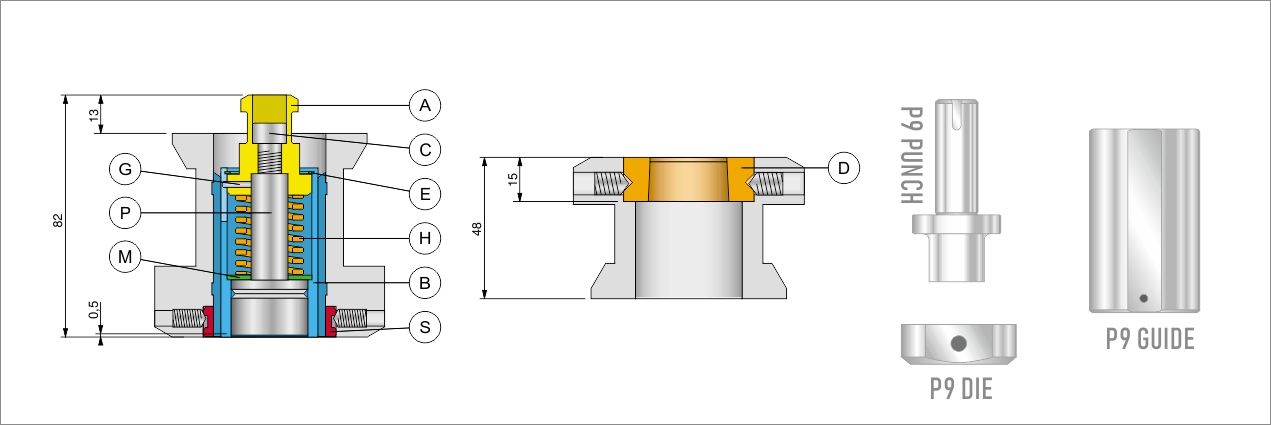

The salvagnini P9 system
*Max size:26.5mm, Max tonnage: 70KN
*Material thickness to punch: 0.5--3mm
*Punch Length: 52.7mm, Die Length:15mm
*Punch Grinding life: 1.5mm
*Die Grinding life:1.2mm
