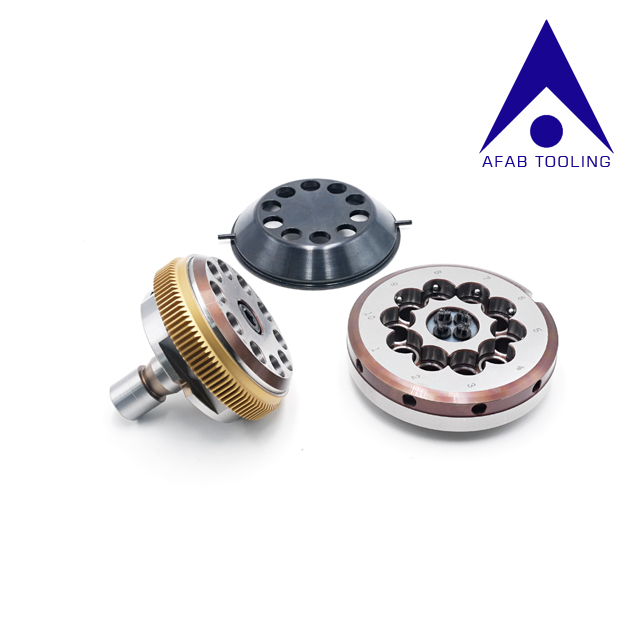

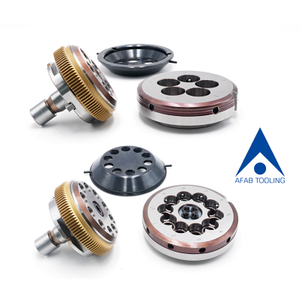

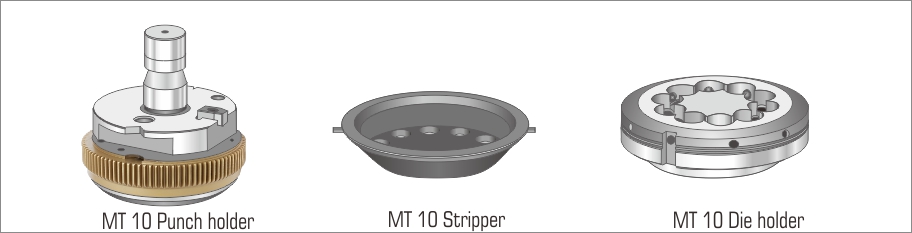

The Trumpf Multi Tool 10 station. MT10 include punch holder,stripper and die holder.
FOR MACHINE GROUP I,Max size 10.5mm
(TRUPUNCH1000, 2000,2020,3000,5000 TRUMATIC3000, 6000, 7000)

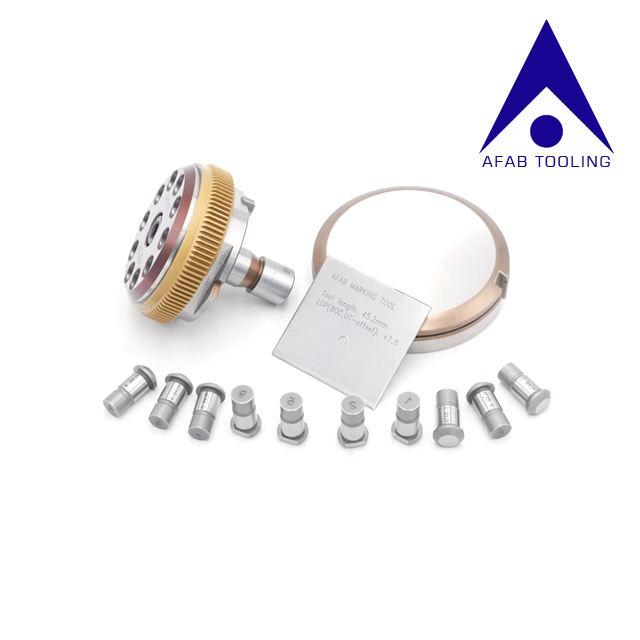

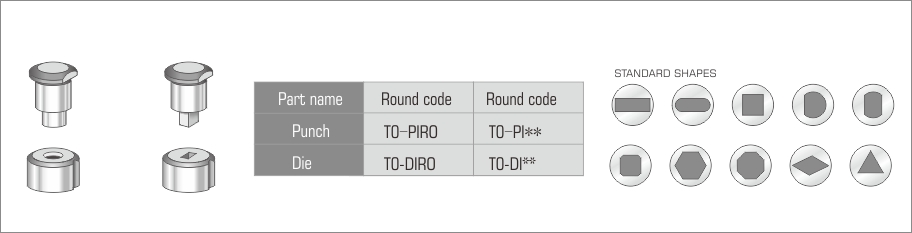

MT10 punch insert and die insert
Punch for materal:Mild Steel / Aluminum 4.5mm,Stainless Steel3mm
Max Diameter/Diagonal 10.5mm
TRUMPF MT10 PUNCH HOLDER STRUCTURE
①Punch driver ②Insert plate ③Yellow gear ④Key ⑤Screw for key
⑥Socket screw ⑦Round Pin ⑧Bolt for plate ⑨Lubrication ball ⑩Punch insert

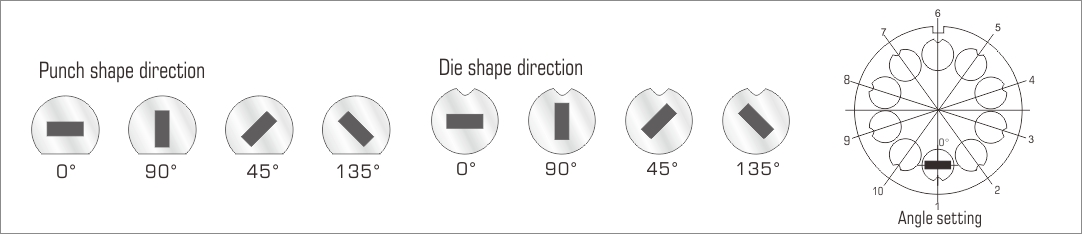

Trumpf MT10 direction for punch die
