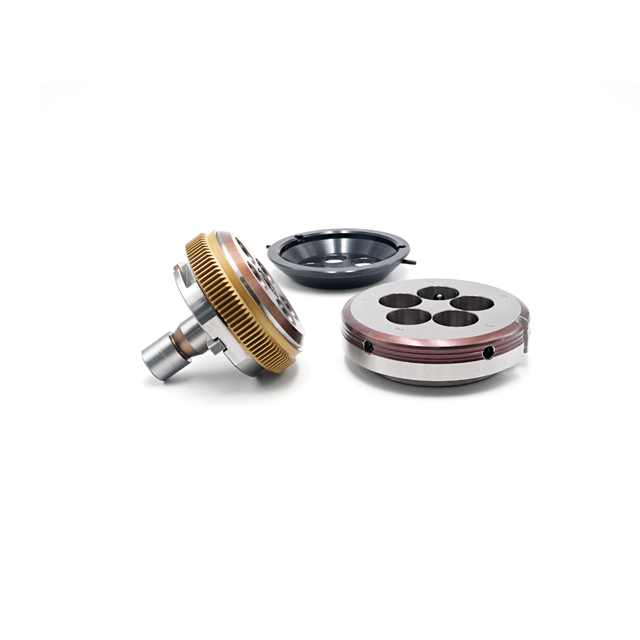

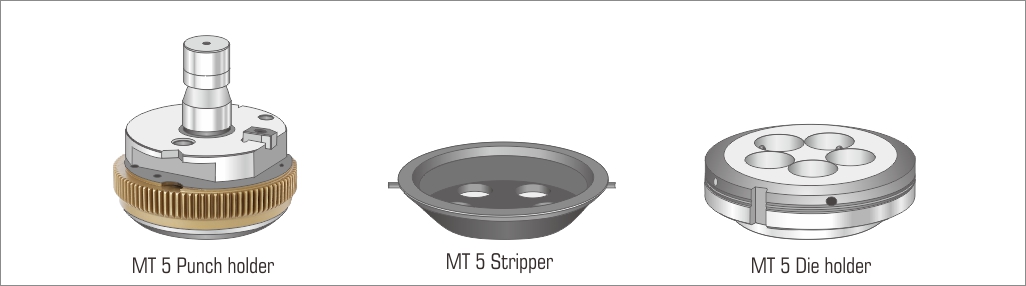

The Trumpf Multi Tool 5 station. MT5 include punch holder,stripper and die holder.
FOR MACHINE GROUP I(DIMENSION 1,00 MM - 16,00 MM)
(TRUPUNCH1000, 2000,2020,3000,5000 TRUMATIC3000, 6000, 7000)

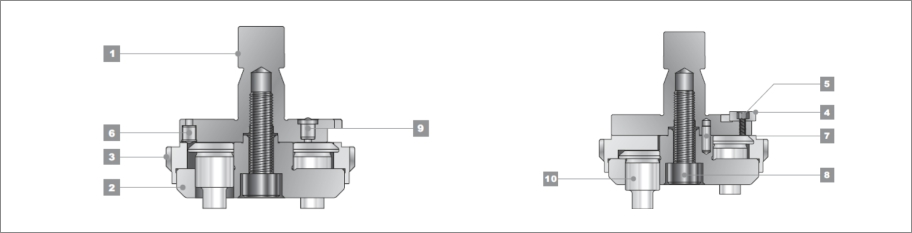

TRUMPF MT5 PUNCH HOLDER STRUCTURE
①Punch driver ②Insert plate ③Yellow gear ④Key ⑤Screw for key
⑥Socket screw ⑦Round Pin ⑧Bolt for plate ⑨Lubrication ball ⑩Punch insert
TRUMPF MT5 Features
1.More tools on the machine is increased with 5 set of shape size in one tool adapter
2.Save time for setup and change
3.Considerable increase in productivity for small punches
4.Die inserts can be reground one at a time
5.The gear rim with special TIN coating,Strengthen gear ring.
6.Grinding life for punch die: 1.5mm

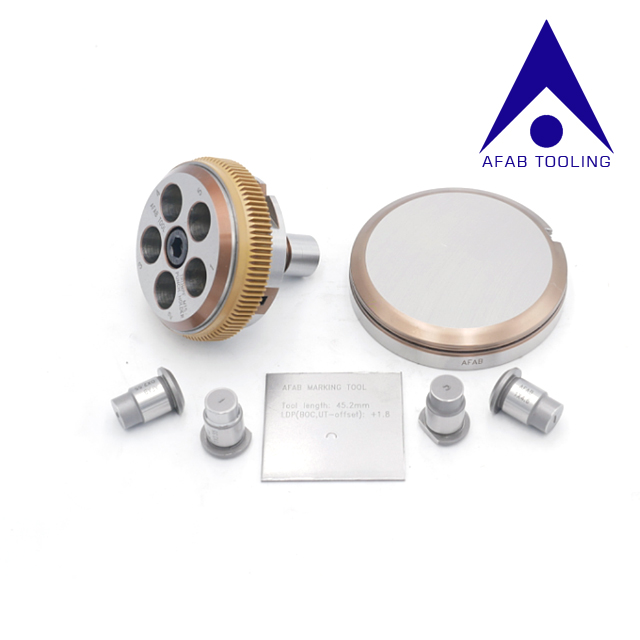

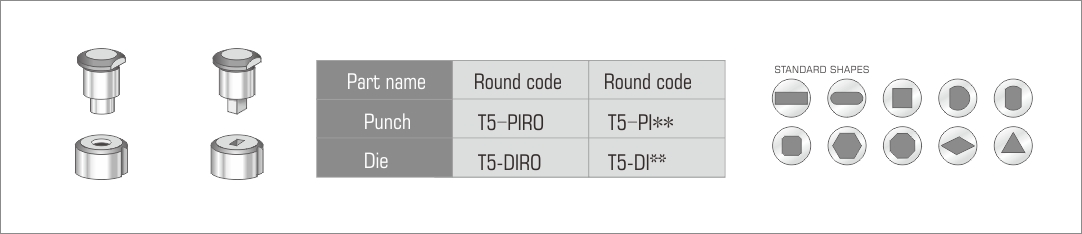

MT5 punch insert and die insert
Punch for materal:Mild Steel / Aluminum4.5mm,Stainless Steel3mm
Max Diameter/Diagonal 16.0mm
